Mitsubishi Multi-Zone 36000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+18K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, delivering up to 36,000 BTUs of cooling and 41,000 BTUs of heating, making it perfect for both residential and light commercial applications. Paired with two SVZ-AP18NL Ducted Air Handlers, each capable of handling 18,000 BTUs, this bundle ensures optimal climate control across multiple zones. The PAC-LMA30BC 3-Port Branch Box facilitates seamless connections between the condenser and air handlers, ensuring balanced refrigerant flow and efficient operation. Together, these components provide a versatile and effective solution for customized comfort.

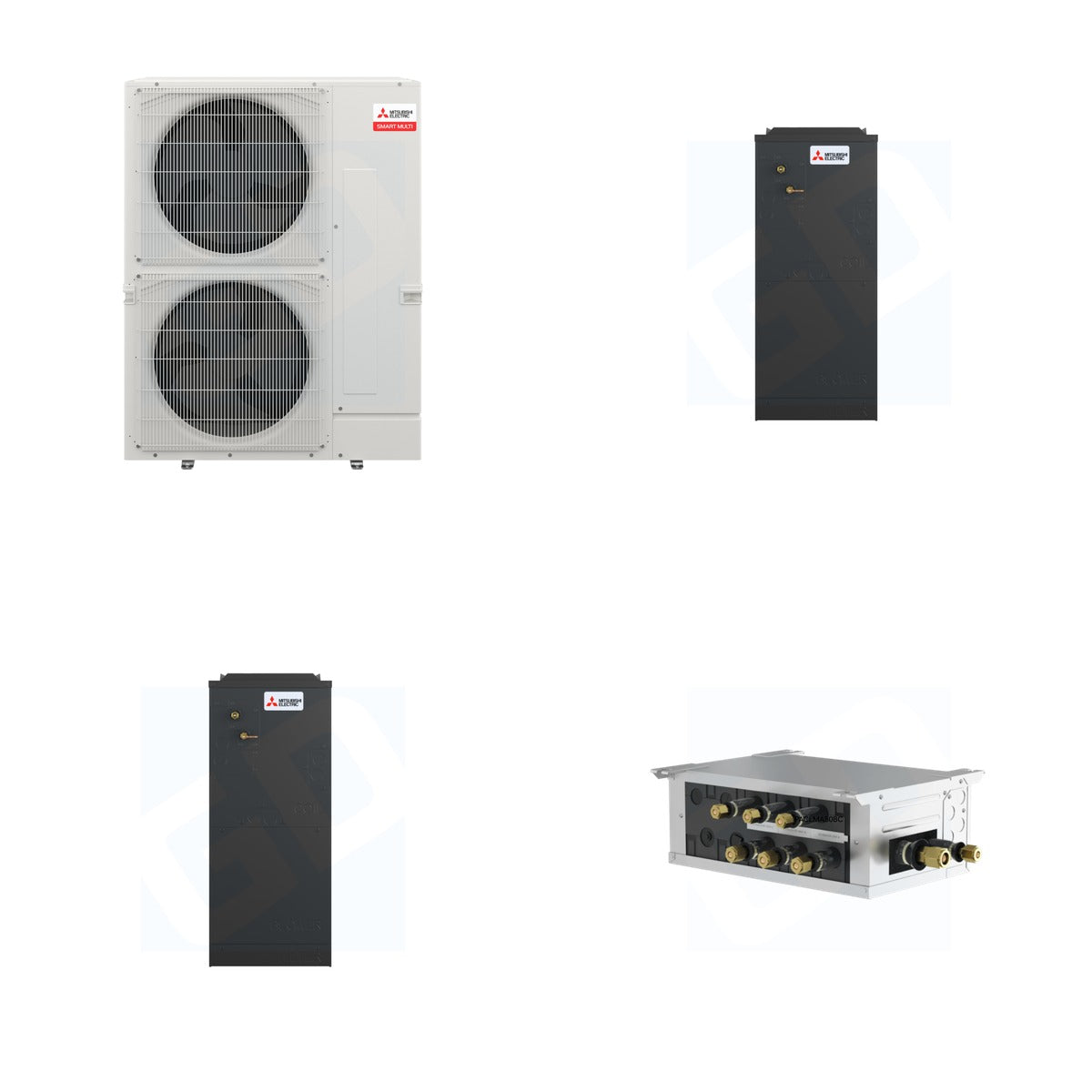

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

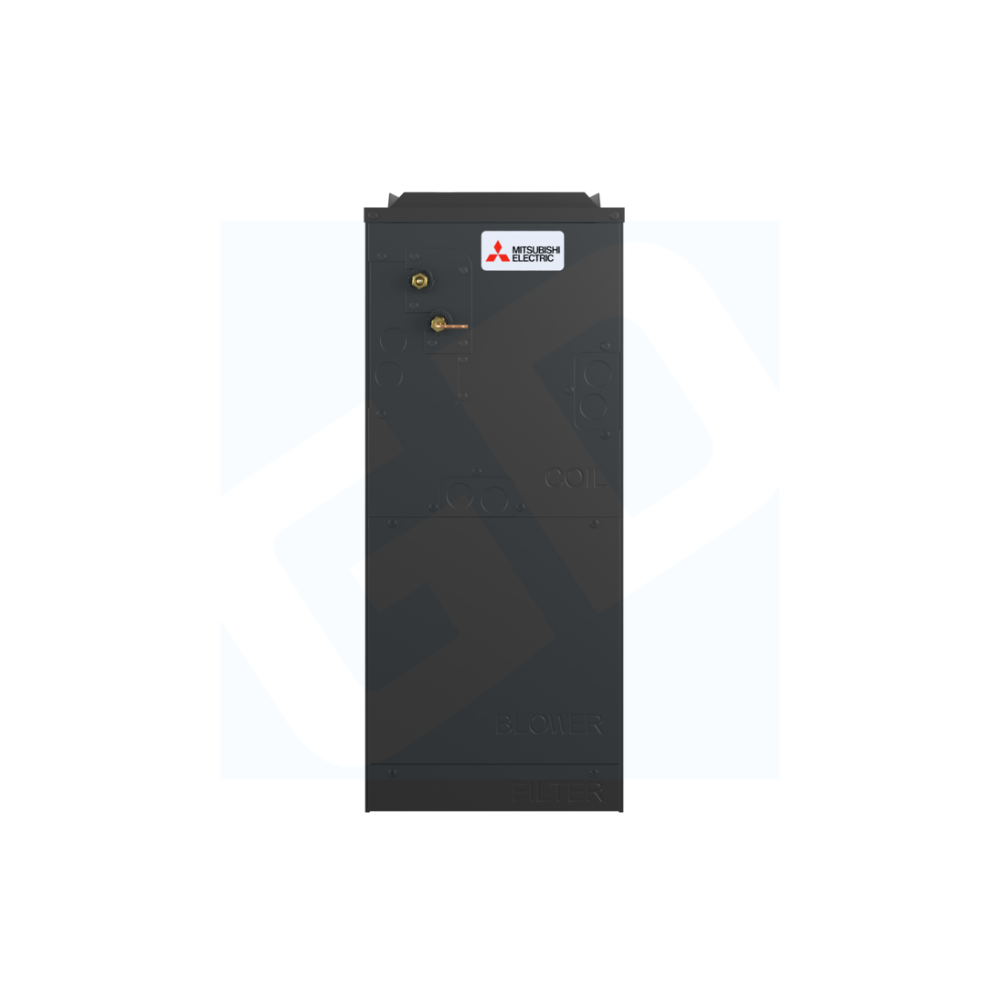

• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 374 lb (Mitsubishi 161 lb + Mitsubishi 208 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Air Handler Capacity: 18,000 BTU (SVZ-AP18NL)
• SEER2: 23 (MXZ-SM36NL), 16.2 (SVZ-AP18NL)
• Refrigerant Type: R454B
• Number of Zones: Up to 4 (with branch box) or 11 (without) (MXZ-SM36NL)
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SVZ-AP18NL): 17 x 21-5/8 x 39-13/16
• Branch Box Dimensions: 17-3/4 x 11-1/16 x 6-3/4

Use & Compatibility

This bundle is designed for residential and light commercial applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SVZ-AP18NL air handlers are suitable for both horizontal and vertical installations. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making it an ideal choice for multi-zone setups.
