Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized climate control across multiple zones, making it ideal for homes or offices with varying temperature needs. The included SEZ-AD09NL and SEZ-AD18NL concealed duct indoor units seamlessly integrate into your space, ensuring quiet operation while delivering optimal comfort. The PAC-LMA30BC branch box enhances the system's capabilities by connecting multiple indoor units, ensuring balanced refrigerant flow and efficient operation.

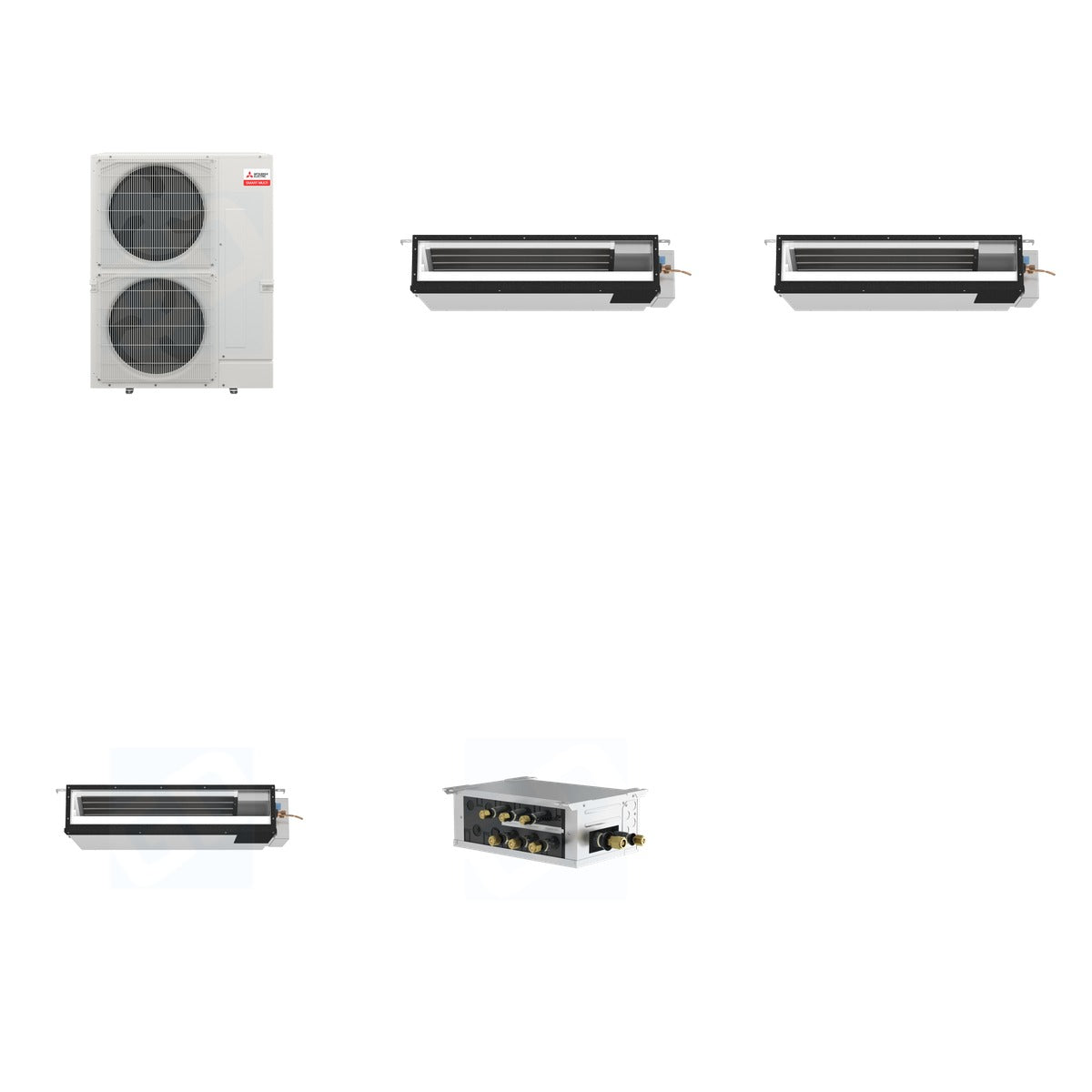

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

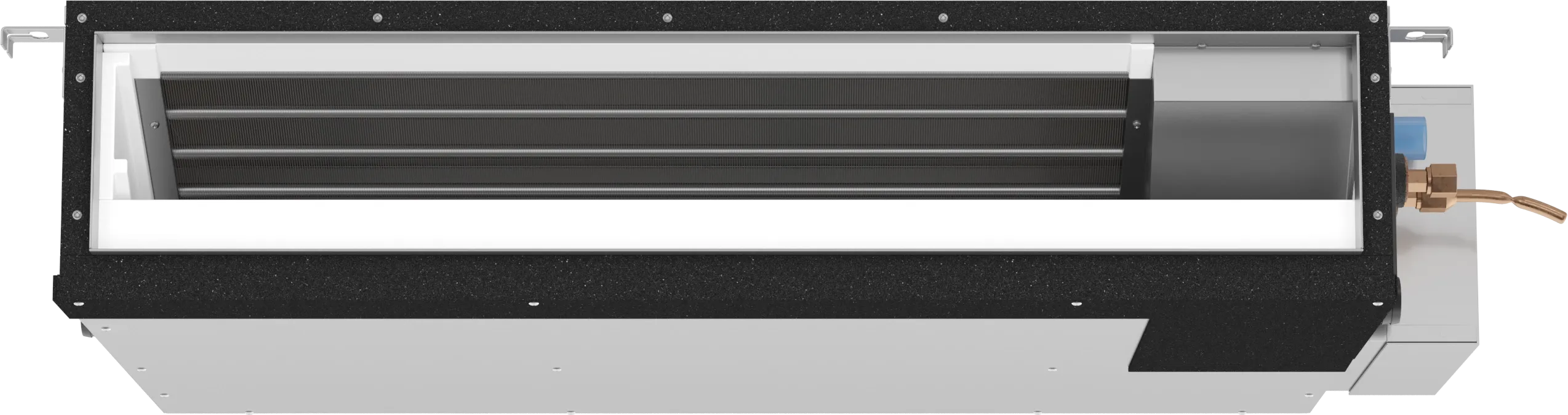

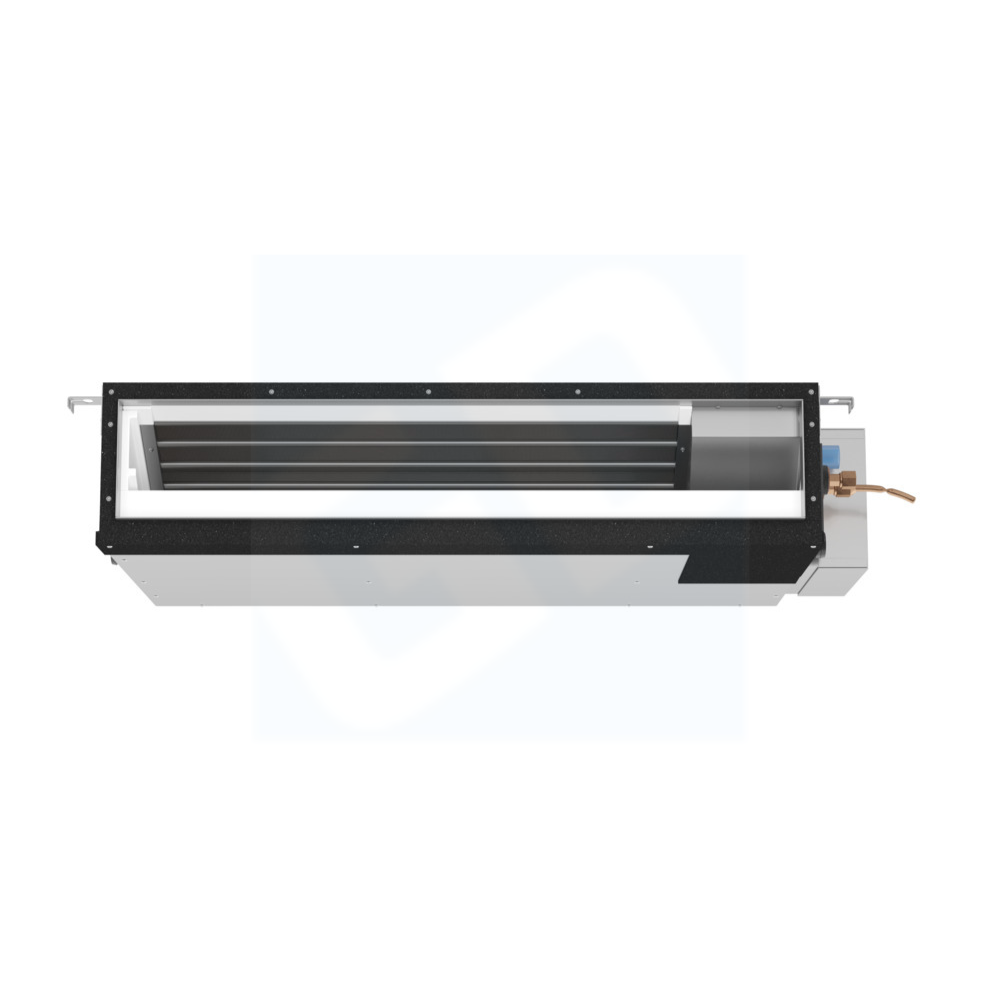

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 304 lb (Mitsubishi 161 lb + Mitsubishi 80 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: Up to 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Size: 9,000 BTU (SEZ-AD09NL), 18,000 BTU (SEZ-AD18NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions: MXZ-SM36NL - 41-11/32 x 13 x 52-11/16 inches
• Dimensions: SEZ-AD09NL - 31-1/8 x 27-9/16 x 7-7/8 inches
• Dimensions: SEZ-AD18NL - 46-7/8 x 27-9/16 x 7-7/8 inches
• Noise Level: As low as 30 dB (SEZ-AD09NL and SEZ-AD18NL)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor environments. The outdoor condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the concealed duct units are designed for discreet installation in tight spaces. The branch box allows for optimal refrigerant distribution among connected indoor units, enhancing overall system performance.
