Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+24K

Description

This comprehensive HVAC bundle features essential components designed for efficient heating and cooling in both residential and commercial settings. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with the PEAD-AA09NL and PEAD-AA24NL concealed duct indoor units, this bundle offers versatile installation options that blend seamlessly into various environments. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making it easy to connect and manage multiple indoor units. Together, these products create a robust and efficient system tailored to meet diverse heating and cooling needs.

What's Included

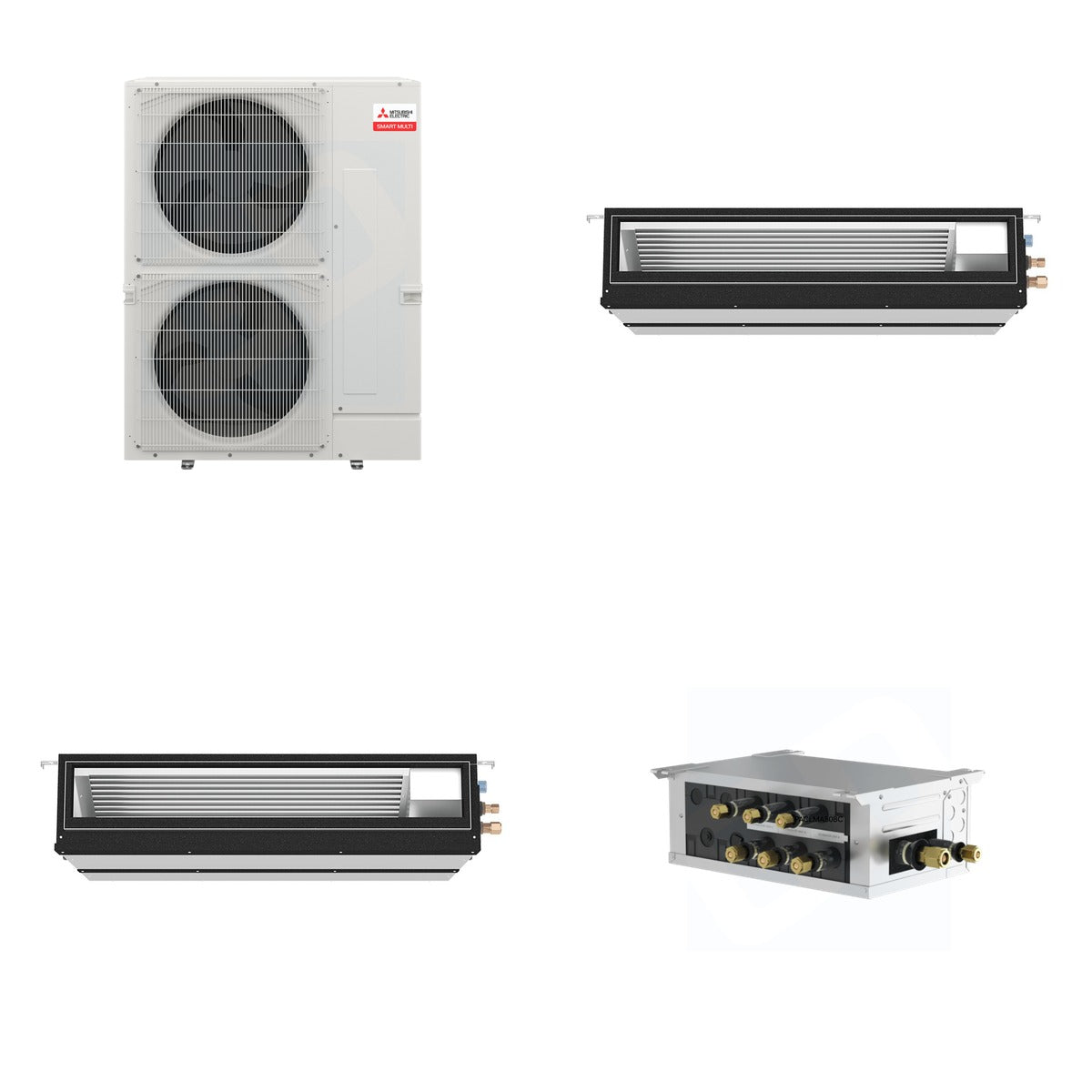

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 161 lb + Mitsubishi 49 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Cooling Capacity: 9,000 BTU (PEAD-AA09NL), 24,000 BTU (PEAD-AA24NL)
• Refrigerant Type: R454B
• SEER2: 23 (MXZ-SM36NL)
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Voltage: 208/230 Volts
• Weight: 58 lbs (PEAD-AA09NL), 15 lbs (PAC-LMA30BC)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the PEAD-AA09NL and PEAD-AA24NL units can be installed in concealed ductwork for a discreet appearance. The PAC-LMA30BC branch box facilitates the connection of up to three indoor units, ensuring balanced refrigerant flow and optimal performance.
