Mitsubishi Multi-Zone 28600 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial applications. The Mitsubishi Electric MXZ-4D30NL outdoor condenser works seamlessly with the SVZ-AP12NL ducted air handlers to create a multi-zone climate control system. With a combined capacity of 30,000 BTU for cooling and 36,000 BTU for heating, this bundle ensures optimal comfort throughout the year. The variable speed inverter-driven compressor of the outdoor unit adjusts to meet demand efficiently, while the air handlers offer versatile installation options and quiet operation. Together, these components deliver reliable performance and enhanced energy efficiency.

What's Included

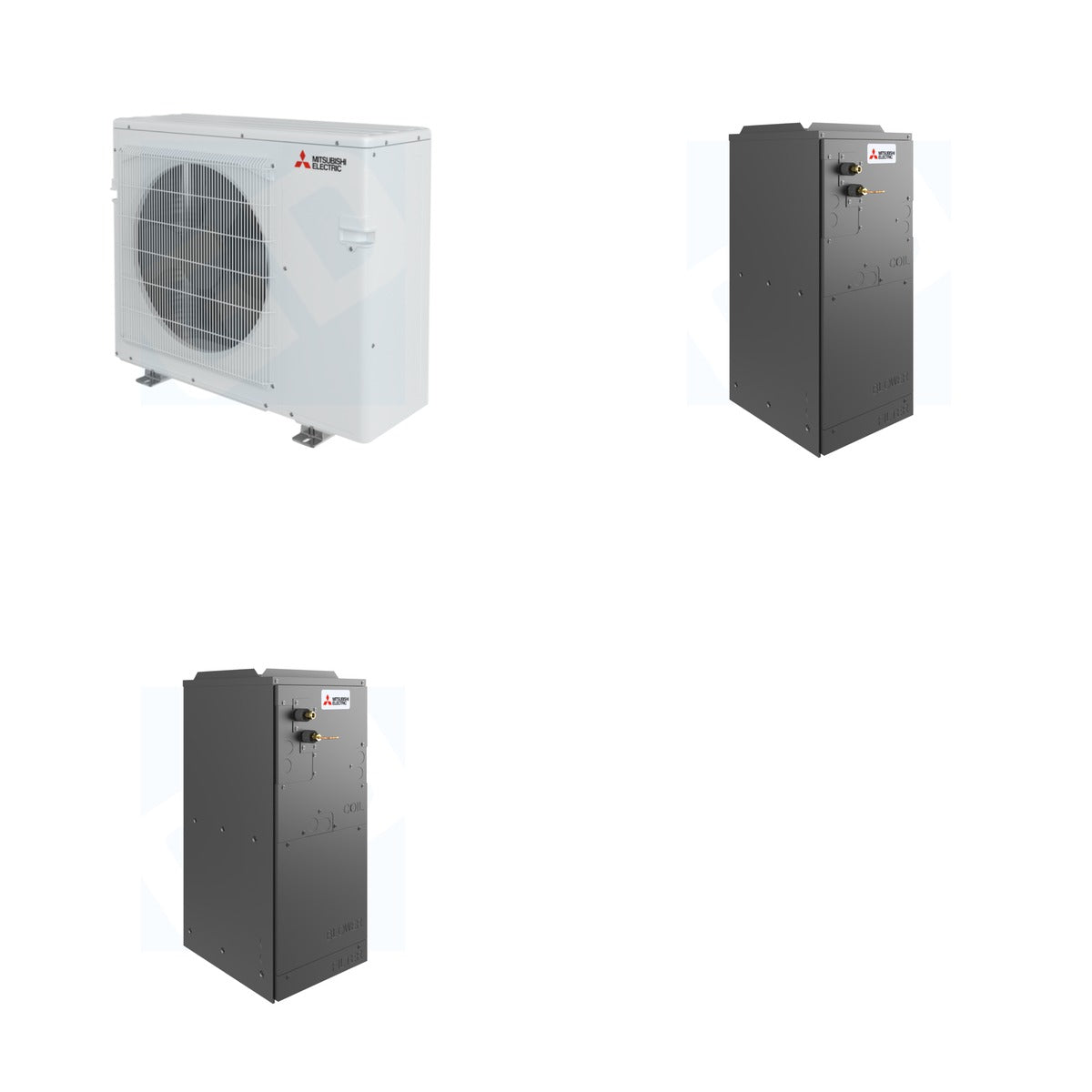

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x2)

Key Details

• Weight of Bundle: 325 lb (Mitsubishi 131 lb + Mitsubishi 194 lb)
• Cooling BTU: 30000
• Heating BTU: 36000
• SEER Rating: 21
• Refrigerant Type: R454B
• Electrical Requirements: 208/230V 1 Phase 60 Hz
• Outdoor Unit Dimensions: 31.43 x 37.45 x 13 inches
• Indoor Unit Dimensions: 17 x 21-5/8 x 39-13/16 inches
• Weight: 137 lbs (outdoor), 97 lbs (indoor)

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system in residential or light commercial spaces. The outdoor condenser is compatible with up to four indoor air handlers, allowing for customized climate control in various areas. The ducted air handlers can be installed in multiple orientations, making them versatile for different layouts.
