Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+15K

Description

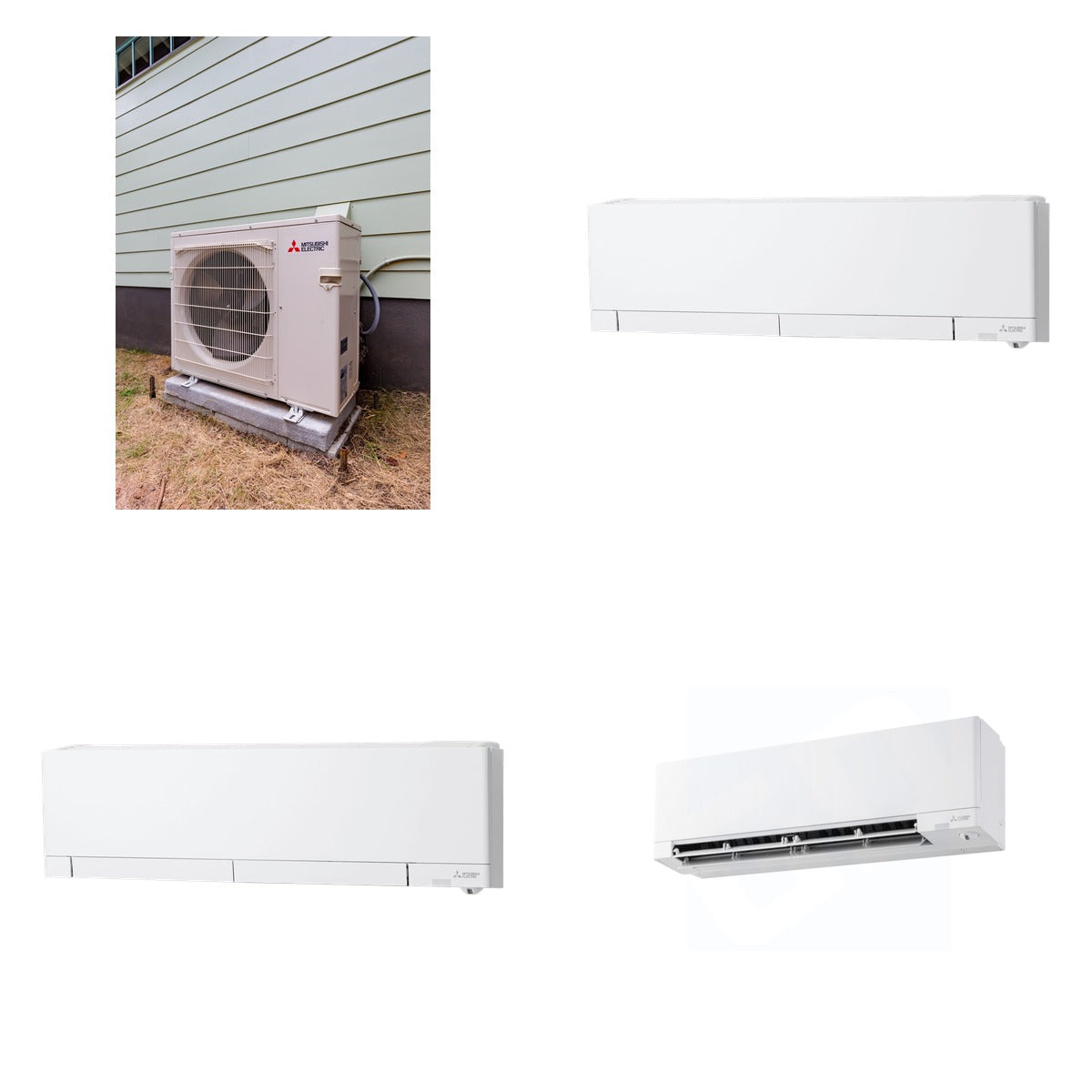

This comprehensive HVAC bundle includes the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two wall-mounted air handlers, the MSZ-FX06NL and MSZ-FX15NL. Designed for multi-zone applications, this combination allows for efficient heating and cooling across multiple rooms, making it perfect for both residential and commercial spaces. The MXZ-3D24NL serves as a powerful outdoor unit, while the MSZ-FX06NL and MSZ-FX15NL provide flexible, quiet indoor comfort. Together, they ensure optimal climate control, energy efficiency, and advanced features that enhance user experience.

What's Included

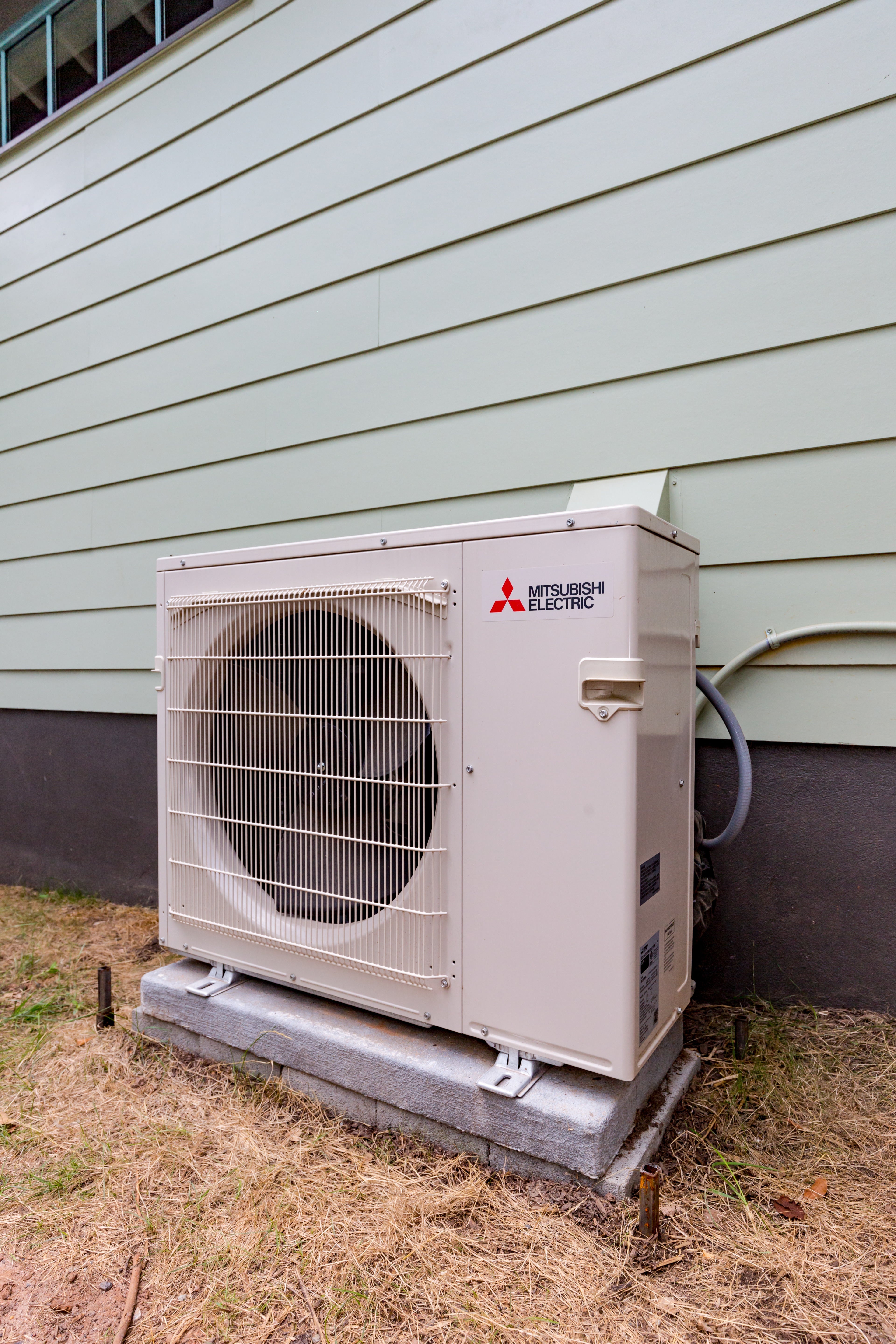

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU (Qty x1)

Key Details

• Weight of Bundle: 218.4 lb (Mitsubishi 124 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb)
• MXZ-3D24NL: 24,000 BTU, 2-Ton, SEER 20, EER 13.7, HSPF 10
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, HSPF2 up to 13.3
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, HSPF2 10.5
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Sound Level: MXZ-3D24NL 51 dBA cooling, 55 dBA heating; MSZ-FX06NL 20-42 dB; MSZ-FX15NL 26-49 dB
• Dimensions: MXZ-3D24NL 31-11/32 in H x 13 in L x 37-11/32 in W; MSZ-FX06NL 12 in H x 39.27 in W x 9.75 in D; MSZ-FX15NL 12 in H x 39-9/32 in W x 9-3/4 in D

Use & Compatibility

This bundle is ideal for residential and commercial applications requiring efficient heating and cooling across multiple zones. The MXZ-3D24NL outdoor condenser is compatible with both MSZ-FX06NL and MSZ-FX15NL indoor units, allowing for versatile installation options. Whether you need to condition a single room or an entire home, this system provides the flexibility and performance needed for optimal comfort.
