Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+12K

Description

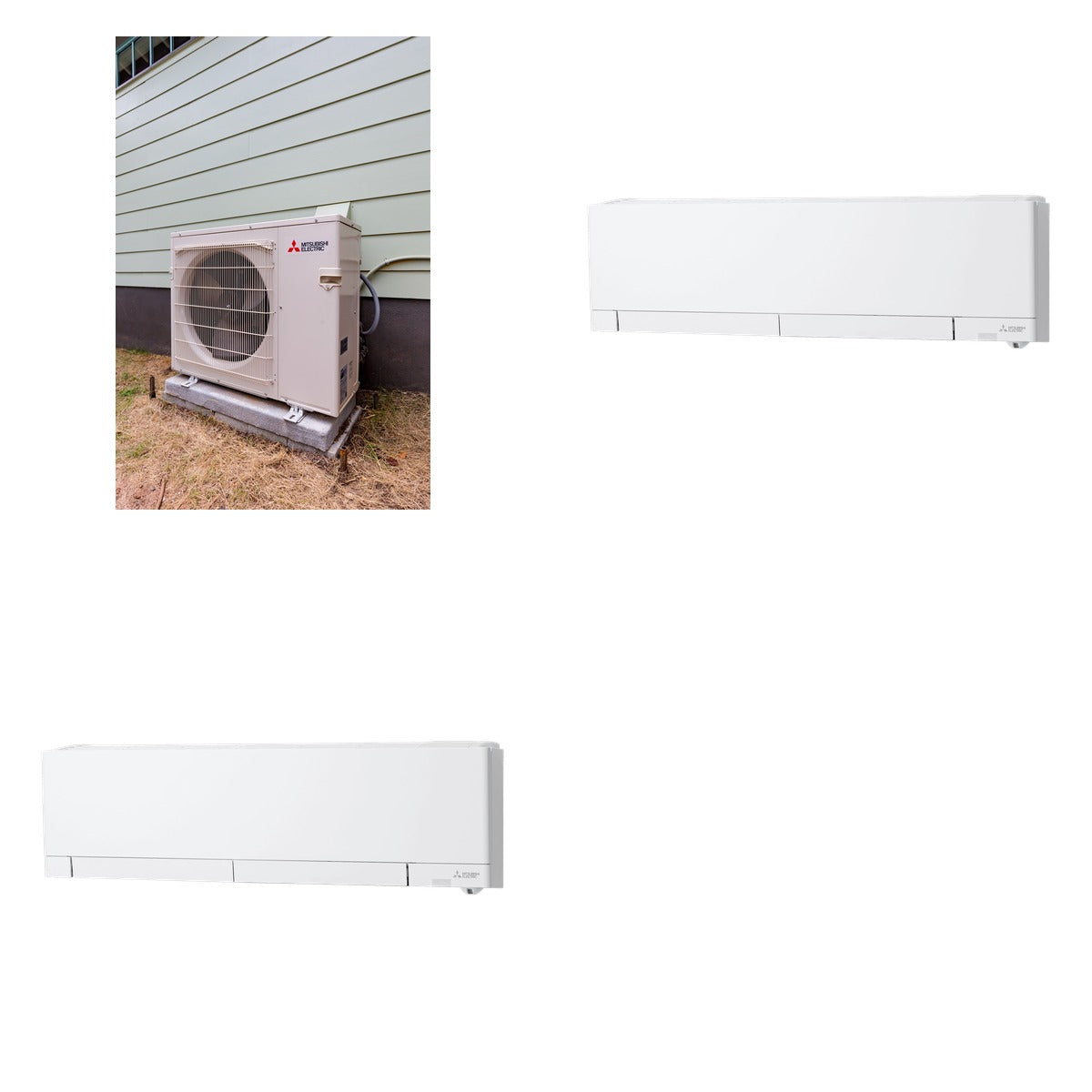

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two MSZ-FX12NL wall-mounted air handlers, providing an efficient and versatile heating and cooling solution for multi-zone applications. With a total capacity of 24,000 BTU for the condenser and 12,000 BTU for each air handler, this system is designed to deliver optimal comfort across up to three zones. The advanced technology in these units, including variable speed inverter-driven compressors and smart control features, ensures energy efficiency and quiet operation, making it a perfect choice for both residential and commercial spaces.

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)

Key Details

• Weight of Bundle: 196.8 lb (Mitsubishi 124 lb + Mitsubishi 72.8 lb)
• Cooling Capacity: 24,000 BTU (MXZ-3D24NL)
• Heating Capacity: 30,600 BTU (MXZ-3D24NL)
• Cooling Capacity: 12,000 BTU (MSZ-FX12NL)
• Heating Capacity: 13,200 BTU (MSZ-FX12NL)
• SEER Rating: 20 (MXZ-3D24NL), Up to 35 (MSZ-FX12NL)
• HSPF Rating: 10 (MXZ-3D24NL), Up to 13.3 (MSZ-FX12NL)
• Voltage: 208/230 V
• Refrigerant Type: R-454B
• Sound Level: 51 dBA (MXZ-3D24NL), Minimum 20 dB (MSZ-FX12NL)
• Dimensions: MXZ-3D24NL - 31-11/32 in H x 13 in L x 37-11/32 in W; MSZ-FX12NL - 12 in H x 39.27 in W x 9.75 in D

Use & Compatibility

This bundle is designed for residential and light commercial use, providing efficient heating and cooling solutions for multiple zones. The MXZ-3D24NL outdoor condenser is compatible with various indoor unit types, while the MSZ-FX12NL air handlers can be used in single or multi-zone systems, making it a flexible choice for a variety of applications.
