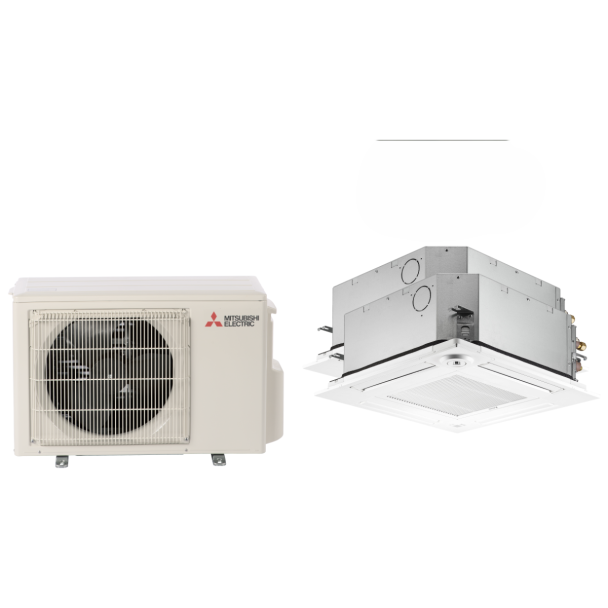

Mitsubishi Multi-Zone 20000 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-2D20NL outdoor condenser, this system supports up to two indoor units, allowing for customizable climate control across multiple zones. The included SLZ-AF09NL and SLZ-AF12NL indoor units are perfect for ceiling installation, offering flexible airflow management and energy-efficient operation. With the addition of two SLP-18FAU grilles, this bundle ensures optimal air distribution, making it an ideal choice for those looking to enhance their indoor comfort.

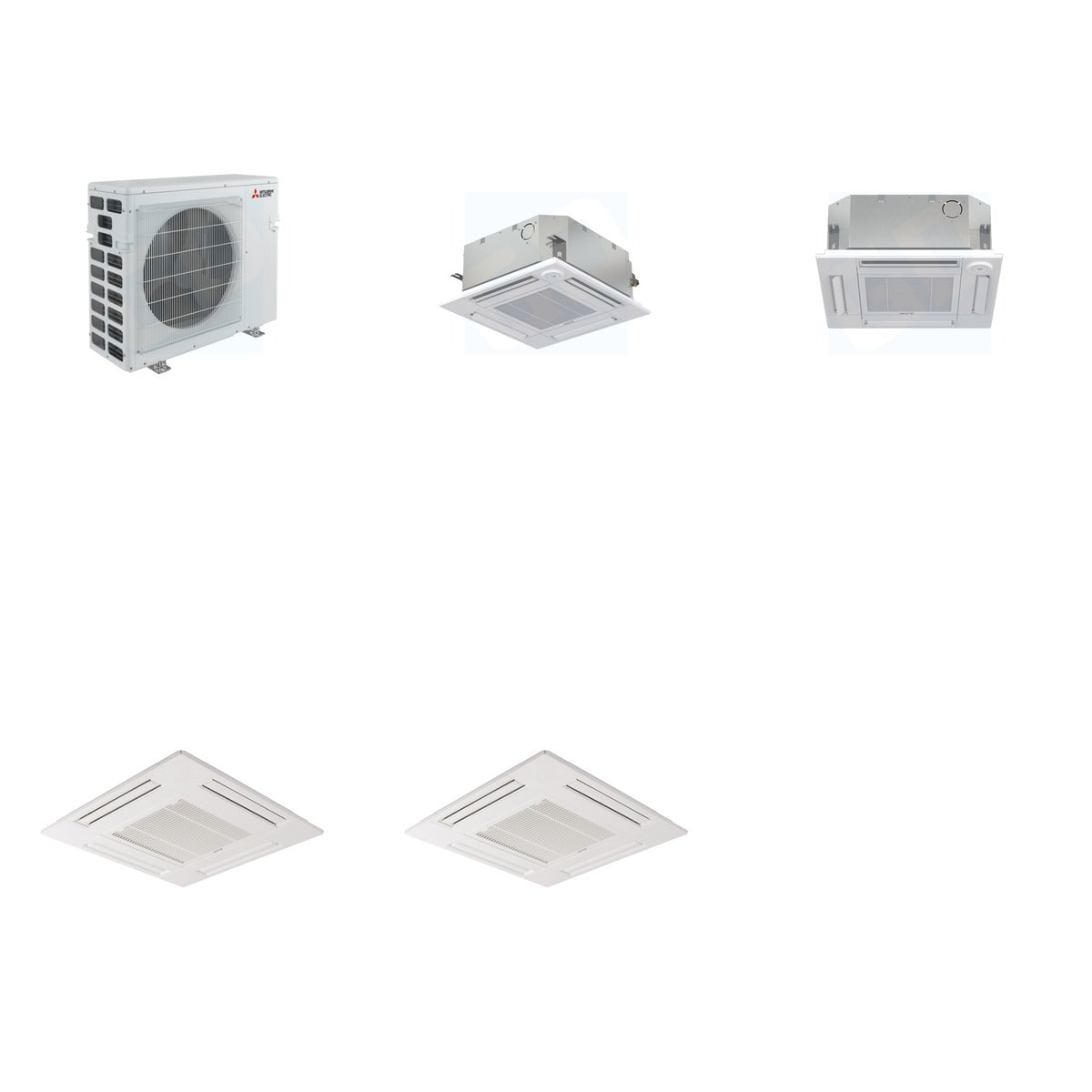

What's Included

• MITSUBISHI ELECTRIC MXZ-2D20NL - Mitsubishi Electric MXZ-2D20NL 20k BTU (1.66 Ton) M-Series Outdoor Condenser up to 2 Zones (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 163 lb (Mitsubishi 83 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 14 lb)
• Cooling BTU: 20,000 (MXZ-2D20NL), 9,000 (SLZ-AF09NL), 12,000 (SLZ-AF12NL)
• Heating Capacity: 24,000 BTU (MXZ-2D20NL), 12,000 BTU (SLZ-AF09NL), 15,000 BTU (SLZ-AF12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Maximum Sound Level: 55 dB (MXZ-2D20NL), 31 dB (SLZ-AF09NL), 31 dB (SLZ-AF12NL)
• Dimensions: MXZ-2D20NL (27 15/16" H x 33 1/16" W x 13" D), SLZ-AF09NL (8 3/16" H x 22 7/16" W x 22 7/16" D), SLZ-AF12NL (8 4/16" H x 22 7/16" W x 22 7/16" D)
• Shipping Weight: MXZ-2D20NL (137 lbs), SLZ-AF09NL (36 lbs), SLZ-AF12NL (36 lbs)

Use & Compatibility

This bundle is intended for use in multi-zone mini-split applications, providing flexible heating and cooling solutions. The outdoor condenser is compatible with the included indoor units, allowing for efficient climate control in various settings, including residential and commercial spaces.
