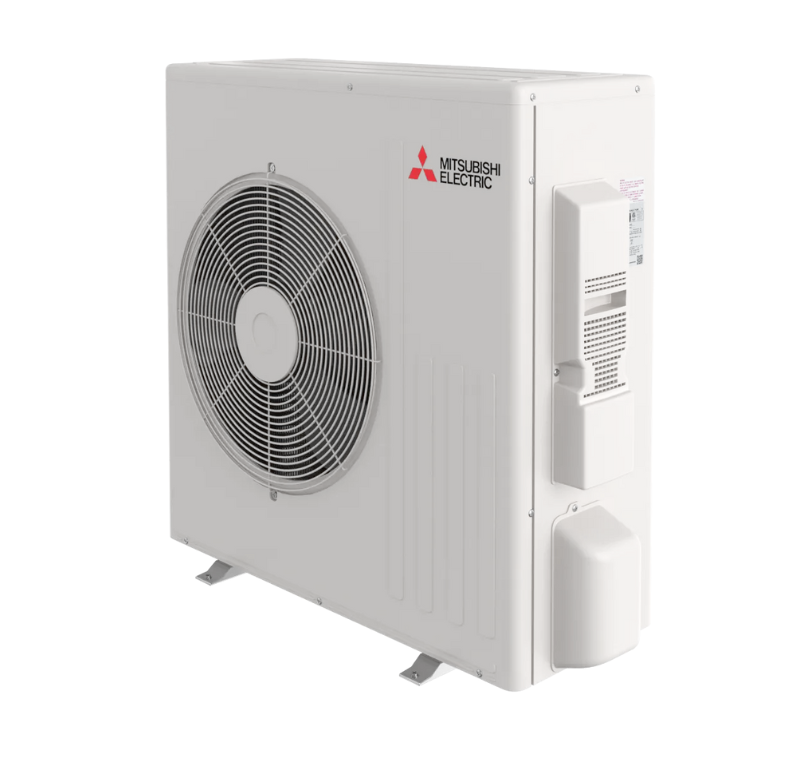

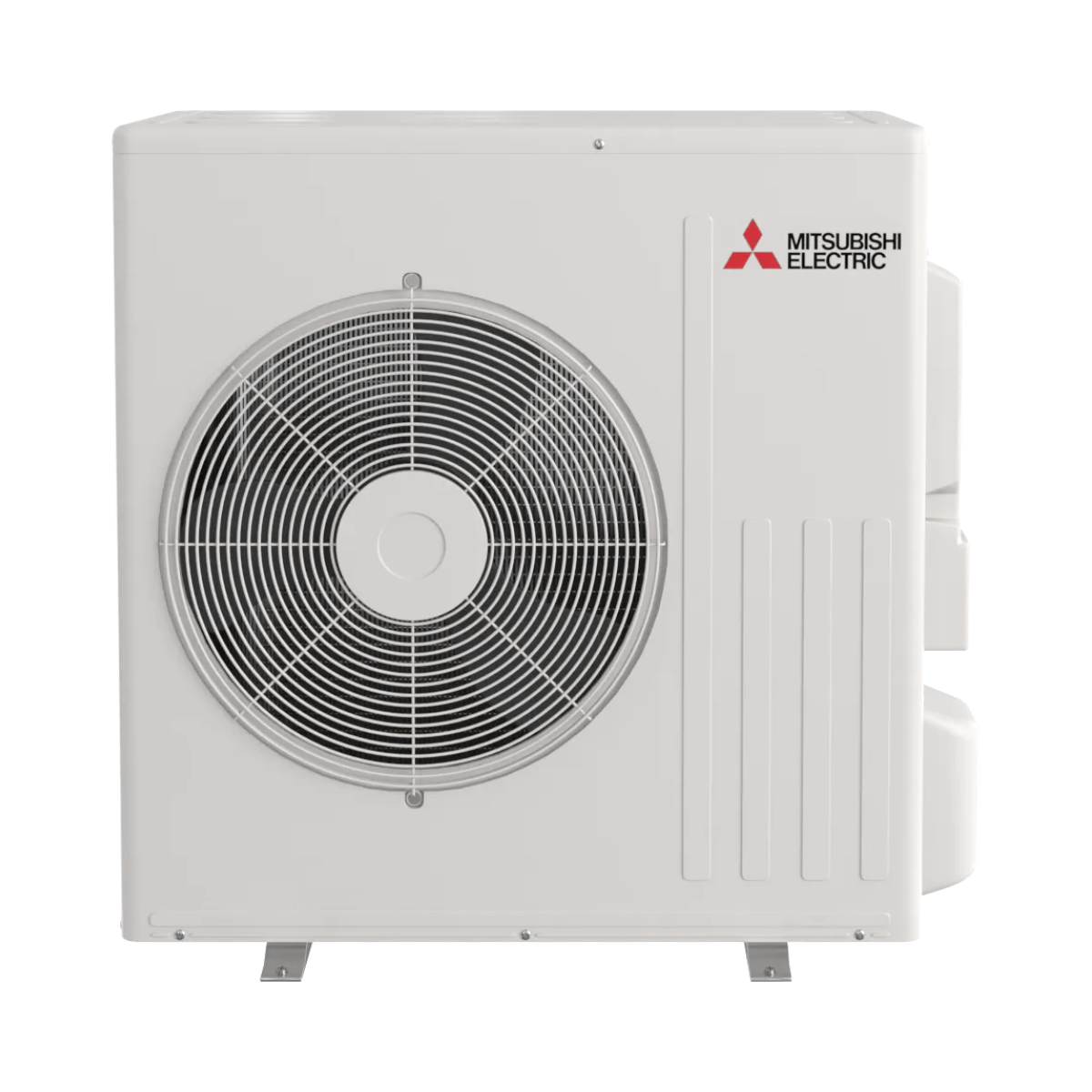

Mitsubishi SUZ-AA36NL M-Series Outdoor Condenser - Single-Zone - 36k BTU - R-454B

Product Description

The Mitsubishi Electric SUZ-AA36NL is an outdoor condenser unit designed to work with single-zone mini-split systems. This model provides both heating and cooling when paired with suitable indoor units. It features advanced inverter technology and an electronic linear expansion valve for optimized temperature management and energy efficiency.

• Compatible with R-454B refrigerant.

• Automatically restarts after power outages.

• Blue fin coating for enhanced corrosion resistance.

Product Highlights

The SUZ-AA36NL is efficient and versatile for residential heating and cooling needs.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC

• MPN: SUZ-AA36NL

• Type: Outdoor Condenser

• Product Line: M-Series

• Multi-Zone Compatible: No

• Installation Location: Outdoor

Technical Specifications

• Operating Mode: Heating and Cooling

• Maximum Number of Zones: 1

• Refrigerant Type: R-454B

• Base Pan Heater Included: No

• Cooling BTU: 36000

• Cooling Capacity: 33000 BTU

• Heating Capacity: 34000 BTU

• Maximum Sound Level: 55 dB

• Low Ambient Heating: Yes

• Minimum Outdoor Temperature for Heating: -4 F

• Minimum Outdoor Temperature for Cooling: 14 F

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Minimum Circuit Ampacity: 25 Amps

• Maximum Line Length: 100 Feet

• Gas Connection Size: 5/8 Inch

• Liquid Connection Size: 1/4 Inch

• Product Height: 34 5/8 Inches

• Product Width: 33 1/16 Inches

• Product Depth: 13 Inches

• Product Weight: 117 Pounds

• Shipping Weight: 135 Pounds

• ETL Listed: Yes

• AHRI Certified: Yes
