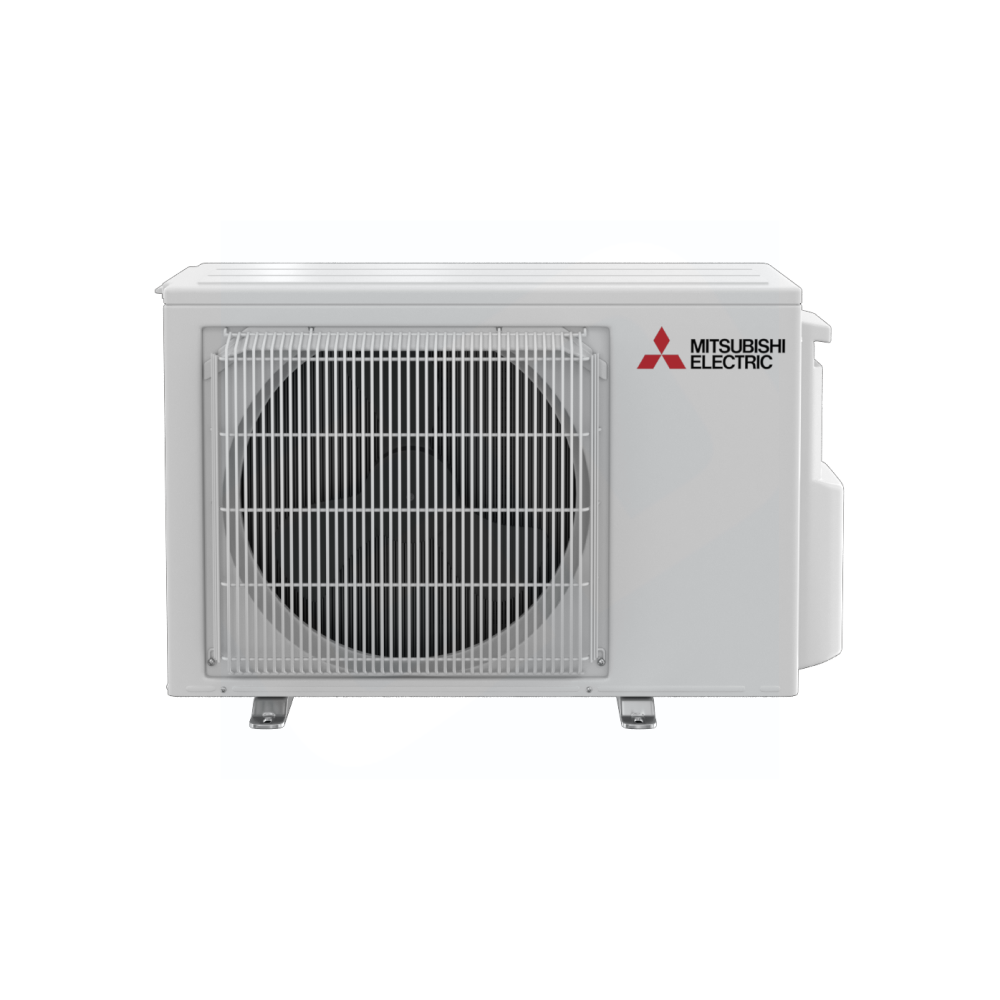

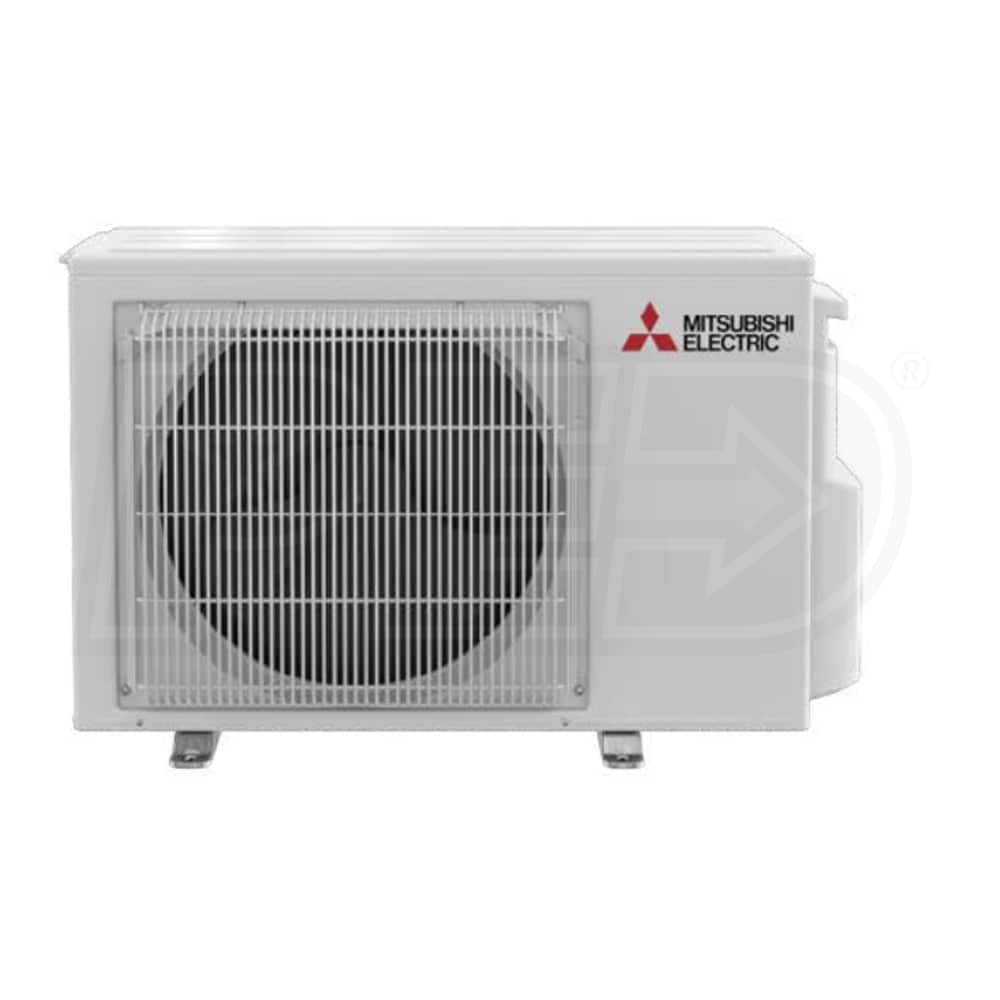

Mitsubishi Electric SUZ-AA12NL Outdoor Condenser 12000 BTU

Product Description

The Mitsubishi Electric SUZ-AA12NL is an outdoor condenser designed for single-zone mini-split systems. This versatile unit provides both heating and cooling functions when paired with compatible indoor models. It features an inverter-driven compressor that adjusts output to maintain a steady temperature while being compatible with R-454B refrigerant. The Blue Fin coating offers corrosion protection, making it suitable for outdoor installation and operation.

• Designed for single-zone mini-split applications.
• Heating and cooling capabilities.
• Utilizes R-454B refrigerant for efficiency.

Product Highlights

The unit is efficient and reliable, ideal for residential or light commercial use. Its compact design allows for easy installation in various locations.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SUZ-AA12NL

Technical Specifications

• Type: Outdoor Condenser, Heat Pump
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 15000 BTU
• SEER2: 19.6, 20.7
• EER2: 12.6
• HSPF2: 8.7
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: -1 F, 14 F
• Weight: 81 Pounds
• Dimensions: 21.625 Inches x 31.5 Inches x 11.25 Inches
• Noise Level: Maximum sound level of 51 dB
