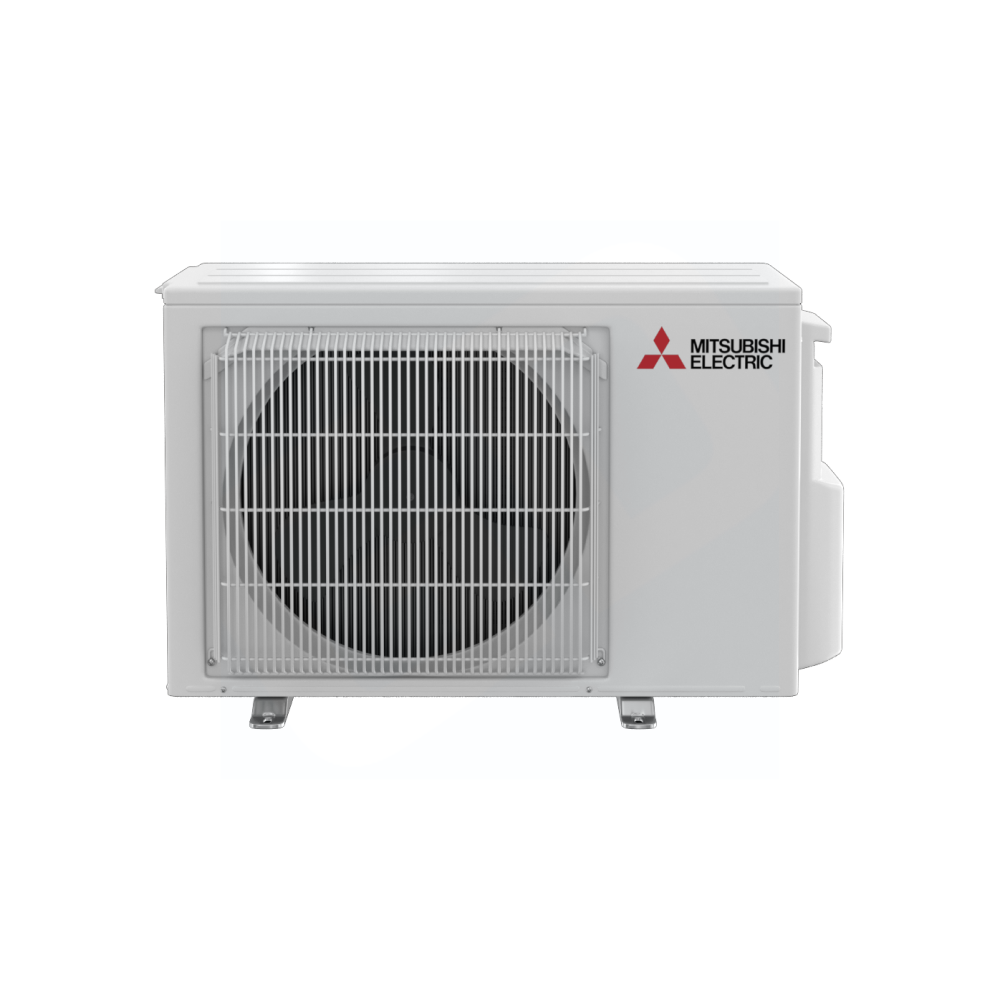

Mitsubishi SUZ-AA09NL M-Series Outdoor Condenser - Single-Zone - 9k BTU - R-454B

Product Description

The Mitsubishi Electric SUZ-AA09NL is an outdoor heat pump unit ideal for single-zone applications. This model is part of the KX Series, offering efficient cooling and heating capabilities. It works best when paired with compatible indoor units. The unit features a Blue Fin coating that protects against corrosion and enhances durability. Additionally, it offers connectivity through the Comfort App for remote management.

• Single-zone outdoor unit for optimal performance.

• Blue Fin coating enhances corrosion resistance.

• Wi-Fi enabled with Comfort App for easy control.

Product Highlights

This unit is suitable for both heating and cooling, catering to a space of up to 350 square feet with a high energy efficiency rating.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC

• MPN: SUZ-AA09NL

• Type: Outdoor Condenser

• Product Line: M-Series

• Multi-Zone Compatible: No

• Installation Location: Outdoor

Technical Specifications

• Operating Mode: Heating and Cooling

• Maximum Number of Zones: 1

• Refrigerant Type: R-454B

• Base Pan Heater Included: No

• Cooling BTU: 9000

• Cooling Capacity: 9000 BTU

• Heating Capacity: 12000 BTU

• Maximum Sound Level: 50 dB

• Low Ambient Heating: Yes

• Minimum Outdoor Temperature for Heating: -4 F

• Minimum Outdoor Temperature for Cooling: 14 F

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Minimum Circuit Ampacity: 13 Amps

• Maximum Line Length: 65 Feet

• Gas Connection Size: 3/8 Inch

• Liquid Connection Size: 1/4 Inch

• Product Height: 21 5/8 Inches

• Product Width: 31 1/2 Inches

• Product Depth: 11 1/4 Inches

• Product Weight: 81 Pounds

• ETL Listed: Yes

• AHRI Certified: Yes
