Mitsubishi Electric SLZ-AF18NL Mini-Split Air Handler

Product Description

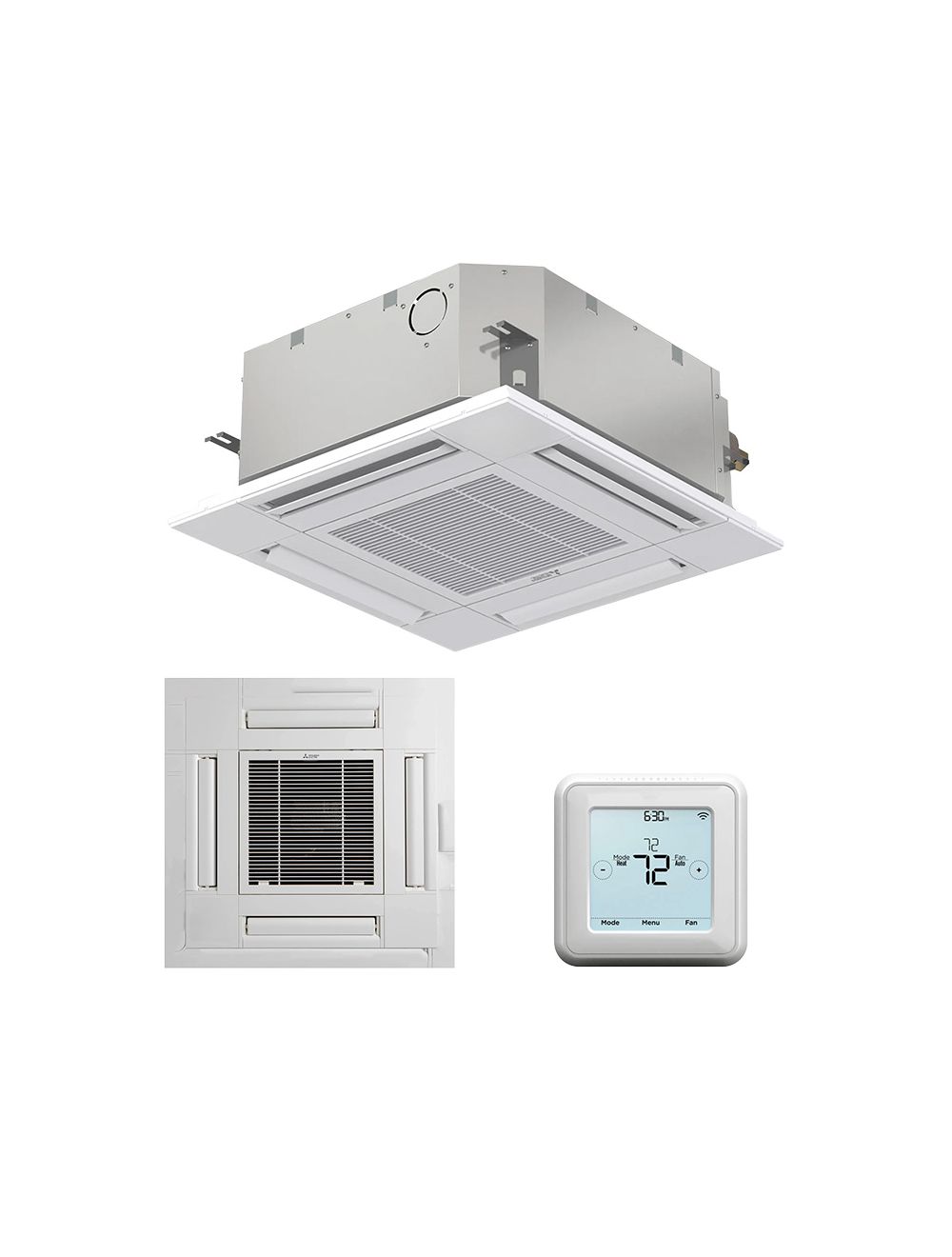

The Mitsubishi Electric SLZ-AF18NL is an indoor cassette air handler specifically designed for ceiling installation. This unit operates on 208/230 V and offers both heating and cooling capabilities. It works with R-454B refrigerant and includes an inverter drive, making it versatile for light commercial usage. The unit fits into a standard two feet by two feet ceiling grid and is suitable for multi-zone systems.

• Ceiling-recessed cassette design for easy integration.
• Built-in drain condensate lift mechanism capable of lifting to thirty-three inches.
• Fresh air intake built into the main body for improved air quality.

Product Highlights

This air handler provides reliable temperature control while maintaining energy efficiency.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SLZ-AF18NL

Technical Specifications

• Series: SLZ
• Unit Type: Indoor Unit
• Product Line: AF Series
• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 18,000 BTU
• Cooling Capacity: up to 17,700 BTU
• Heating Capacity: up to 19,700 BTU
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Power Consumption Cooling: 1500 W
• Power Consumption Heating: 2070 W
• Frequency: 60 Hz
• Phase: 1
• Airflow Cooling CFM, Dry: 300-420-475
• Airflow Cooling CFM, Wet: 270-378-429
• Airflow Heating CFM, Dry: 300-420-475
• Sound Level Cooling: 32-40-43 dBA
• Sound Level Heating: 32-40-43 dBA
• Mounting Type: Ceiling Mounting
• Cooling Temperature Range: 67 to 80 degrees F
• Heating Temperature Range: 47 to 70 degrees F
• Width: 22-7/16 inches
• Depth: 22-7/16 inches
• Height: 8-3/16 inches
• Fuse Rating: 30 A
• EER Rating: 12
• SEER: 17.5
• HSPF: 9.6
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
