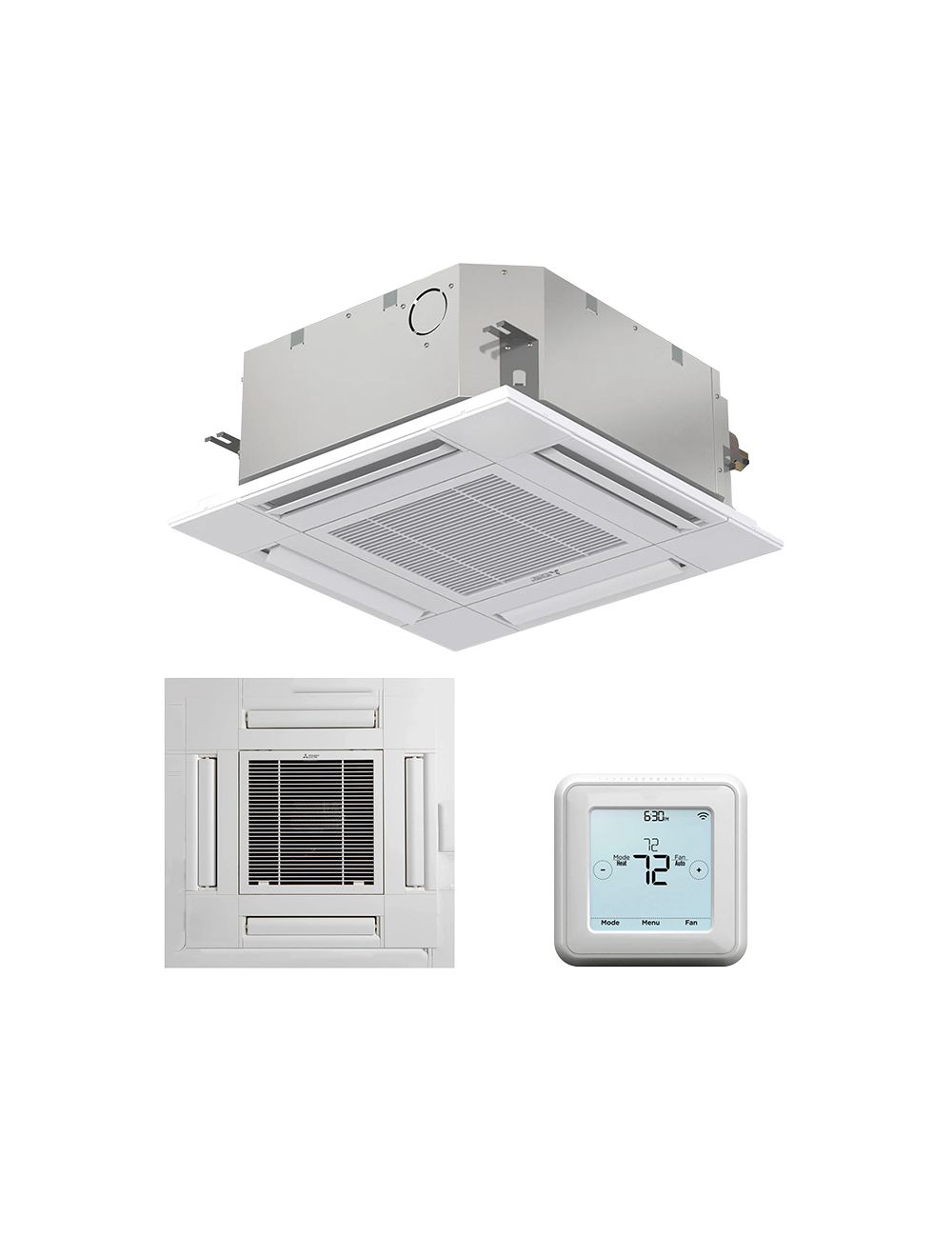

Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU)

Product Description

The Mitsubishi Electric SLZ-AF09NL is a ductless indoor unit for ceiling installation. It fits flush within standard two by two ceiling grids. This model includes four adjustable vents for up to seventy-two different airflow patterns. It also features a built-in condensate drain lift mechanism.

• Built-in condensate lift mechanism (lifts to thirty-three inches)

• Fresh air intake in the main body

• Individual vane control for customized airflow

Product Highlights

This indoor unit provides efficient cooling and heating solutions for residential and commercial spaces, allowing for optimal air distribution.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC

• MPN: SLZ-AF09NL

• Type: Ceiling Cassette

• Product Line: M-Series

• Refrigerant Type: R-454B

• Installation Location: Indoor

Technical Specifications

• Operating Mode: Heating and Cooling

• Multi-Zone Compatible: Yes

• Grille: Included

• Required Grille Model: SLP-18FAU

• Cooling BTU: 9000

• Cooling Capacity: 9000 BTU

• Heating Capacity: 12000 BTU

• Moisture Removal: 0.7 Pints/Hour

• Maximum Air Flow: 300 CFM

• Minimum Air Flow: 230 CFM

• Minimum Sound Level: 25 dB

• Maximum Sound Level: 31 dB

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Gas Connection Size: 3/8 Inch

• Liquid Connection Size: 1/4 Inch

• Product Height: 8 3/16 Inches

• Product Width: 22 7/16 Inches

• Product Depth: 22 7/16 Inches

• Product Weight: 31 Pounds

• Shipping Weight: 36 Pounds

• AHRI Certified: Yes

• Grille Height: 0.40 Inch

• Grille Width: 24.60 Inches

• Grille Depth: 24.60 Inches
