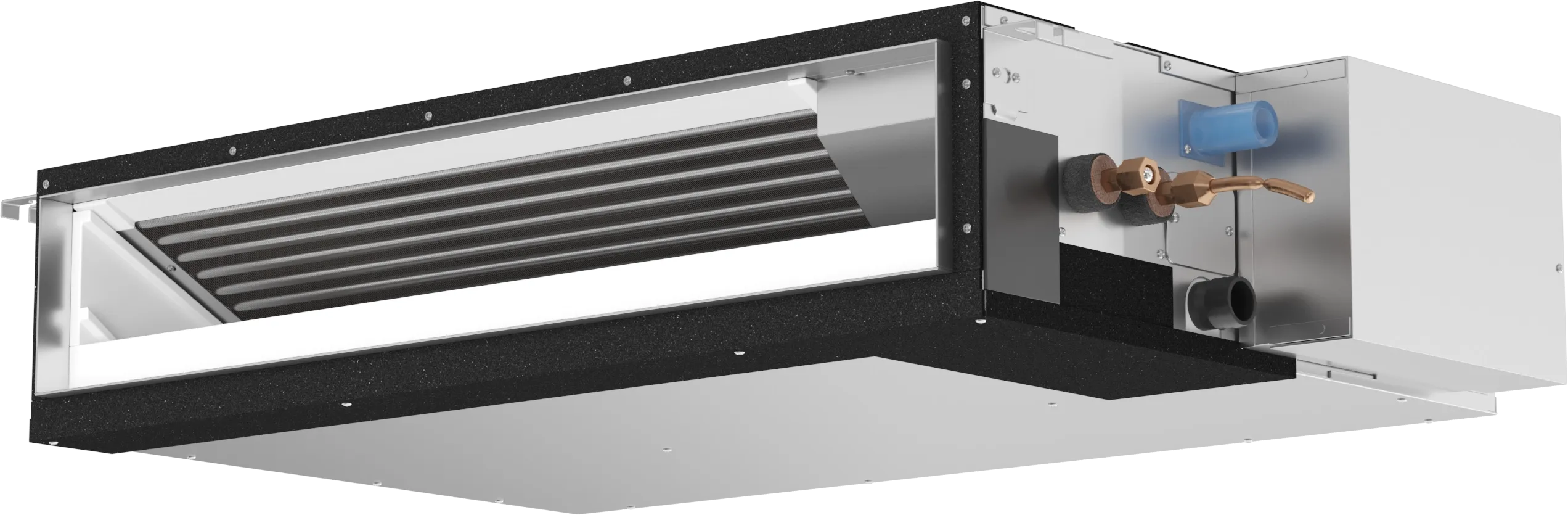

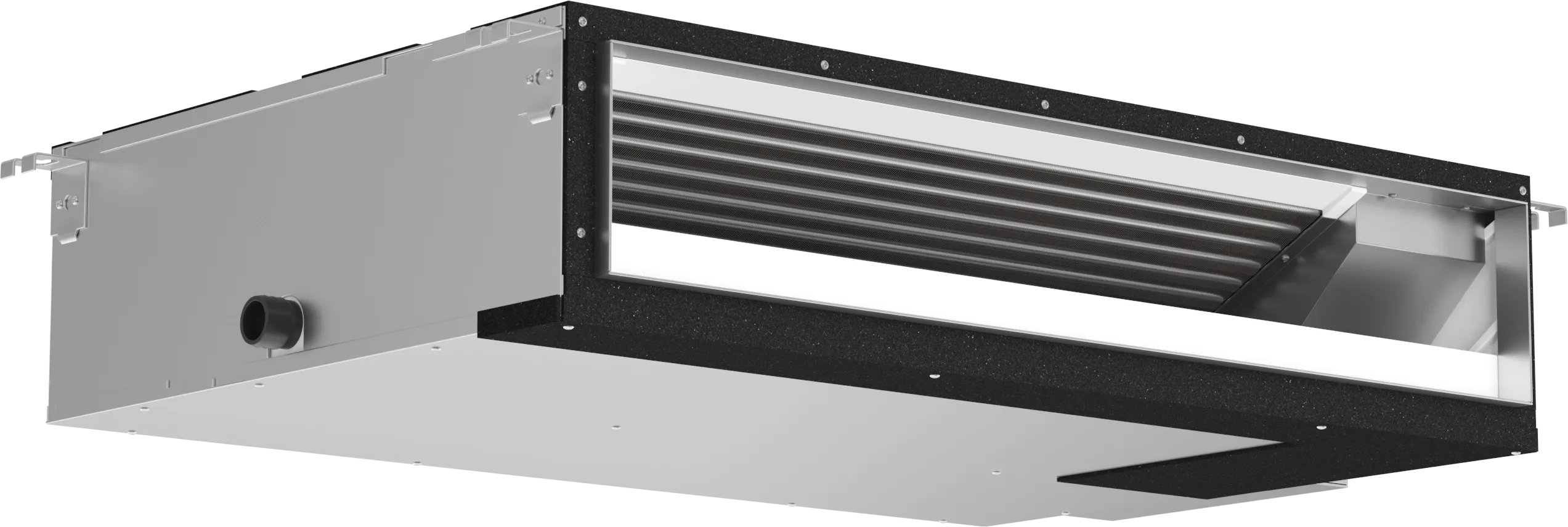

Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B)

Product Description

The MITSUBISHI ELECTRIC SEZ-AD12NL is an R454B: 12,000 BTU SEZ Series concealed duct AHU designed for efficient heating and cooling. It is a concealed duct heat pump mini split indoor unit suitable for single-zone or multi-zone systems. This unit can be easily hidden in short-run ducting and operates quietly. It features multiple operating modes and fan speeds to fit the needs of nearly any room.

• Concealed duct heat pump mini split indoor unit for single or multi-zone systems.
• Easily hidden in short-run ducting with quiet operation.
• Features dehumidification to remove unwanted moisture.

Product Highlights

The SEZ-AD12NL offers unobtrusive zoned comfort with multiple operating modes, fan speeds, and a condensate removal system.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SEZ-AD12NL

Technical Specifications

• Type: Concealed Duct
• Product Sub-line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 12
• Installation Location: Indoor
• Cooling BTU: 12000
• Cooling Capacity: 11500 BTU
• Heating Capacity: 13600 BTU
• Moisture Removal: 2.5 Pints/Hour
• Maximum Air Flow: 388 CFM
• Minimum Air Flow: 247 CFM
• Minimum Sound Level: 23 dB
• Maximum Sound Level: 33 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 7 7/8 Inches
• Product Width: 39 Inches
• Product Depth: 27 9/16 Inches
• Shipping Weight: 73 Pounds
• ETL Listed: Yes
• Parts Warranty: 5 Years
• Unit Type: Indoor Unit
• Product Line: M-Series AD
• Number of Zones: Multi
• System Capacity: 11,500 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: SEZ-AD12NL
• Room Cooling/Heating Capacity: up to 500 sq ft
• Airflow Cooling CFM, Dry: 247-317-388
• Airflow Heating CFM, Dry: 247-317-388
• Noise Level dB(A), Cooling: 23-28-33
• Noise Level dB(A), Heating: 23-28-33
