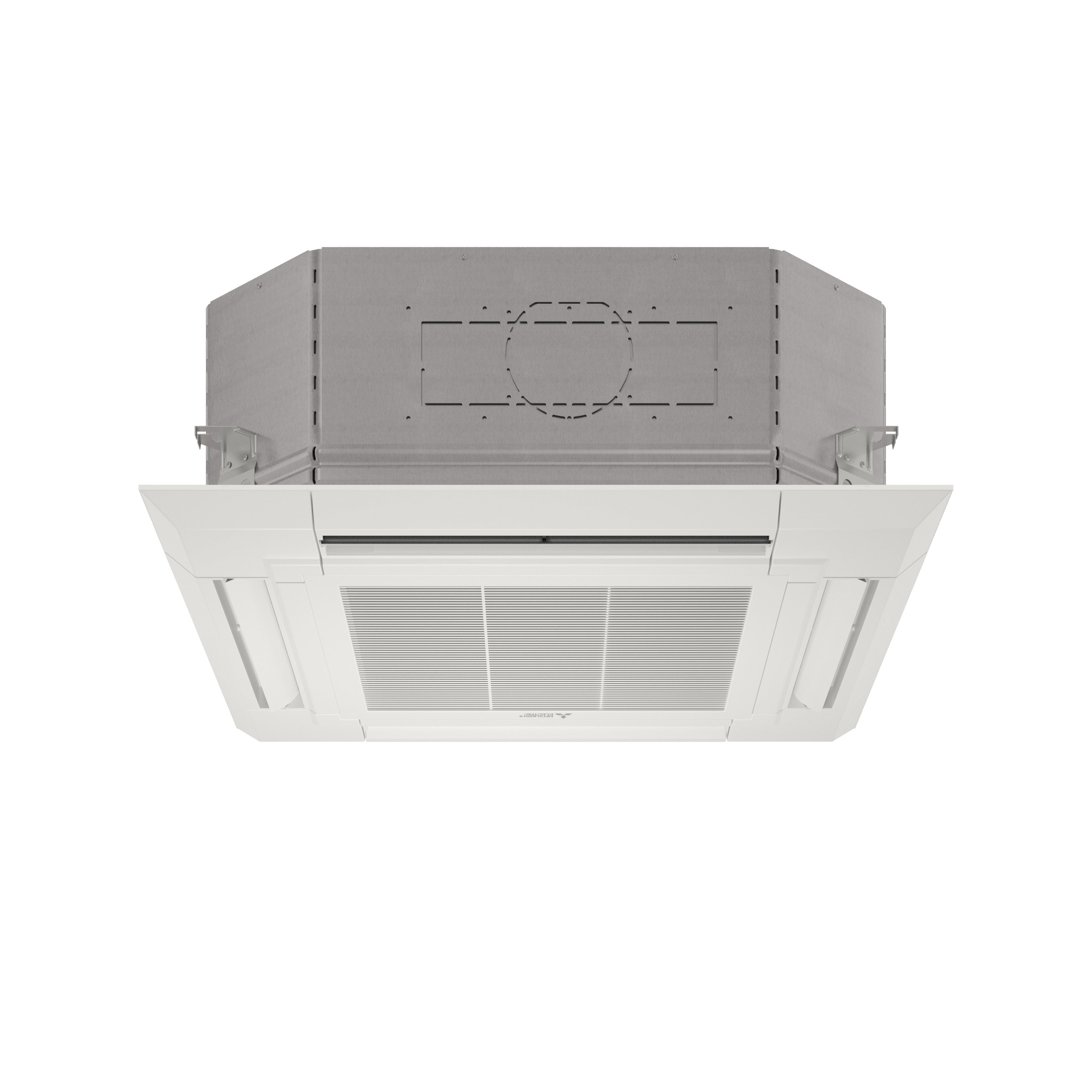

Mitsubishi Electric PLA-AE24NL Ceiling Cassette Heat Pump Unit

Product Description

The Mitsubishi Electric PLA-AE24NL is a ceiling cassette unit designed for both heating and cooling applications in residential and commercial settings. This unit efficiently provides climate control for single or multi-zone systems. Its low-profile design allows for discreet installation, while the quiet operation minimizes disruption. The integrated sensor is essential for detecting warm and cold spots, ensuring that conditioned air is effectively distributed throughout the space.

• Operates in both heating and cooling modes.

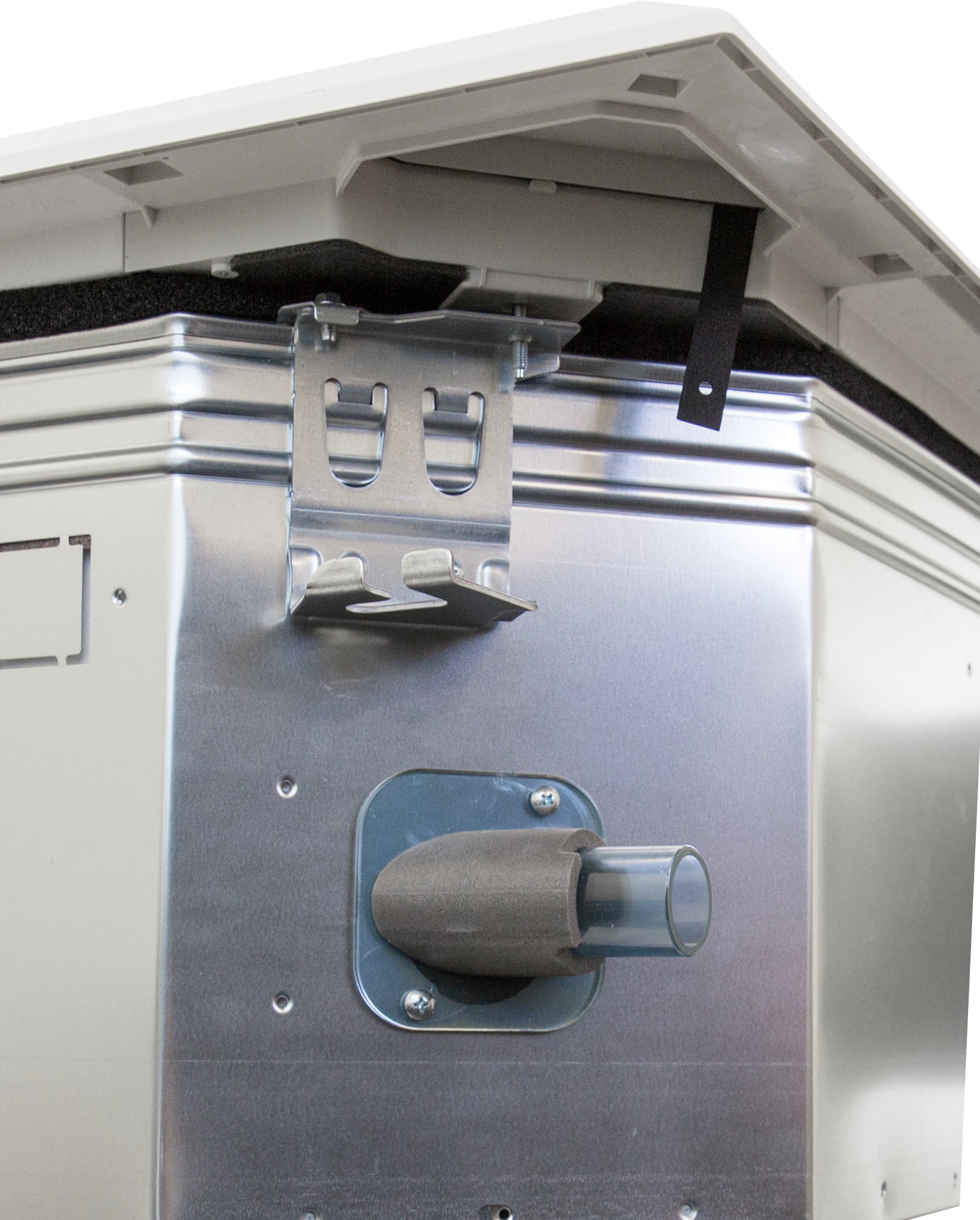

• Built-in condensate lift mechanism included.
• Equipped with a washable filter for easy maintenance.

Product Highlights

This ceiling cassette unit is ideal for those looking to optimize their indoor climate with advanced technology and reliability.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PLA-AE24NL

Technical Specifications

• Unit Type: Ceiling Cassette
• Product Line: P-Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 24,000 BTU
• Refrigerant Type: R-454B
• Cooling Capacity: 24000 BTU
• Heating Capacity: 29000 BTU
• SEER2: 24.7
• EER2: 13.7
• Energy Star Certified: Yes
• Cooling Minimum Temperature: 0 F
• Noise Level Cooling: 28-36 dB(A)
• Noise Level Heating: 28-36 dB(A)
• Dimensions: W 33 1/16 x 33 1/16 x 10 3/16
• Installation Location: Indoor
• Moisture Removal: 4 Pints/Hour
• Maximum Air Flow: 810 CFM
• Minimum Air Flow: 530 CFM
• Voltage: 208/230 Volts

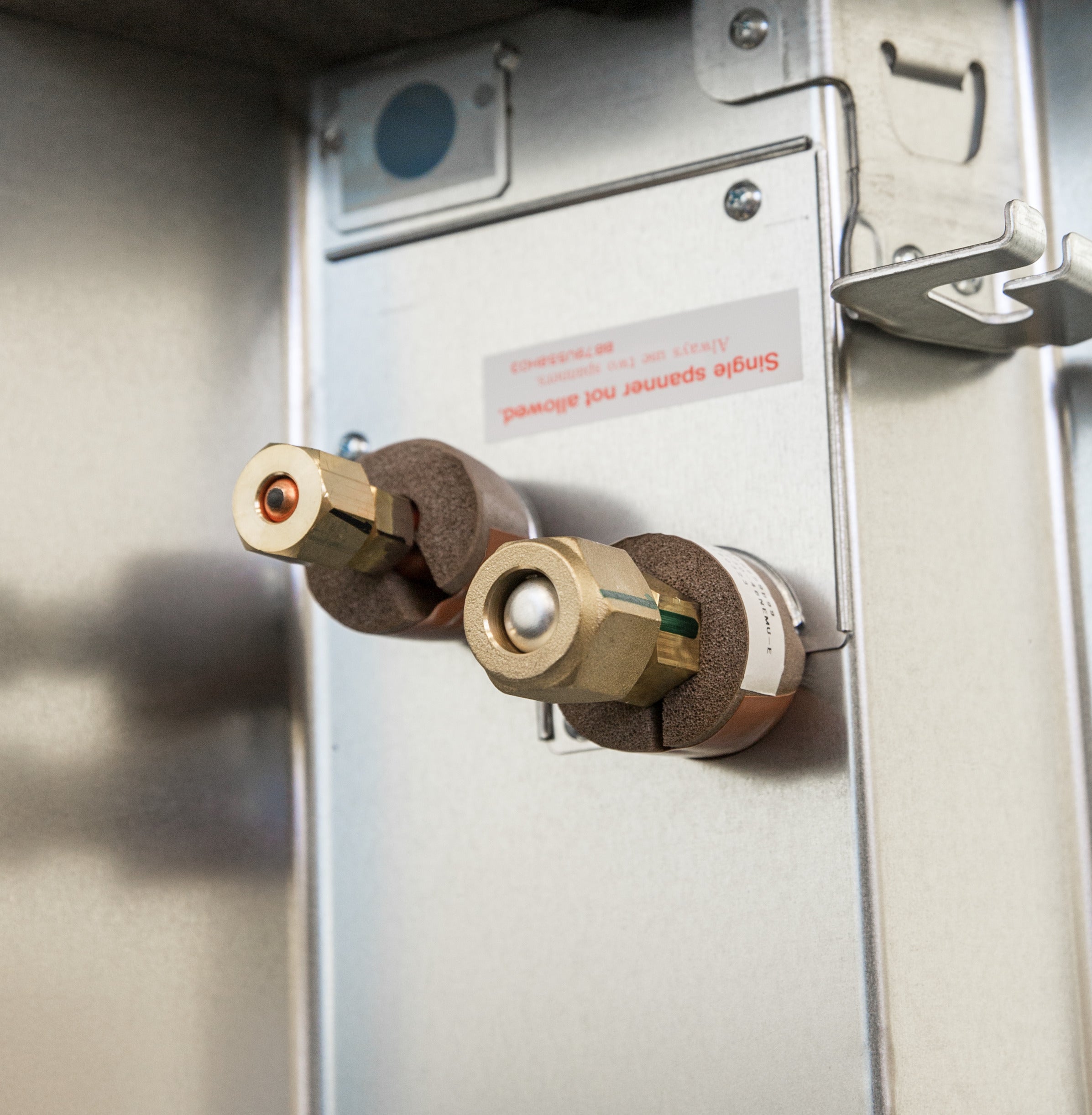

• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Weight: 57 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
