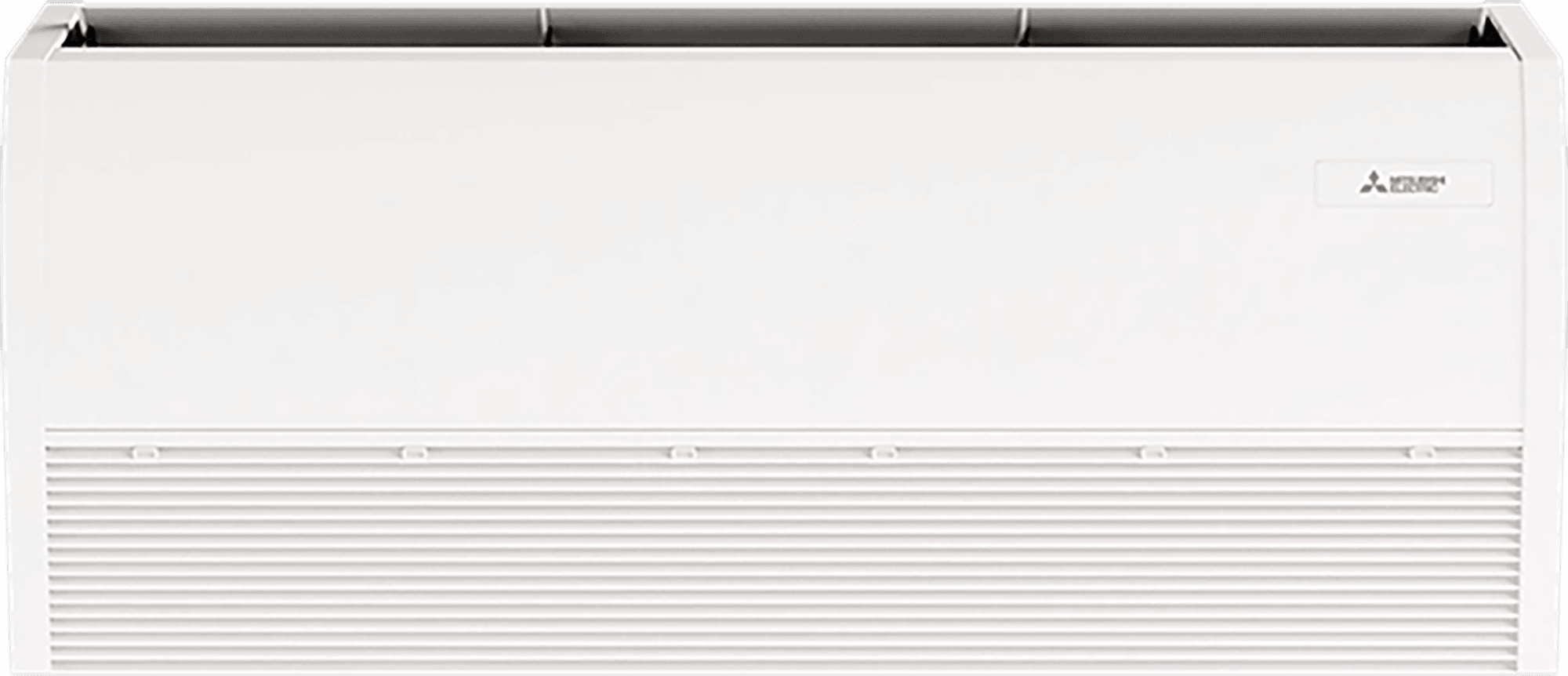

Mitsubishi Electric PCA-AK24NL Ceiling Suspended Air Handler 24,000 BTU

Product Description

The Mitsubishi Electric PCA-AK24NL ceiling suspended heat pump mini split indoor unit is designed for single-zone systems. Its sturdy design ensures quiet operation, providing comfort without disrupting the space. Ideal for structures that do not support wall mounting or ceiling cassettes. Requires a compatible Mitsubishi mini split outdoor condenser and accessories for installation.

• Dehumidification feature removes unwanted moisture, improving comfort and reducing mold growth.
• Multiple vane control options allow for optimal air distribution.
• Suitable for applications where wall mounting or ceiling cassettes are not feasible.

Product Highlights

This ceiling-suspended unit provides efficient heating and cooling with quiet operation and multiple vane control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PCA-AK24NL

Technical Specifications

• Type: Ceiling Suspended
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 24
• Installation Location: Indoor
• Cooling BTU: 24000
• Cooling Capacity: 21800 BTU
• Heating Capacity: 28000 BTU
• Moisture Removal: 4 Pints/Hour
• Maximum Air Flow: 670 CFM
• Minimum Air Flow: 495 CFM
• Minimum Sound Level: 33 dB
• Maximum Sound Level: 40 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 1/16 Inches
• Product Width: 50 3/8 Inches
• Product Depth: 26 3/4 Inches
• Product Weight: 71 Pounds
• Shipping Weight: 82 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Series: P-Series
• Model: PCA-NL
• SEER2: Up to 22.2
• HSPF2: Up to 9.9
