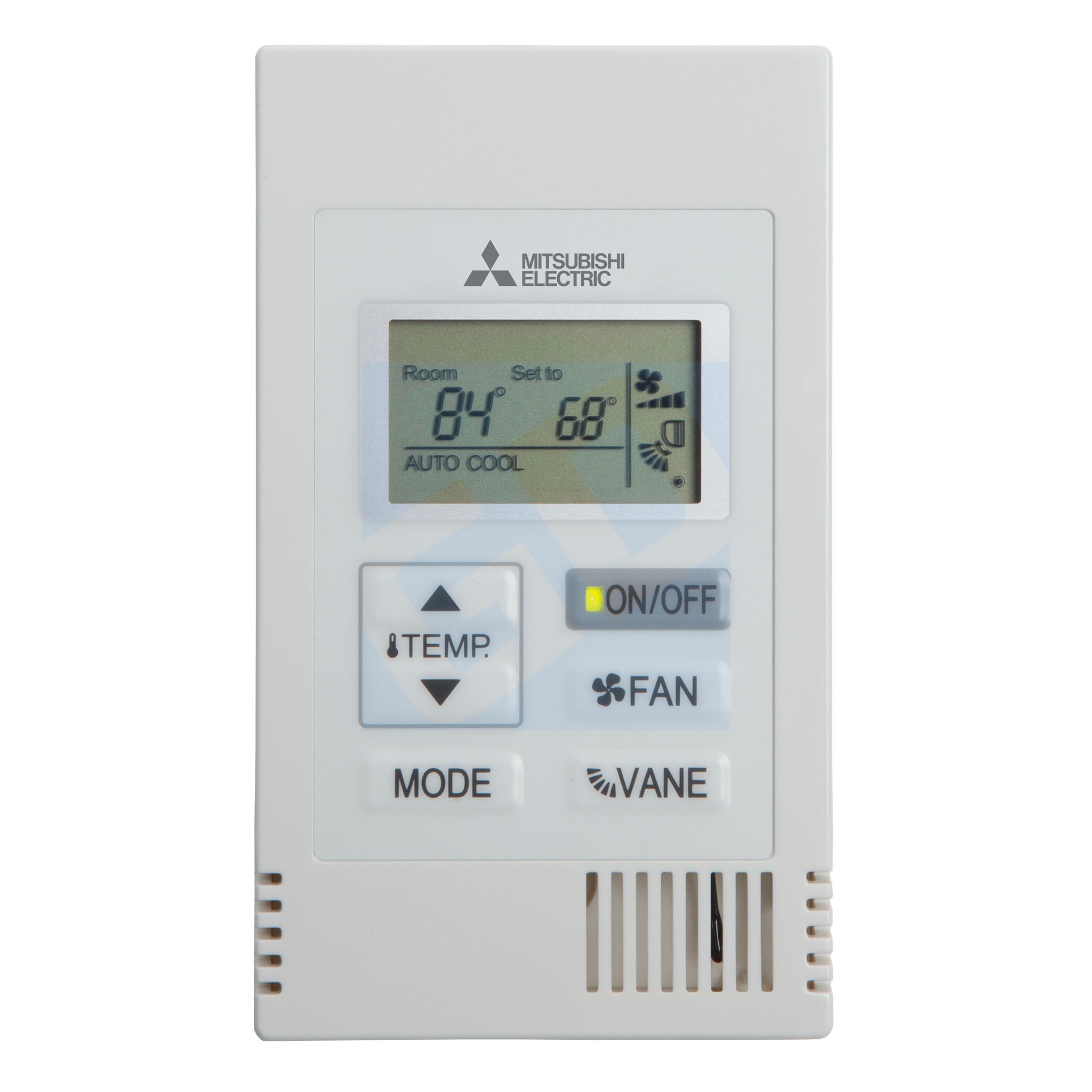

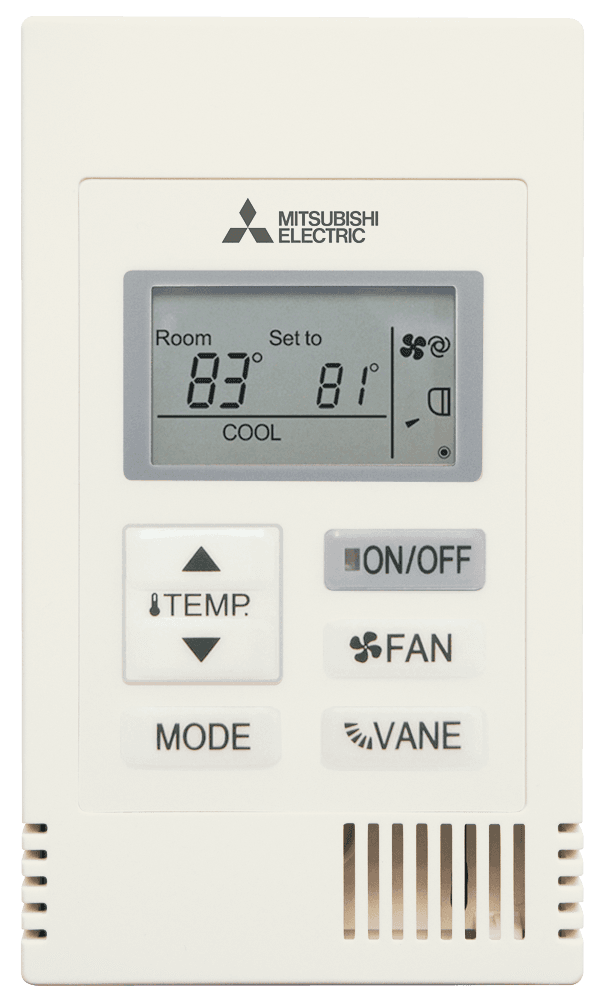

Mitsubishi Electric PAC-YT53CRAU MA Remote Controller

Product Description

The Mitsubishi Electric PAC-YT53CRAU MA Remote Controller provides straightforward control over your unit's operation mode, desired temperature, fan speed, and airflow direction. A single controller can manage up to 16 separate Mitsubishi mini split indoor units, making it easy to manage multiple zones. It uses two-wire, stranded, non-polar control wire for connecting TB15 terminal on an indoor unit.

• Controls group operation for up to 16 indoor units in a single group
• Supports both Fahrenheit and Celsius
• Set temperature, Fan speed setting, & Air flow direction

Product Highlights

The Mitsubishi Electric MA Remote Controller is designed for CITY MULTI Control System and Mitsubishi M-Series and P-Series Air Conditioners.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PAC-YT53CRAU
• Country of Origin: Unknown

Technical Specifications

• Item Model Number: PAC-YT53CRAU
• Part Number: PAC-YT53CRAU
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Controls group operation: up to 16 indoor units in a single group
• Supports: both Fahrenheit and Celsius
• Functions: Set temperature, Fan speed setting, & Air flow direction
• Operation mode: AUTO (R2-Series only), COOL, HEAT, FAN, DRYING, or SETBACK
• Wiring: Uses two-wire, stranded, non-polar control wire for connecting TB15 terminal on an indoor unit
• Series: Controls
• Type: Remote Controller
• Model: PAC-YT53CRAU
• Works with: The PAC-YT53CRAU-J controller is compatible with 29 Mitsubishi Electric indoor models
• Power Source: Wired
• Custom Bundle: No
• MPN: PAC-YT53CRAU
• Compatible Product: Mini-Split System, VRF System, HVAC System
• Smart Home Compatibility: None
• Function: Centralized Control, Zone Control
• Region Code: NA
• Control Style: Push Button
• Number of Zones: Single Zone
• Sensor Type: Temperature Sensor
• Voltage: Low Voltage
• Energy Star Compliant: No
• Compatible Brand: Mitsubishi Electric
• Bundle Description: N/A
• Display Screen: Yes
• Material: Plastic
• Installation Area: Indoor
• Wireless Range: Not Applicable
• Connectivity: Wired
• Country of Origin: Unknown
• Smart Home Protocol: Not Applicable
• Application: Commercial, Industrial, Residential
• Programmability: Limited
• Product Line: MA Remote Controller
• Product size: 70 (W) × 120 (H) × 14.5 (D) mm (2-3/4 × 4-3/4 × 9/16 [in]) (not including the protruding part)
• Net weight: 0.1 kg (1/4 lb.)
• Rated power supply voltage: 12 VDC (supplied from indoor units)
• Power consumption: 0.3 W
• Usage environment: ...
