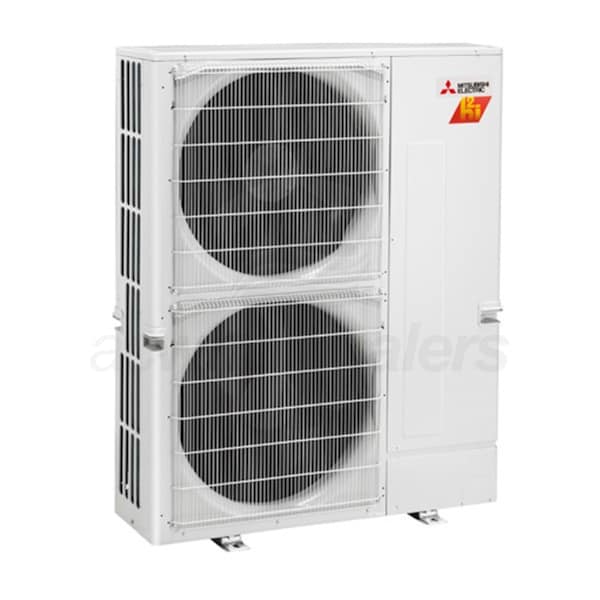

Mitsubishi Electric MXZ-8C48NAHZ-U1 Ductless Multi Zone Hyper Heat Pump Condenser 48000 BTU

Product Description

The Mitsubishi Electric MXZ-8C48NAHZ-U1 is a robust outdoor condenser unit designed for a ductless multi-zone heating and cooling system, requiring the purchase of indoor units separately for operation.

• Supports up to eight indoor units for versatile temperature management.
• Features H2i technology, delivering heating at temperatures as low as -13 degrees F.
• Incorporates an integrated base pan heater to prevent freezing in cold climates.

Product Highlights

This hyper heat pump condenser offers reliable heating and cooling solutions, suitable for diverse outdoor conditions.

Product Information

Standard Information

• Type: Outdoor Condenser
• Product Line: M-Series H2i

Technical Specifications

• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 8
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Branch Box Required: Yes
• Base Pan Heater Included: Yes
• Cooling BTU: 48000
• Maximum Sound Level: 54 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 42 Amps
• Recommended Breaker Size: 50 Amps
• Maximum Line Length: 492 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 52.68 Inches
• Product Width: 41.35 Inches
• Product Depth: 14 Inches
• Shipping Weight: 286 Pounds
• ETL Listed: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
