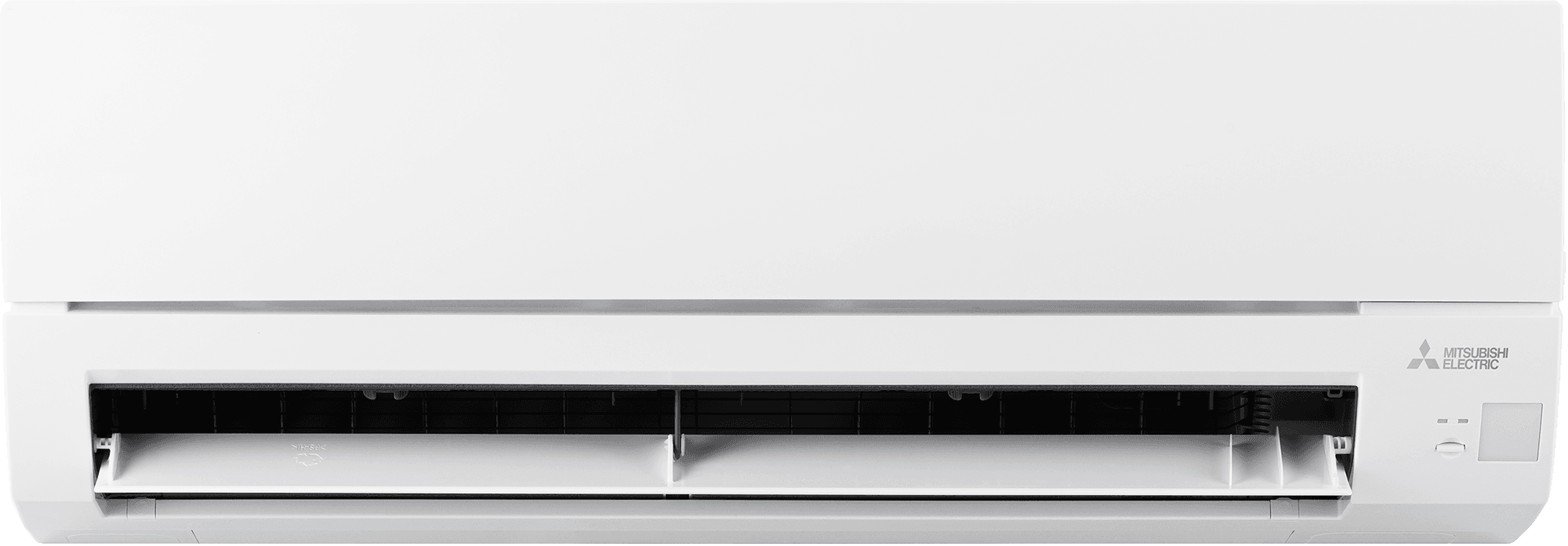

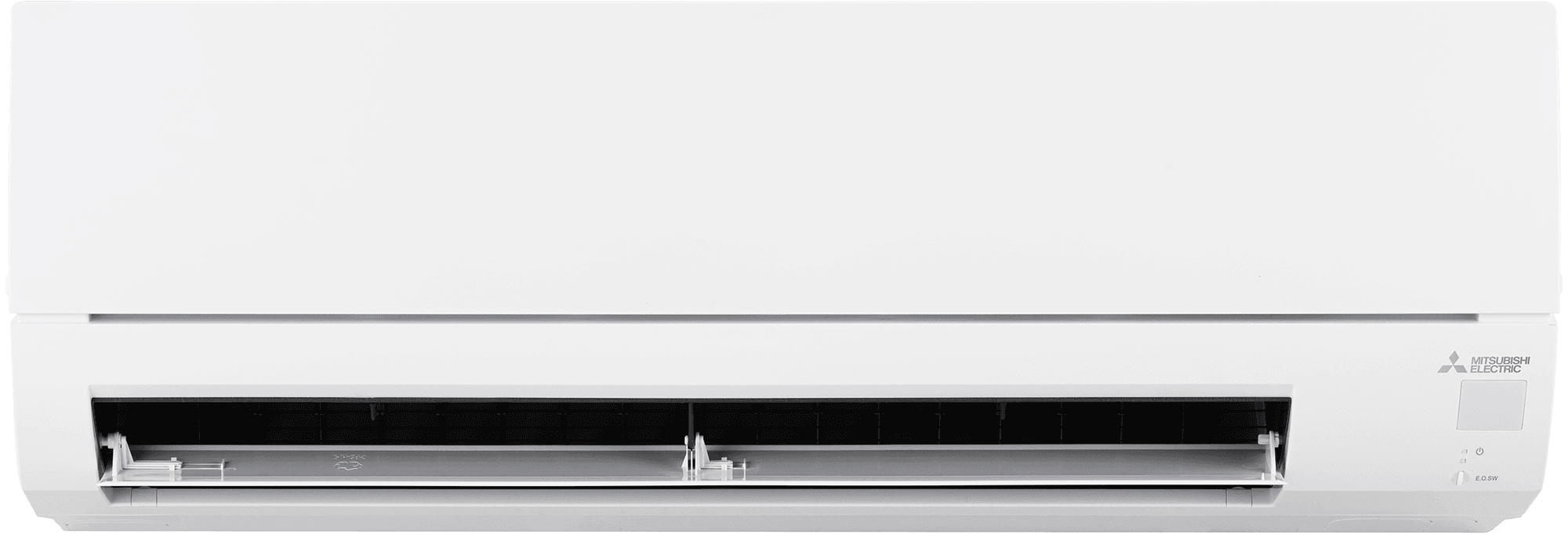

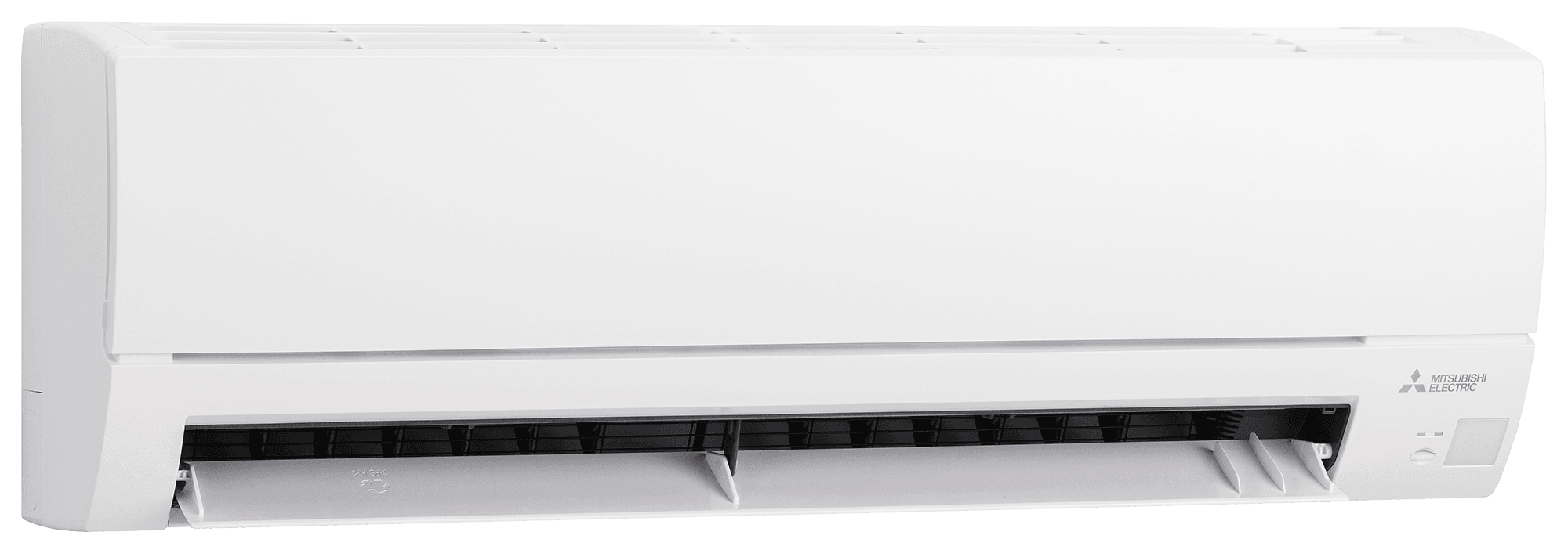

Mitsubishi Electric MSZ-WX18NL WX-Series Heat Pump AHU 18000 BTU

Product Description

The Mitsubishi Electric MSZ-WX18NL is a wall mounted heat pump mini split indoor unit for use in single-zone systems. The functional design ensures quiet operation. It features multiple operating modes, fan speeds, and airflow directions to fit the needs of nearly any room. It is suitable for primary heating and cooling or supplementing an existing system.

• Features an advanced filtration system.
• Includes Econo Cool mode for efficient cooling operations.
• Offers dehumidification to remove unwanted moisture.

Product Highlights

This unit provides personalized, energy-efficient comfort with customizable settings and advanced features. It pairs with a single-zone heat pump outdoor unit.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-WX18NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 18
• Installation Location: Indoor
• Cooling BTU: 18000 BTU/h
• Cooling Capacity: 17200 BTU
• Heating Capacity: 18000 BTU
• Moisture Removal: 5.2 Pints/Hour
• Maximum Air Flow: 473 CFM
• Minimum Air Flow: 249 CFM
• Minimum Sound Level: 31 dB
• Maximum Sound Level: 49 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 11.06 Inches
• Product Width: 33 Inches
• Product Depth: 9 Inches
• Shipping Weight: 23 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Series: MUZ-WX-NL Series
• Model: MSZ-WX
• SEER2: Up to 18
• HSPF2: Up to 8.5
• BTU Cooling Rating: 18,000 BTU/h
• BTU Heating Rating: 18,000 BTU/h
• CFM Airflow: 277-473 CFM
• EER2: 9.5
• ENERGY STAR Certified: No
• Number of Speeds: 4
• Packaged Depth: 13.25 in
• Packaged Height: 11.25 in
• Packaged Width: 35.5 in
• Tonnage: 1.5 Ton
• Voltage Rating: 208/230 V
• Amperage Rating: 1 A
• CFM Rating: 473/411/341/277 cfm Cooling, 453/376/311/253 cfm Heating
• Overall Height: 11.03 Inches
• Overall Length: 33 in
• Overall Width: 8.97 Inches
• Temperature Rating: 66 to 90 deg F
• Fuse Rating: 15 A
• Mounting Type: Wall
