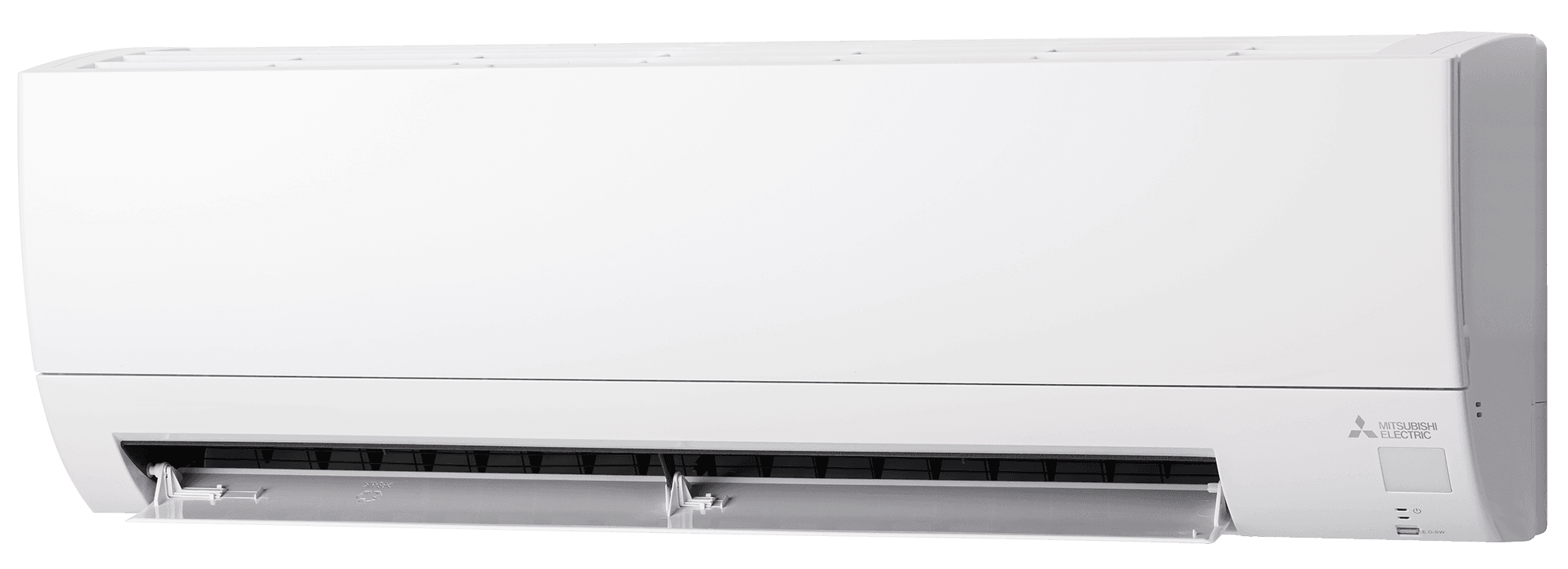

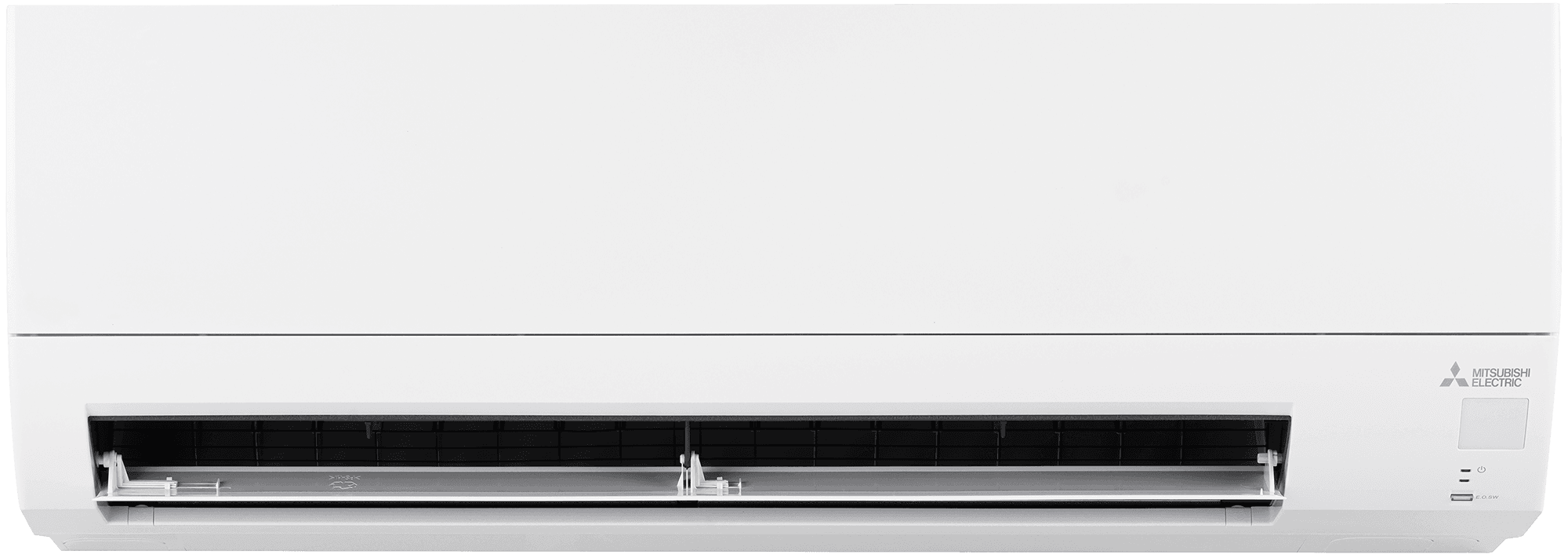

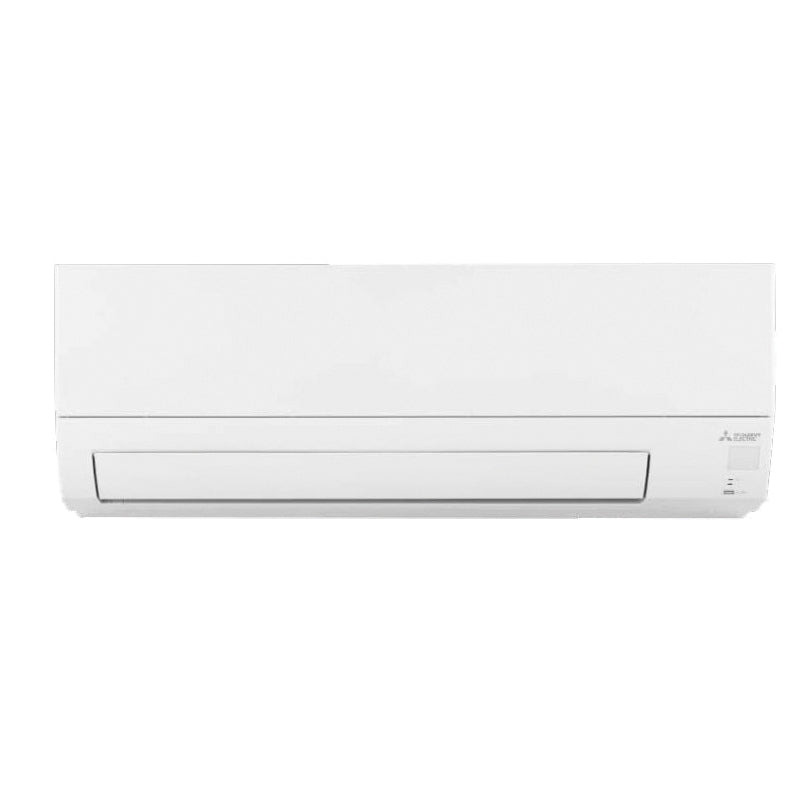

Mitsubishi Electric MSZ-HX12NL HX-Series Wall Mounted Unit - Single-Zone - 12k BTU - R-454B

Product Description

The MITSUBISHI ELECTRIC MSZ-HX12NL is a wall mounted heat pump mini split indoor unit for use in single-zone systems. The functional design ensures quiet operation. Installing a Mitsubishi wall mounted indoor unit is quick and easy thanks to their convenient mounting plate. With multiple operating modes and fan speeds, and airflow directions, this unit fits the needs of nearly any room.

• Advanced Filtration System
• Econo Cool Mode
• Dehumidification

Product Highlights

This unit features an advanced filtration system, Econo Cool mode, dehumidification, multiple vane control options, and a dual barrier coating.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-HX12NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 12
• Installation Location: Indoor
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• Moisture Removal: 2.6 Pints/Hour
• Maximum Air Flow: 475 CFM
• Minimum Air Flow: 151 CFM
• Minimum Sound Level: 22 dB
• Maximum Sound Level: 47 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Width: 33 Inches
• Product Depth: 9.25 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Series: M-Series
• Model: MSZ-HX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 22 dB(A)
• ENERGY STAR: Yes
• SEER2: Up to 20
• HSPF2: Up to 9.5
• Additional Information: 1-Zone, R-454B Refrigerant
• BTU Rating: 12000 Btu/hr Cooling, 12200 Btu/hr Heating
• CFM Rating: 475 cfm Cooling, 401 cfm Heating
• Connection Type: Flared
• EER Rating: 12.5
• Finish: Munsell 0.7PB 9.2/0.4
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• HSPF Rating: 10
• Mounting Type: Wall
• Number of Fan Speeds: 4
• Overall Width: 33 in
• Power Rating: 960 W Cooling, 990 W Heating
• SEER Rating: 20
• Size: 3/8 in Gas, 1/4 in Liquid
• Sound Level: 47 dBA Cooling, 43 dBA Heating
• Temperature Rating: 67 to 90 deg F
• Product Height: 11.04 Inches
• Overall Height: 11.03 Inches
• Overall Length: 9.25 Inches
