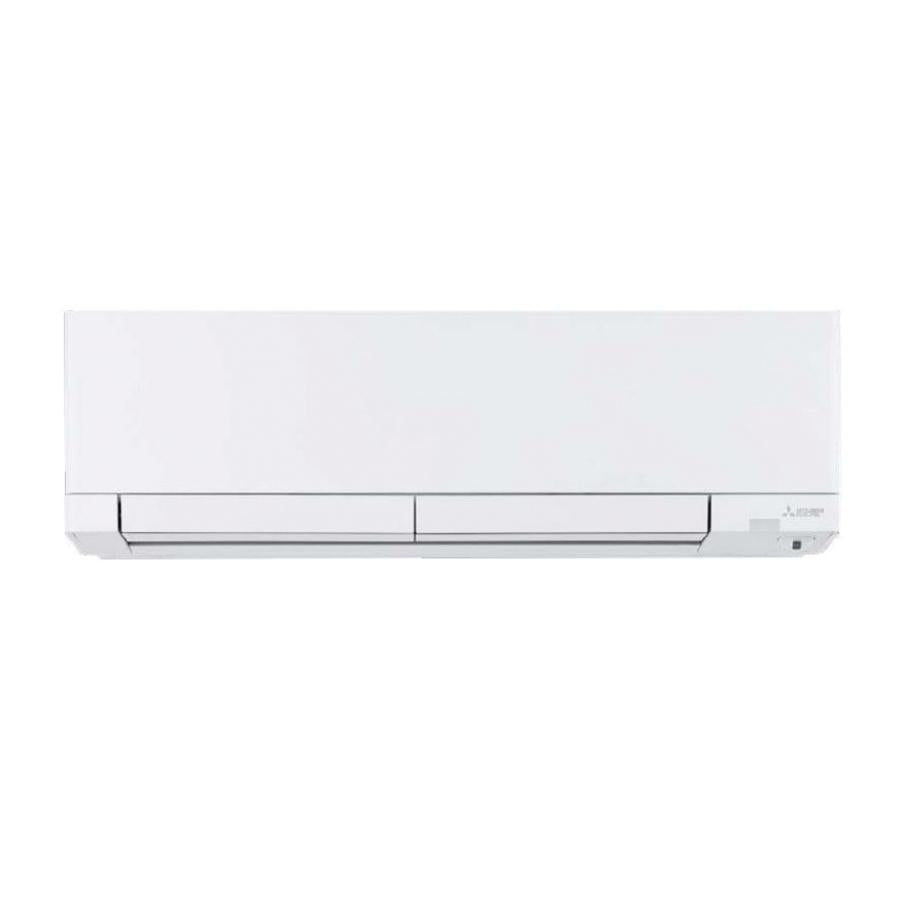

Mitsubishi Electric MSZ-FX24NL Indoor Multi-Split Air Conditioner

Product Description

The Mitsubishi Electric MSZ-FX24NL is an indoor multi-split air conditioner designed for efficient climate control. Operating at 208/230 V, this unit provides 2500 to 26500 Btu/hr cooling and 5500 to 36200 Btu/hr heating. It features an inverter drive and operates quietly, with sound levels ranging from 26 to 55 dBA. The unit is designed for wall mounting and finished in white.

• Equipped with a 3D i-see Sensor that scans the room to adjust temperature and airflow based on occupancy.
• Features a Dual Barrier Coating to reduce the accumulation of dust and contaminants on the heat pump's inner surface.
• Offers multiple control options, including a remote controller, comfort app, and third-party interfaces.

Product Highlights

This Mitsubishi Electric air conditioner provides efficient, customizable climate control with advanced sensor technology and multiple control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-FX24NL

Technical Specifications

• Type: Indoor Unit
• Voltage: 208/230 V
• Current: 1 A
• Cooling Power: 3370 W
• Heating Power: 3590 W
• Frequency: 60 Hz
• Phase: 1 ph
• Cooling Capacity: 2500 to 26500 Btu/hr
• Heating Capacity: 5500 to 36200 Btu/hr
• Cooling Airflow: 272/378/484/586/720 cfm
• Heating Airflow: 272/353/470/586/749 cfm
• EER Rating: 13.35
• SEER: 23.5
• HSPF: 10.5
• Connection Type: Flared Connection
• Refrigerant: R-454B
• Drive: Inverter Drive
• Cooling Sound Level: 27/34/41/47/53 dBA
• Heating Sound Level: 26/32/40/47/55 dBA
• Mounting Type: Wall Mounting
• Color: White
• Cooling Temperature: 67 to 90 deg F
• Heating Temperature: 70 to 80 deg F
• Overall Length: 9.75 in
• Overall Width: 39.28125 in
• Overall Height: 12 in
