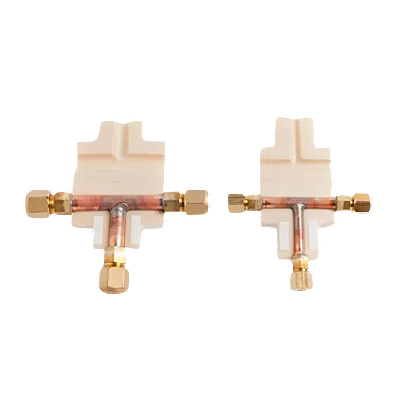

Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection)

Product Description

The Mitsubishi Electric MSDD-50AR2-E is a high-quality branch pipe kit designed for use with Mitsubishi Electric multi-zone mini split and City Multi® systems. This distribution kit is essential for splitting refrigerant flow from a single outdoor unit or branch box to multiple indoor units, ensuring balanced pressure and optimized performance across the entire HVAC system. Engineered with precision-formed copper and high-grade insulation, the MSDD-50AR2-E minimizes turbulence and noise during refrigerant transition. Its flare-connection design allows for a secure, leak-free installation without the need for brazing in the field, making it an efficient choice for professional installers.

• Ensures equal refrigerant distribution for consistent cooling and heating performance
• High-quality copper construction with pre-formed branches for maximum durability
• Includes custom-fit thermal insulation to prevent condensation and energy loss
• Flare-type connections simplify installation and reduce labor time

Product Highlights

As a critical component for multi-indoor unit configurations, the MSDD-50AR2-E is built to withstand the high-pressure demands of modern R-410A and R-454B refrigerant systems. The kit includes both liquid and gas line distributors, along with the necessary insulation covers to maintain thermal efficiency at the joint. By utilizing the MSDD-50AR2-E, technicians can ensure that each indoor unit receives the correct mass flow of refrigerant, protecting the compressor from liquid slugging and extending the overall lifespan of the system. This kit is a genuine Mitsubishi Electric accessory, guaranteed to meet the strict engineering standards required for their premium climate control solutions.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSDD-50AR2-E
• Product Category: HVAC Installation Accessory

Technical Specifications

• Product Type: Branch Pipe / Joint Kit
• Connection Type: Flare
• Compatible Systems: Multi-Zone Mini Split / VRF
• Number of Branches: 2-Way Split
• Material: Oxygen-Free Copper (Deoxidized)
• Refrigerant Compatibility: R-410A / R-454B
• Insulation Material: Cross-linked Polyethylene Foam
• Liquid Line Size: 1/4" / 3/8" (Application Dependent)
• Gas Line Size: 1/2" / 5/8" (Application Dependent)
• Net Weight: 2.4 lbs
• Shipping Weight: 3.1 lbs
• Dimensions (Boxed): 11.5" L x 6.2" W x 4.8" H
