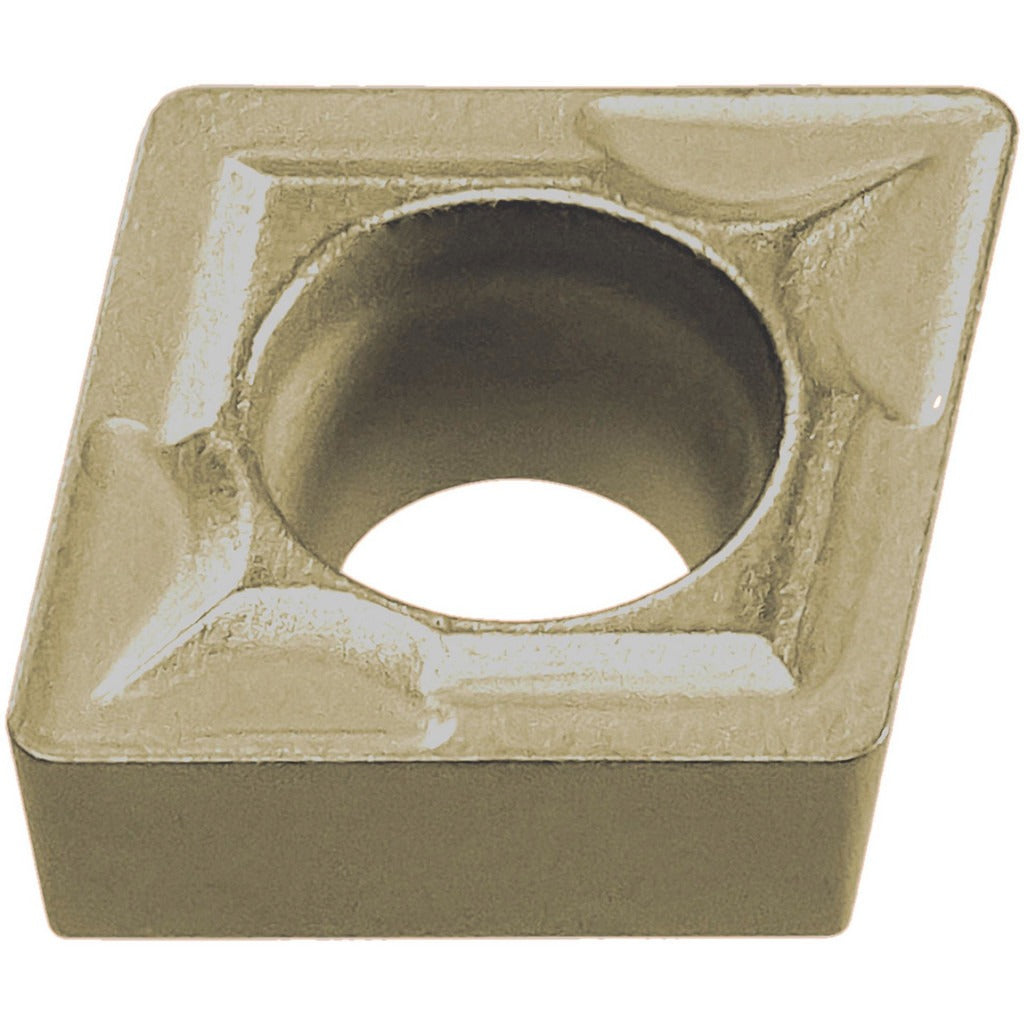

Mitsubishi 602626 Ccmt Turning Insert Cermet Pvd

Product Description

The MITSUBISHI 602626 is a CCMT-style indexable turning insert designed for precision metal cutting on CNC lathes and turning centers. Built from cermet substrate with a PVD coating, this insert carries manufacturer grade MP3025 and is engineered for high wear-resistance through high toughness on steel workpieces. It features an 80-degree diamond (rhombic) insert shape, a 7-degree relief angle, a corner radius of 0.40 mm (0.0156 inches), and provides 2 cutting edges per insert. Licensed machinists and CNC operators install this insert in compatible CCMT toolholders as part of routine insert indexing or replacement.

This insert is suited for finish to semi-finish turning of steel (ISO material group P). The pressed chip breaker geometry supports consistent chip control across a range of feed rates and depths of cut. With a neutral hand designation, it fits standard right-hand and left-hand CCMT-pocket toolholders configured for neutral orientation. Typical applications include shaft turning, facing, and contour work on production or job-shop lathes handling steel and similar ferrous materials.

Key Features

• CCMT insert style with 80-degree diamond (rhombic) shape for strong cutting edge geometry
• Cermet substrate with PVD coating — grade MP3025 for wear-resistance on steel
• Corner radius of 0.40 mm (1/64 inch) for controlled surface finish
• Positive side clearance with 7-degree relief angle reduces cutting forces
• Pressed chip breaker for reliable chip management in continuous cuts
• 2 cutting edges per insert for cost-effective indexing

Compatibility

Designed as a direct-fit replacement for CCMT21.51 (ANSI) or CCMT060204 (ISO) insert pockets in standard CCMT-style turning toolholders accepting neutral-hand inserts with a 1/4-inch inscribed circle.

Installation Notes

Insert replacement and indexing should be performed by a qualified machinist or CNC operator with the machine powered off and in a locked-out state per applicable OSHA lockout/tagout procedures. Use a torx or hex key of the correct size for the toolholder clamp screw — do not overtighten, as this can crack the insert or damage the pocket seat. Inspect the pocket seat and clamping components for wear or debris before seating a new insert. Handle cermet inserts carefully to avoid chipping the cutting edges prior to use.
