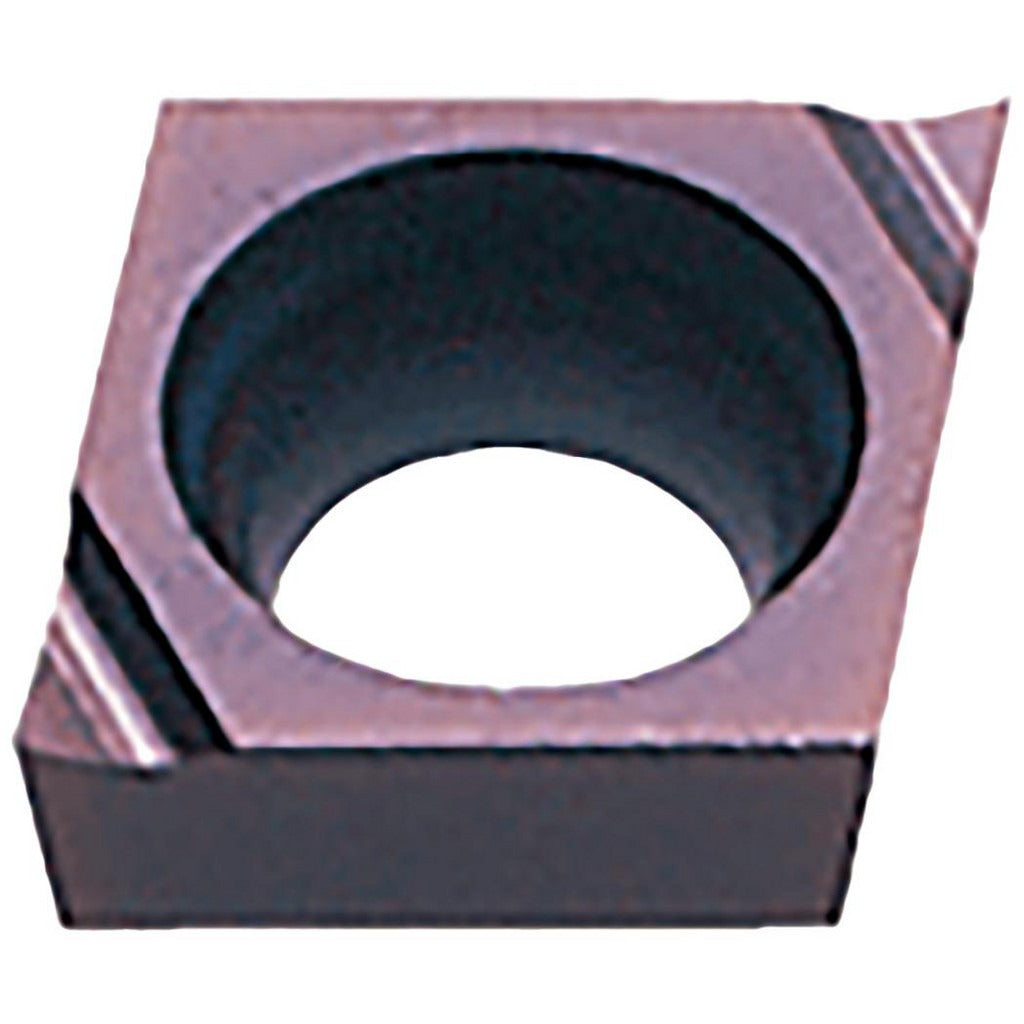

Mitsubishi 229331 Turning Insert CCGT04T002LFVP15TF Carbide

Product Description

The MITSUBISHI 229331 is a CCGT-style carbide turning insert with an 80-degree diamond (rhombic) shape, designed for finishing operations in CNC and manual turning applications. Coated with AlTiN via a PVD process, it delivers moderate wear resistance combined with toughness across a broad range of workpiece materials. The left-hand insert features a positive rake geometry with a honed cutting edge, an inscribed circle of 0.172 inches, and a corner radius of 0.008 inches. It is held by screw and is suited for turning, facing, and boring operations performed by machinists and CNC operators in production or job-shop environments.

This insert is primarily applied to steel, stainless steel, cast iron, and superalloys including titanium. The LF chip breaker geometry targets finishing cuts, producing controlled chips at light depths of cut and fine feeds. Its positive side clearance and CCGT geometry make it appropriate for both external and internal diameter work where surface finish and dimensional accuracy are priorities. The insert conforms to ANSI and ISO standards under size code 04T002.

Key Features

• CCGT 80-degree diamond insert shape for stable, precise finishing cuts
• AlTiN PVD coating provides wear resistance and toughness across steel, stainless steel, and cast iron
• Positive rake geometry with honed cutting edge reduces cutting forces and improves surface finish
• LF chip breaker designed for finishing operations on a wide range of workpiece materials
• Left-hand configuration with screw holding method for secure, repeatable seating
• Two cutting edges per insert; compatible with turning, facing, and boring applications

Compatibility

Designed as an OEM-style replacement or standard CCGT04T002 insert for toolholders and boring bars accepting CCGT-style screw-clamp inserts per ANSI and ISO size code 04T002. ISO catalog reference CCGT04T002L-F. Suitable for multi-use applications including turning, facing, and boring.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the correct Torx or hex key driver specified by the toolholder manufacturer to seat the clamping screw; do not overtighten. Inspect the toolholder pocket for chips or damage before seating the insert to ensure proper contact and runout.
