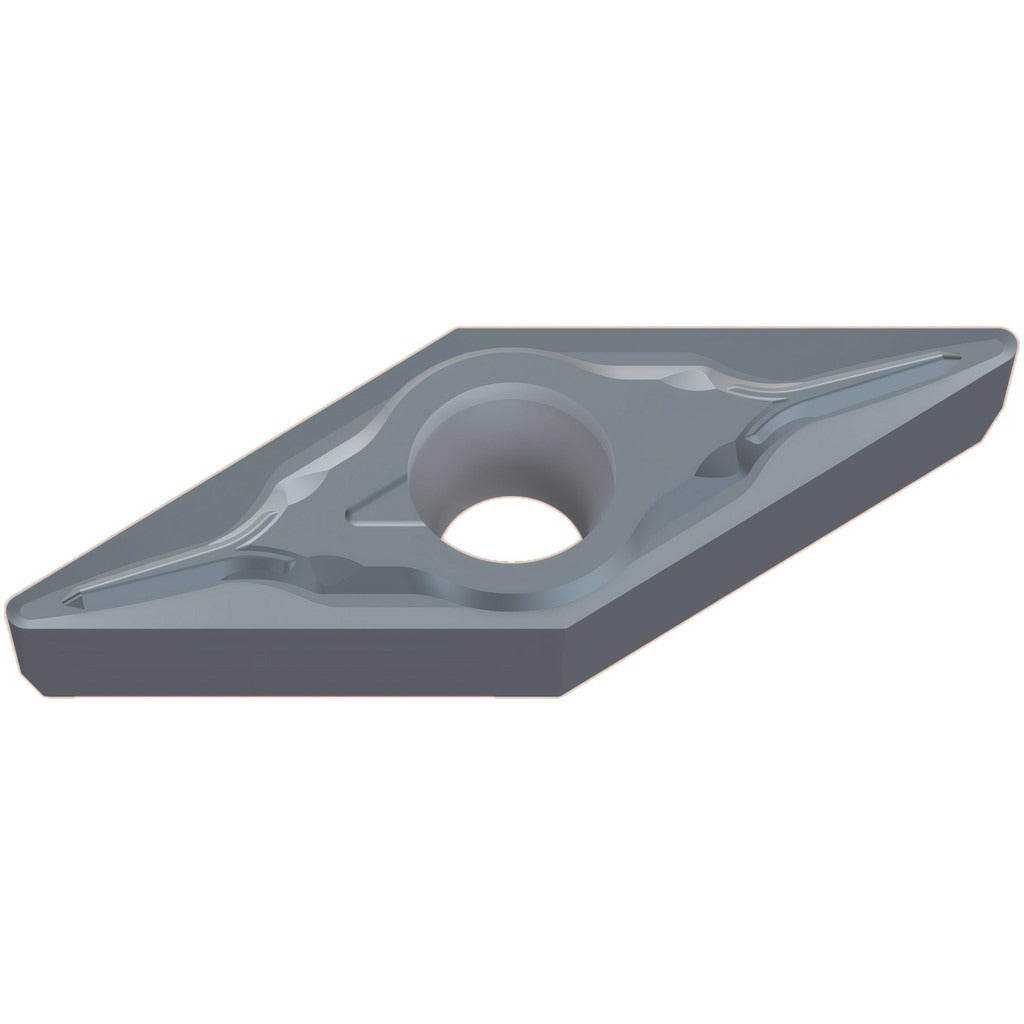

Mitsubishi 10576571 Vcgt Turning Insert MP9015 Carbide

Product Description

The MITSUBISHI 10576571 is a VCGT-style indexable turning insert manufactured in MP9015 grade carbide with a PVD coating. It features a rhombic insert shape with a 35-degree included angle and a 7-degree relief angle. The corner radius measures 0.20 mm (0.0079 inches), and the insert carries a neutral hand designation. With 2 cutting edges and an LS chip breaker geometry, this insert is suited for precision turning operations where tight tolerances and controlled chip evacuation are required. It is installed by machinists and CNC lathe operators working with compatible toolholders in production and job-shop environments.

This insert is appropriate for external and internal turning applications on CNC lathes and manual turning centers. The VCGT insert style with G tolerance code is typically applied in finishing and semi-finishing cuts on non-ferrous and other machinable materials. The MP9015 grade with PVD coating provides wear resistance suited for light to moderate material removal. The LS chip breaker geometry supports consistent chip control in fine-depth-of-cut scenarios.

Key Features

• Insert style VCGT with rhombic shape and 35-degree included angle
• MP9015 grade PVD-coated carbide construction
• 0.20 mm corner radius for fine finishing performance
• 7-degree relief angle (clearance code C) for positive cutting action
• LS chip breaker for controlled chip evacuation in light cuts
• 2 cutting edges per insert; neutral hand orientation

Compatibility

Designed for use in VCGT-compatible turning toolholders sized for a 1/4-inch inscribed circle insert with 1/8-inch insert thickness. Verify toolholder specifications against insert size code 2 and tolerance code G before installation.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine before seating or indexing the insert. Use the appropriate torque wrench and insert clamp hardware specified by the toolholder manufacturer — do not overtighten the clamping screw. Inspect the insert seat and toolholder pocket for chips or debris before seating a new insert edge.
