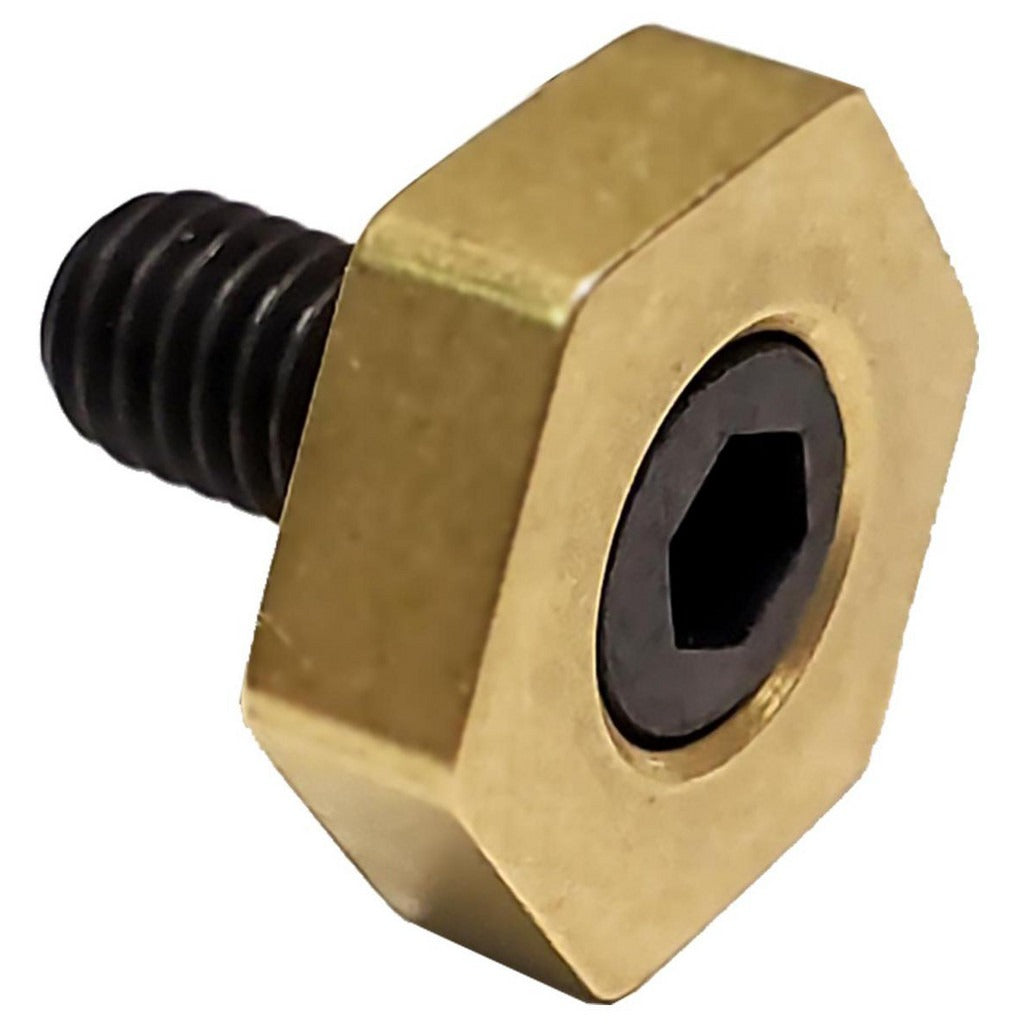

Mitee-bite 50206 Cam Action Clamp M6 Stud 0.812 Inch

Product Description

The MITEE-BITE 50206 is a cam action clamp designed for precision workholding applications in machining and fixture setups. The cam action mechanism delivers quick, repeatable clamping force with minimal setup time, making it a practical choice for CNC machining centers, milling fixtures, and production tooling. The clamp features an overall width of 0.812 inches and an M6 stud thread size, fitting standard T-slots and fixture plates commonly found in machine shop environments. Licensed machinists and tooling technicians are the primary installers of this hardware.

This clamp is suited for light-duty to medium-duty workholding in both job shop and production environments. Its compact 0.812-inch width allows placement in tight fixture layouts where larger clamps would interfere with toolpaths or adjacent workholding components. The M6 stud thread is a metric standard widely used in European-style and ISO-compliant fixture systems. This item is sold in a package quantity of 10, making it appropriate for multi-station fixture builds or stocking a tool crib.

Key Features

• Cam action design provides quick clamping and release without the need for wrenches on the clamp body
• Overall width of 0.812 inches suits tight fixture layouts and close-tolerance setups
• M6 stud thread size is compatible with metric fixture plates and standard T-slot hardware
• Package quantity of 10 supports multi-clamp fixture builds or bulk stocking
• Lightweight at 0.025 pounds per clamp, minimizing added mass in precision setups

Compatibility

Designed as a workholding replacement or supplemental clamp for fixture systems using M6 stud thread hardware and T-slot or fixture plate configurations accepting a 0.812-inch clamp width.

Installation Notes

Installation is typically performed by a machinist or tooling technician during fixture assembly or changeover. Ensure the machine is powered down and any associated spindle or axis motion is locked out before adjusting workholding components. Use the correct M6 stud torque per the fixture plate manufacturer guidelines, and verify clamp seating and workpiece contact before resuming cutting operations. Do not exceed the rated clamping capacity of the fixture plate or T-slot hardware.
