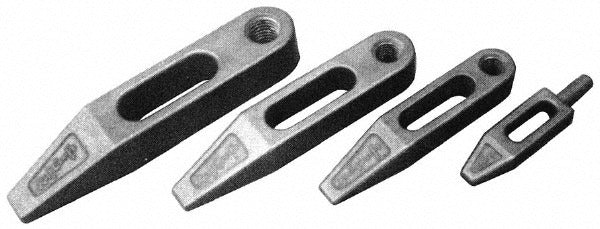

Mitee-bite 35400 Clamp Strap Stainless Steel 3/4-10 Stud

Product Description

The MITEE-BITE 35400 is a stainless steel clamp strap designed for workholding applications in machining and fixturing operations. Built from 17-4PH stainless steel, it delivers corrosion resistance and high tensile strength in demanding shop environments. The strap features a tapered nose profile and a plain heel, with a tapped 3/4-10 stud hole for secure clamping force. At 7 inches overall length, 1.4 inches wide, and 1.0625 inches tall, it provides a rigid, low-profile hold suitable for precision setups on CNC machines, mills, and manual machining centers. Machinists and toolroom technicians are the primary installers.

This clamp strap is used in workholding setups where a compact, reliable strap clamp is needed to secure workpieces on machine tables or fixture plates. The tapered nose allows engagement close to the workpiece edge, reducing overhang and improving clamping rigidity. The 1.5 inch travel range and 25/32 inch slot width accommodate a range of workpiece heights and T-slot configurations. It is well suited for both production fixturing and one-off setups in job shop environments.

Key Features

• 17-4PH stainless steel construction for corrosion resistance and high strength
• Tapered nose profile for close-to-edge workpiece engagement
• 1.5 inches of travel for adjustable clamping height
• Tapped 3/4-10 stud hole for direct stud bolt engagement
• Slot width of 25/32 inches (0.7813 inches) for T-slot compatibility
• Plain heel design for flat-surface seating

Compatibility

Designed as an OEM-style replacement or direct-fit strap clamp for standard workholding setups using 3/4-10 stud bolt systems on machine tables and fixture plates.

Installation Notes

Installation is performed by machinists or toolroom technicians as part of a workholding fixture assembly. Ensure the machine table T-slots are clean and free of chips before seating the clamp. Power down and lock out the machine before adjusting or repositioning any workholding components. Use calibrated torque equipment appropriate to the stud size when tightening the 3/4-10 stud bolt to avoid distorting the workpiece or overloading the strap.
