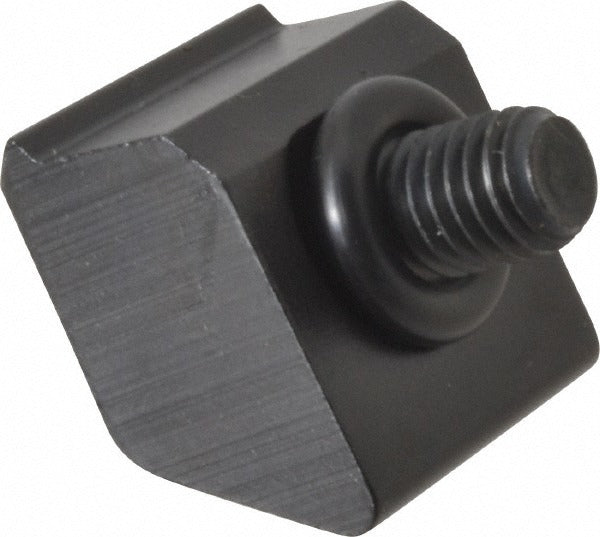

Mitee-bite 26080 Toe Clamp Serrated Steel 1/2-13

Product Description

The MITEE-BITE 26080 is a standard-style screw mount toe clamp designed for workholding applications on milling machines, machining centers, and similar CNC or manual machine tool setups. Constructed from steel with a serrated edge surface, this clamp delivers a rated holding force of 12,000 pounds and accepts a 1/2-13 screw thread. It measures 1.5 inches wide and 0.375 inches high, with an extension length of 0.77 inches and a throw of 0.075 inches. Each package contains two clamps. This part is installed by machinists and toolroom professionals in production and job-shop environments.

The MITEE-BITE 26080 toe clamp is suited for fixturing raw stock, castings, or finished workpieces against a step or ledge on a machine table or fixture plate. The serrated contact surface increases grip and resists lateral movement under cutting loads. Typical applications include milling, drilling, boring, and similar metal-cutting operations where low-profile clamping is required to keep the clamp body clear of tool paths. Two clamps are included per package, supporting paired or mirrored setups.

Key Features

• 12,000 lb rated holding force for secure workholding under heavy cutting loads
• Serrated edge surface increases grip and resists workpiece shift
• Low-profile design at 0.375 inches high keeps clamp clear of tool paths
• 1/2-13 screw thread compatible with standard T-slot hardware and fixture components
• 0.077 inches throw allows adjustment against varying workpiece edges
• Two clamps included per package for paired fixturing setups

Compatibility

Designed as a standard-style toe clamp for use with machine table T-slots and fixture plates that accept 1/2-13 screw thread hardware.

Installation Notes

Installation is performed by machinists or toolroom personnel. Power down and lock out the machine before adjusting or repositioning clamps. Tighten the clamping screw to the torque specified for 1/2-13 fasteners per your facility or fixture design standards — do not exceed the rated torque of 1,300 inch-pounds (108.33 foot-pounds). Ensure the serrated face is fully seated against the workpiece edge before applying final torque.
