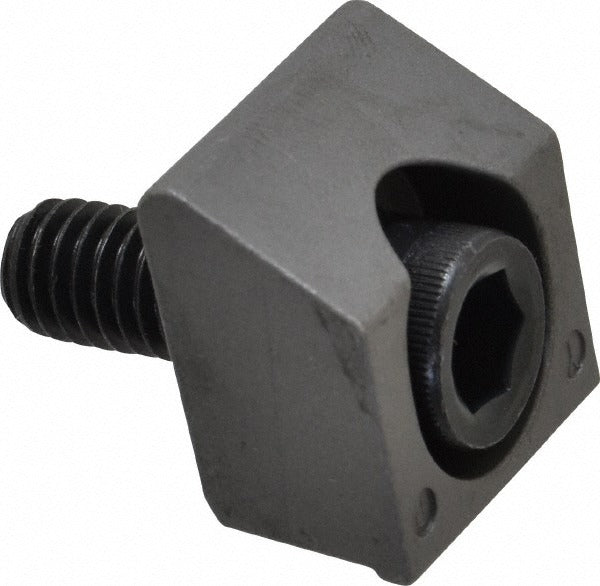

Mitee-bite 26075 Toe Clamp Screw Mount 6000 Lb

Product Description

The MITEE-BITE 26075 is a standard-style screw mount toe clamp designed for workholding applications on milling machines, machining centers, and similar setups. Each clamp measures 1 inch wide and 0.25 inches high with a 0.72-inch extension length and a 0.05-inch throw, allowing precise clamping against a workpiece edge. The 3/8-16 screw thread drives the clamping force, delivering a rated holding force of 6,000 pounds at 360 inch-pounds of torque. Machined from steel with a smooth edge surface, these clamps are built to handle the demands of production and prototype machining environments. The package contains 4 clamps.

These toe clamps are suited for use in manual and CNC machining setups where low-profile workholding is required. The standard style and smooth contact surface make them appropriate for securing flat-edged stock directly to a fixture plate or T-slot table. Machinists and toolroom technicians use clamps of this type when part geometry prevents overhead clamping or when minimizing clamp height is critical to tool clearance. The 0.05-inch throw is optimized for tight, repeatable part location.

Key Features

• 6,000 pounds holding force per clamp for reliable workpiece retention
• 3/8-16 screw thread for compatibility with standard toolroom fasteners
• 0.05-inch throw for precise, repeatable edge clamping
• 0.25-inch clamp height supports low-profile, clearance-critical setups
• Smooth edge contact surface protects finished or semi-finished workpiece edges
• Steel construction for durability in production machining environments
• Package of 4 clamps included per order quantity

Compatibility

Designed as an OEM-style replacement and standard workholding component for use with fixture plates, T-slot tables, and machining center setups requiring 3/8-16 screw mount toe clamps.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and secure all machine motion before setting or adjusting clamps. Torque the clamping screw to the rated specification using a calibrated torque wrench to achieve the stated holding force. Inspect clamp seating and workpiece contact before initiating a cutting cycle.
