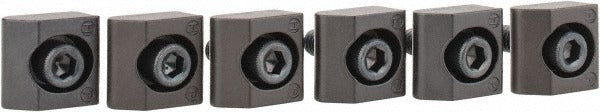

Mitee-bite 26050 Serrated Steel Toe Clamp 1/4-20 6 Pack

Product Description

The MITEE-BITE 26050 is a standard-style screw mount toe clamp machined from steel with a serrated edge surface for positive workpiece grip. Each clamp measures 0.75 inches wide and 0.15 inches high, with an extension length of 0.57 inches and a throw of 0.024 inches. The 1/4-20 screw thread delivers up to 3,600 pounds of holding force at 174 inch-pounds (14.5 foot-pounds) of torque. This package contains six clamps, making it a practical restocking quantity for machine shops, toolrooms, and production fixturing setups.

These toe clamps are suited for low-profile workholding applications on CNC machining centers, manual mills, and fixture plates where minimal clamp height is critical. The serrated contact edge bites into the workpiece or fixture ledge to resist lateral movement under cutting forces. Machinists, toolmakers, and fixture builders use this style of clamp when clearance above the part surface is limited and a direct screw-down approach is preferred over step blocks or strap clamps.

Key Features

• 3,600 pounds holding force per clamp at rated torque
• Serrated edge surface resists lateral slip during machining operations
• Low-profile design at 0.15 inches high for tight-clearance setups
• 0.024 inches of throw allows fast engagement and release cycles
• 1/4-20 screw thread for compatibility with standard T-slots and fixture plates
• Six clamps included per package for convenient bench or tool crib stocking

Compatibility

Designed as an OEM-style replacement and standard fitment for T-slot fixture plates and machining center tables accepting 1/4-20 screw-mount toe clamp hardware.

Installation Notes

Installation is performed by machinists or toolmakers during workholding setup on milling or machining equipment. Ensure the machine is powered down and the spindle is at a full stop before adjusting or repositioning clamps. Apply torque to the 1/4-20 screw using a calibrated torque wrench, not exceeding the rated 174 inch-pounds to avoid thread strip or clamp deformation. Inspect the serrated contact surface for wear or damage before each use.
