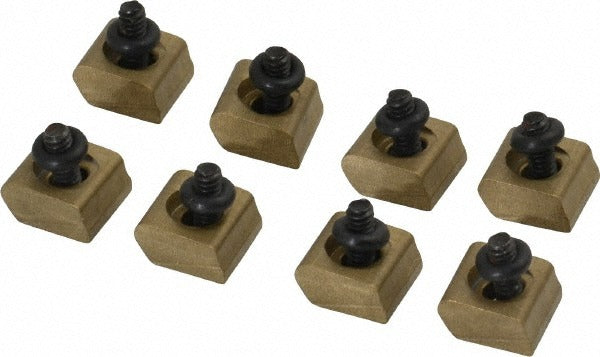

Mitee-bite 26015 Brass Toe Clamp 4-40 Thread 8 Pack

Product Description

The MITEE-BITE 26015 is a standard-style screw mount toe clamp manufactured from brass with a smooth edge surface. It uses a 4-40 screw thread and delivers 200 pounds of holding force with a torque value of 5 inch-pounds. The clamp body measures 3/8 inch wide and 0.075 inches high, with an extension length of 0.22 inches and a throw of 0.0075 inches. This package contains 8 clamps. Designed for precision workholding applications, these clamps are commonly installed by machinists and toolmakers on milling machines, CNC fixtures, and inspection setups where low-profile clamping is required.

The 26015 toe clamp is suited for light-duty fixturing applications where compact clamp height is critical. The smooth edge surface makes it appropriate for use against finished or sensitive workpiece edges. The brass construction resists corrosion and is non-sparking, making it a practical choice in environments where ferrous metal tooling is undesirable. Each clamp in the 8-piece package is identical, allowing full fixture builds from a single order.

Key Features

• 200 pounds holding force per clamp for secure workpiece retention
• 4-40 screw thread for compatibility with fine-thread fixturing setups
• Low-profile design at 0.075 inches clamp height for clearance-critical applications
• Smooth brass edge surface protects finished workpiece edges from marring
• 0.22 inch extension length with 0.0075 inch throw for precise engagement
• Package of 8 identical clamps for building out complete fixtures

Compatibility

Designed as a standard-style toe clamp for use in precision machining fixtures, milling vises, and CNC workholding setups requiring a 4-40 screw thread mount.

Installation Notes

Installation is performed by machinists or toolmakers as part of fixture assembly. Ensure the mounting surface and T-slot or tapped hole are clean and free of chips before seating the clamp. Apply torque with a calibrated torque driver to reach the specified 5 inch-pound value without exceeding it, as overtorquing a fine 4-40 thread can cause fastener failure. Power down and lock out any connected machine before adjusting or removing clamps from an active fixture.
