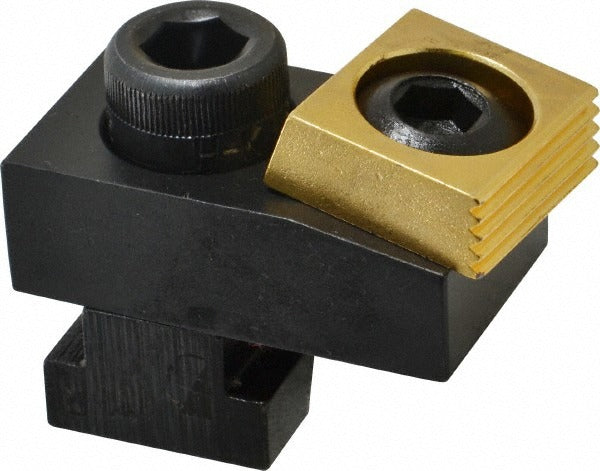

Mitee-bite 24148 T-slot Toe Clamp 4000 Lb Steel

Product Description

The MITEE-BITE 24148 is a steel T-slot toe clamp designed for workholding on machine tables equipped with standard T-slots. Built for use with 5/8 inch T-slots, this compact clamp delivers a holding force of 4,000 pounds (17,792.89 N), making it well suited for milling, drilling, and other machining operations where secure workpiece clamping is critical. The body measures 1.94 inches in overall length with a 1 inch overall height and a 1.12 inch width. A 1 inch wide by 0.38 inch high jaw face provides direct contact with the workpiece. Machinists and toolroom technicians are the primary installers of this clamp in CNC and manual machine tool setups.

The 24148 is intended for use with machine table T-slots in both manual and CNC machining environments. Its low-profile body height of 0.62 inches allows it to seat firmly against the table surface without interfering with toolpaths on low-clearance workpieces. The steel construction provides the rigidity needed for high-force machining applications where lighter materials would deform under load. This clamp is sold individually and is appropriate for setups requiring precise, repeatable clamping force across a T-slotted worktable surface.

Key Features

• 4,000 lb (17,792.89 N) holding force for secure workpiece retention during machining
• Fits standard 5/8 inch T-slots on machine tables
• Steel construction resists deformation under high clamping loads
• Low-profile 0.62 inch body height reduces interference with toolpaths
• 1 inch wide jaw face distributes clamping pressure evenly across the workpiece
• Compact 1.94 inch overall length suits tight fixture layouts

Compatibility

Designed for use with machine table T-slots sized at 5/8 inch. Suitable for standard T-slotted milling machine tables and similar machining workholding setups.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and lock out the machine before adjusting or installing clamps on the table. A torque specification of 65 ft-lb applies to the clamping fastener — do not exceed this value to avoid damaging the T-slot or clamp body. Verify that the T-slot dimensions match the clamp specification before tightening, and inspect the clamp body and jaw for wear or damage before each use.
