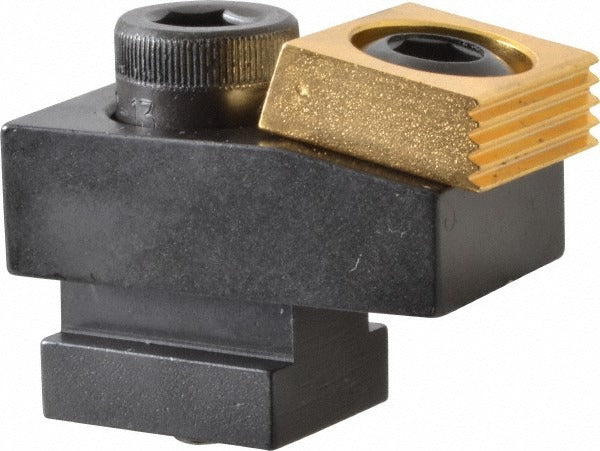

Mitee-bite 24128 T-slot Toe Clamp 4000 Lb Steel

Product Description

The MITEE-BITE 24128 is a steel T-slot toe clamp designed for securing workpieces to machine table T-slots during milling, drilling, and other machining operations. It delivers a holding force of 4000 pounds (17,792.89 N) and is built to fit 9/16-inch T-slots. With an overall length of 1.94 inches and an overall height of 1.0 inch, this clamp is compact enough for tight setups while still providing a firm, reliable grip on the workpiece. A torque specification of 65 ft-lb applies at the fastener. Licensed machinists and CNC setup technicians are the primary installers of this clamp.

The 24128 is intended for use with standard machine table T-slots, making it suitable for vertical machining centers, knee mills, and similar setups in job shops and production environments. The 1.0-inch jaw width and 0.38-inch jaw height allow the clamp to step down onto a workpiece edge with a low-profile stance. The 0.62-inch body height keeps the clamp clear of cutting tool paths in many common fixturing arrangements. This clamp is sold individually.

Key Features

• 4000 lb (17,792.89 N) holding force for secure workpiece retention
• Fits 9/16-inch T-slots on standard machine tables
• Compact 1.94-inch overall length minimizes footprint in tight setups
• Low 0.62-inch body height reduces interference with cutting paths
• 1.0-inch jaw width provides broad contact across the workpiece edge
• Steel construction for durability under heavy machining loads

Compatibility

Designed for use with machine table T-slots sized at 9/16 inch, as found on standard vertical mills, machining centers, and similar metalworking equipment.

Installation Notes

Install and remove this clamp using appropriate T-slot bolts and a calibrated torque wrench; the fastener torque value is specified in the technical data for this part. Ensure the machine table is clear of power and the spindle is stopped before adjusting any workholding setup. Inspect the clamp body and jaw for wear or damage before each use. Follow your shop safety procedures and applicable machine tool standards when setting up workholding fixtures.
