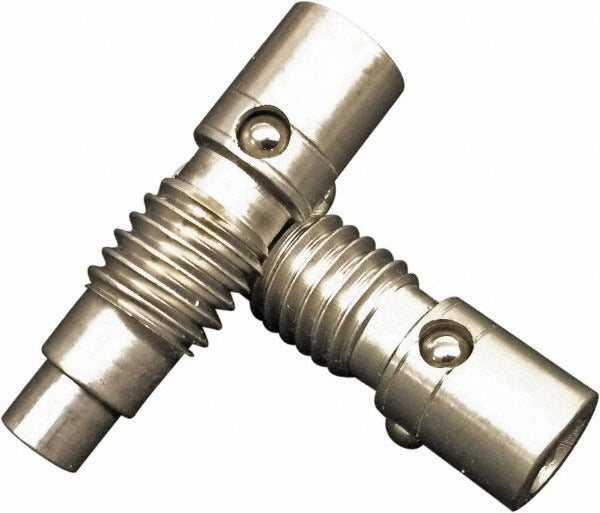

Mitee-bite 11500 Positioning Clamping Pin 1/2-13 Heavy Duty

Product Description

The MITEE-BITE 11500 is a stainless steel positioning and clamping pin designed for use with 1/2-13 fastener threads in heavy-duty workholding applications. Part of the Heavy Duty HRT series, this pin provides precise part location and secure clamping force in machining and fixturing setups. It measures 1 inch in length, 0.5 inches in width, and 1.75 inches in height, and weighs 0.06 pounds. Machinists, toolmakers, and fixture builders install this component in production and prototype environments where repeatable positioning accuracy is required.

This pin is suited for use in heavy-duty fixture plates, machining centers, and workholding assemblies that use 1/2-13 threaded screws as the actuation mechanism. It is appropriate for both production shop and toolroom environments where rigid, repeatable clamping is needed without complex setups. The HRT series is built for applications that demand higher clamping loads than standard-duty alternatives.

Key Features

• Compatible with 1/2-13 threaded screws for direct integration into existing fixturing hardware
• Heavy Duty HRT series construction handles higher clamping loads in demanding machining environments
• Stainless steel material provides corrosion resistance and durability in shop conditions
• Compact form factor: 1 inch length, 0.5 inches width, 1.75 inches height
• Single-piece package suitable for replacement or incremental fixture builds

Compatibility

Designed for use with 1/2-13 threaded screw systems in Heavy Duty HRT series workholding and fixturing assemblies.

Installation Notes

Installation is typically performed by machinists or toolmakers during fixture assembly or maintenance. Ensure the mating threaded components are clean and free of debris before seating the pin. De-energize or lock out any associated machine or hydraulic clamping system before servicing fixture components. Follow applicable shop safety and machine guarding standards during installation.
