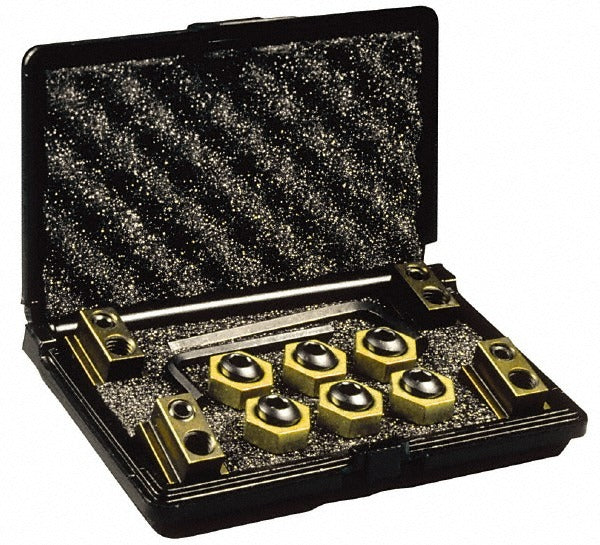

Mitee-bite 10642 T-slot Fixture Clamp Set 12 Pc Brass

Product Description

The MITEE-BITE 10642 is a 12-piece T-slot fixture clamp set designed to secure workpieces on machining center tables and milling fixtures. The set uses a 3/8-16 stud thread and fits 1/2-inch T-slots, with a T-slot nut width of 0.25 inches and step block widths of 0.75 inches. All hardware is brass construction, which resists galling and corrosion during repeated use. Machinists and toolroom technicians use this set to achieve fast, repeatable workholding without the setup time associated with conventional strap clamps. The complete kit ships ready to install with no additional hardware required.

This set is suited for horizontal and vertical machining centers, milling machines, and fixture plates that accept 1/2-inch T-slots. The included Mitee-Bite fixture clamps are commonly used in short-run and production machining environments where quick changeover and consistent clamping force matter. The 3/8-16 stud thread is a standard size found on a wide range of workholding accessories, making the components compatible with many existing setups.

Key Features

• 12-piece set includes 6 Mitee-Bite fixture clamps, 4 Mitee-Bite T-nuts, and 2 hex keys
• Fits 1/2-inch T-slots with a 0.25-inch T-slot nut width
• 3/8-16 stud thread size matches common workholding hardware
• Brass construction resists galling and corrosion
• Step block width of 0.75 inches provides a low-profile clamping footprint
• Complete kit with hex keys included — no additional tooling required for basic installation

Compatibility

Designed for use with machining tables and fixture plates that accept 1/2-inch T-slots and 3/8-16 stud thread workholding hardware.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and lock out the machine spindle before placing or adjusting clamps on the table. Seat T-nuts fully into the T-slot channel before tightening studs to avoid nut rotation or slot damage. Do not overtighten — use the included hex keys and apply clamping force appropriate to the workpiece material and operation.
