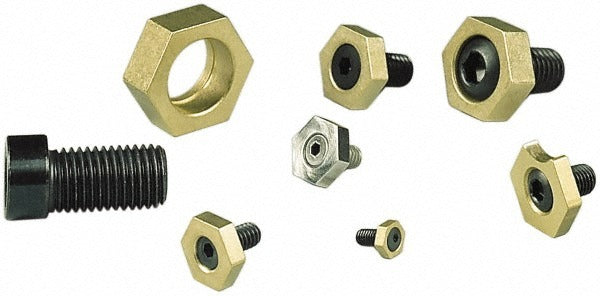

Mitee-bite 10586 Hex Clamp Washer 13/16 in Brass

Product Description

The MITEE-BITE 10586 is a hex-shaped clamp washer machined from brass, designed for use in clamping and fastening applications where secure component retention and corrosion resistance are required. Measuring 13/16 inches across with an overall height of 1/4 inch, this compact washer distributes clamping load evenly across the hex profile. Its brass construction provides natural resistance to oxidation and is well suited for environments where steel hardware is prone to rust or galvanic issues. Machinists, millwrights, and fixture builders commonly use hex clamp washers in precision workholding setups.

This washer is appropriate for light industrial, tooling, and fixture applications where a hex-profile clamp washer is specified. Its small form factor and single-piece packaging make it a practical replacement or spare for benchtop machining setups, jig components, and modular fixturing systems. The brass material is compatible with a range of fastener systems and is suitable for both ferrous and non-ferrous workpiece contact.

Key Features

• Hex washer profile provides positive orientation and even load distribution
• Brass construction offers corrosion resistance and non-sparking properties
• 13/16 inch diameter suits common clamping hardware configurations
• 1/4 inch overall height keeps a low profile in tight fixture assemblies
• Lightweight at 0.03 pounds for applications where mass is a consideration

Compatibility

Designed as an OEM-style replacement or supplemental component for hex clamp washer applications in standard fixturing and workholding assemblies.

Installation Notes

Installation is performed by machinists or tooling technicians as part of fixture assembly or workholding setup. Ensure the mating fastener and clamping stud are de-energized and the machine is powered down before servicing any fixturing component. Use calibrated torque tools appropriate to the fastener size to avoid deforming the brass washer. Follow the equipment manufacturer guidelines for clamping force specifications.
