Mitee-bite 10422 Symmetrical Hex Clamp Brass 2-pack

Product Description

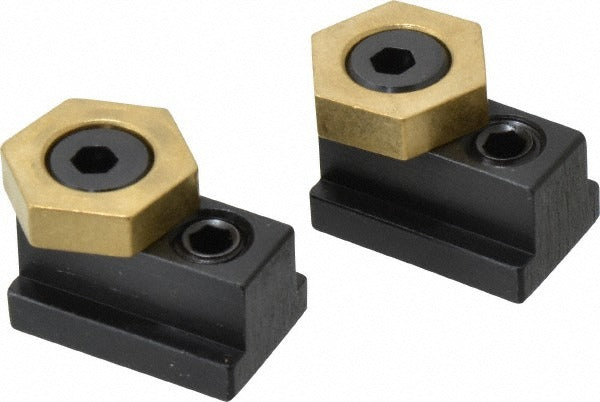

The MITEE-BITE 10422 is a symmetrical hex clamp designed for use in T-slot fixturing applications common in machining, tooling, and workholding setups. Built with a brass hex head measuring 13/16 inch across and standing 0.25 inches tall, this clamp threads onto a 3/8-16 stud and seats into a 1/2 inch T-slot. It delivers up to 2,000 pounds of holding force when torqued to the specified 20.8 ft/lb value. Each package contains two clamps. Machinists and tooling technicians rely on this style of clamp for repeatable, low-profile workholding on milling tables and fixture plates.

The 10422 is suited for machine shop environments where T-slot tables, fixture plates, and modular workholding systems are in use. The symmetrical hex geometry allows the clamp to engage the T-slot from either orientation, simplifying setup and reducing positioning time. The brass hex head resists galling against mating surfaces while maintaining dimensional consistency under repeated torque cycles. The 3/4 inch thread engagement length provides stable stud retention during clamping operations. This clamp is appropriate for both prototype fixturing and production workholding where consistent clamping force is required.

Key Features

• Symmetrical hex design allows engagement from either orientation in the T-slot
• Brass hex head resists galling on mating fixture surfaces
• 2,000 lb holding force at 20.8 ft/lb torque
• Fits 1/2 inch T-slots with a 3/8-16 stud thread
• Low-profile 0.25 inch hex height for clearance-sensitive setups
• Sold as a 2-clamp package per order unit

Compatibility

Designed for use with standard 1/2 inch T-slot tables, fixture plates, and modular workholding systems that accept a 3/8-16 stud thread.

Installation Notes

Installation is performed by machinists or tooling technicians during workholding setup. Power down and secure the machine before adjusting any fixturing components on the table. Thread the stud into the T-nut or T-slot to the specified engagement depth before seating the hex clamp and torquing to 20.8 ft/lb using a calibrated torque wrench. Do not exceed the rated torque value, as over-torquing can damage the brass hex head or the T-slot.
