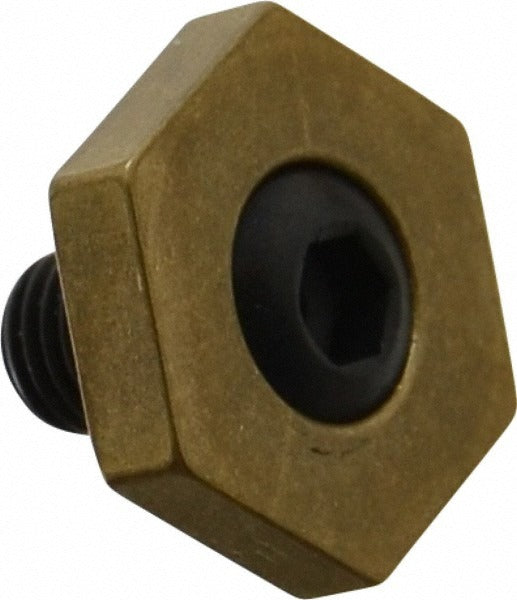

Mitee-bite 10205 Symmetrical Hex Clamp 13/16 in Brass 12 Pack

Product Description

The MITEE-BITE 10205 is a symmetrical hex clamp designed for precision workholding applications in machining and fabrication environments. The clamp features a 13/16-inch brass hex head paired with a hardened steel stud on a 5/16-24 thread. It delivers up to 800 pounds of holding force with a maximum torque rating of 8.3 ft/lb. The brass hex head provides corrosion resistance and a secure seating surface, while the hardened steel stud ensures thread durability under repeated clamping cycles. This package includes 12 clamps, making it suitable for setups requiring multiple clamping points across a single fixture or tombstone.

The MITEE-BITE 10205 is used in CNC machining centers, milling fixtures, and custom workholding setups where low-profile clamping is required. The symmetrical hex geometry allows the clamp to be seated from either side, reducing setup time and increasing fixture flexibility. The 3/16-inch hex height keeps the clamp profile minimal, making it well suited for shallow workpieces or tight toolpath clearances. Machinists, tool and die makers, and fixture builders are the primary installers of this component.

Key Features

• 800-pound holding force for secure workpiece retention during machining
• Symmetrical hex design allows installation from either orientation
• Brass hex head resists corrosion and seats cleanly against fixture plates
• Hardened steel stud maintains thread integrity under repeated torque cycles
• Low-profile 3/16-inch hex height minimizes interference with cutting tools
• Package of 12 clamps supports multi-point fixture builds

Compatibility

Designed for use in standard T-slot fixture plates and tombstones that accept 5/16-24 stud thread workholding components.

Installation Notes

Installation is performed by machinists or fixture builders using standard hex wrenches sized for the 13/16-inch hex head. Torque the stud to the rated 8.3 ft/lb maximum using a calibrated torque wrench — do not exceed this value, as over-torquing can damage the brass hex head or fixture plate threads. Ensure the fixture plate threads are clean and free of chips before installation. Confirm workpiece is fully seated and stable before initiating any cutting operation.
