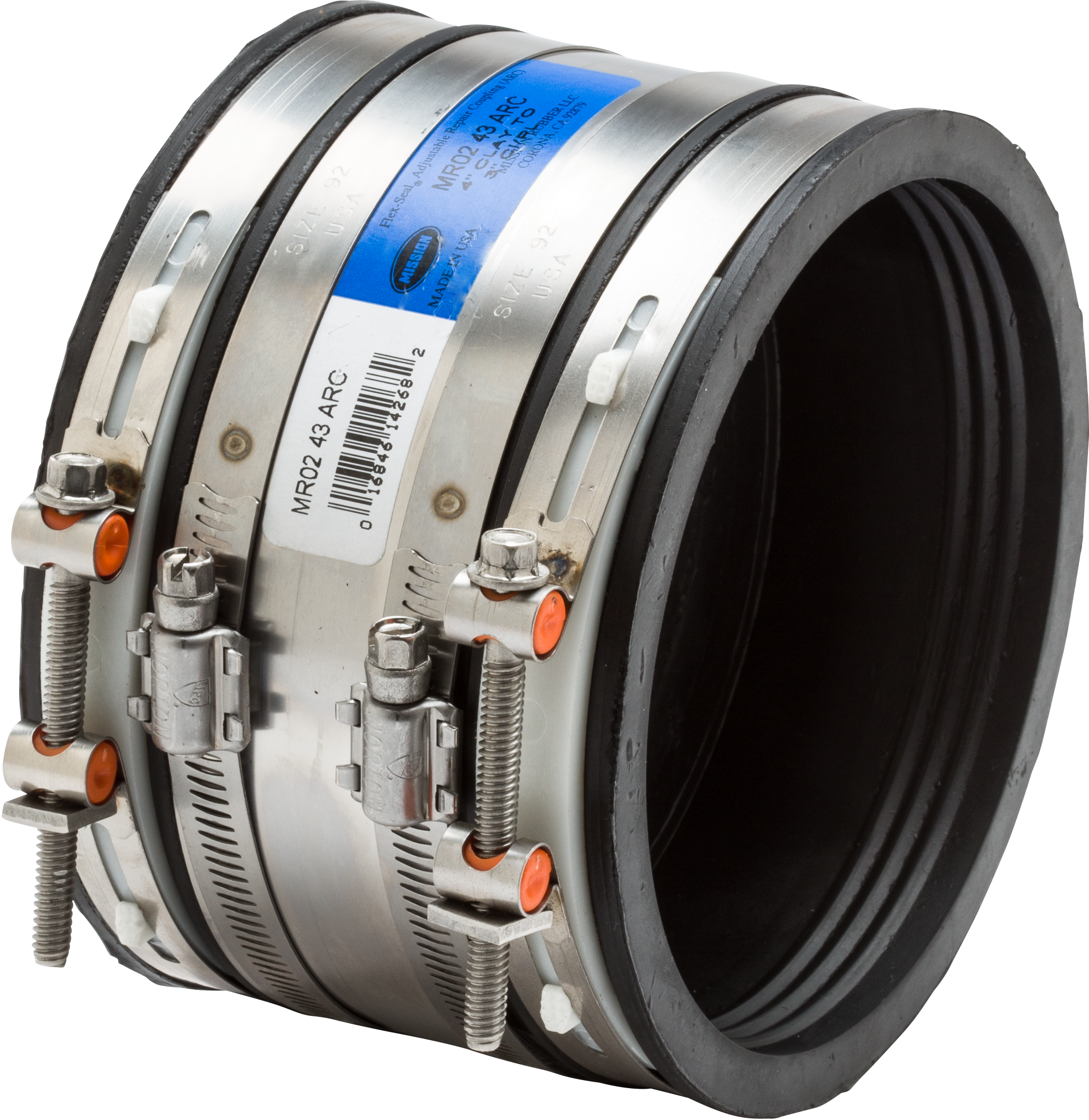

Mission Rubber MR02 46 ARC Flex-Seal® Arc Shielded Adjustable Sewer Repair Couplings

Product Description

The MISSION RUBBER MR02 46 ARC Flex-Seal® Arc Shielded Adjustable Sewer Repair Couplings connect Clay pipe to Cast Iron or Schedule 40 Plastic pipe. These couplings are designed for non-pressure, gravity flow applications and are recommended for underground installations. They are easy to install and reuse, with custom large diameter sizes available.

• Easy to install and reuse.
• Increased band tension secures pipe ends, forming a watertight, root-proof seal, impervious to infiltration and exfiltration.
• Thick, stainless steel shield controls load bearing between coupling and pipe surface, opposing shear forces while maintaining pipe alignment.

Product Highlights

Shielded, high-performance sewer repair couplings for connecting different types of pipes in gravity flow applications. Feature stainless steel clamps and shield, and a molded elastomeric sealing gasket.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: MR02 46 ARC

Technical Specifications

• Clamps: Surgical Grade 316 Stainless Steel, Nut & Bolt (2 or 4)
• Shield: Heavy-Duty, 301 Series Stainless Steel ( 6 / 500 " thick) with 300 Series Stainless Steel, Worm Drive Clamps (2)
• Gasket: Molded, One-Piece, Elastomeric Sealing Gasket
• Connects: 4" CL to 6" CI, PL
• A-MIN (IN): 5
• A-MAX (IN): 5.4
• B-MIN (IN): 6.27
• B-MAX (IN): 6.62
• C-WIDTH (IN): 6
