MISCELLANEOUS PRODUCT ES110 Electric Strike 12/24VDC

Product Description

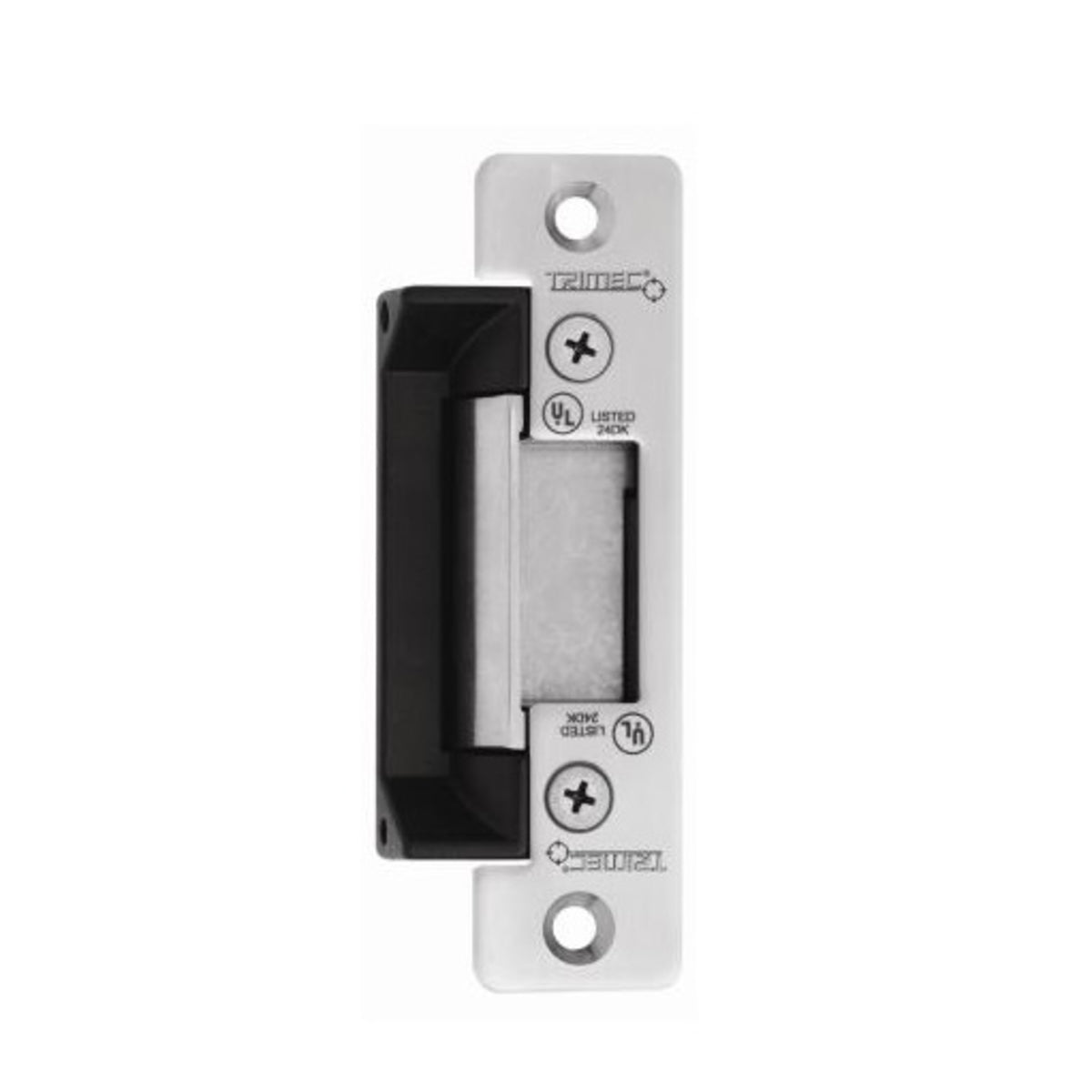

The MISCELLANEOUS PRODUCT ES110 is an electric strike made for access control systems. This device has a cast aluminum body and a stainless steel striker. It operates with various locks and can be set for fail-safe or fail-secure configurations. Ideal for high-traffic zones and compatible with both open in and open out doors, the ES110 withstands a static strength of six hundred eighty kilograms. It has been tested for up to one million cycles, ensuring long-term reliability.

• Features a cast aluminum body and stainless steel striker.
• Suitable for access control and various lock types.
• Rated for high durability and continuous use.

Product Highlights

The ES110 is designed for efficient and reliable performance in access control applications, providing flexibility in security configurations.

Product Information

Standard Information

• Manufacturer Part Number: ES110
• Product Type: Electric Strike

Technical Specifications

• Voltage: 12 or 24 Vdc
• Current: 243 mA @ 12 Vdc - 187 mA @ 24 Vdc
• Holding Force: 680 kg
• Endurance: Cycle tested to 1,000,000 operations
• Operating Temperature: -20°C to +60°C
• Body Material: Cast Aluminum
• Keeper Material: Stainless Steel
• Compatible Door Lock Type: Latch Lock, Mortise
