Miscellaneous Product BV5030

Product Description

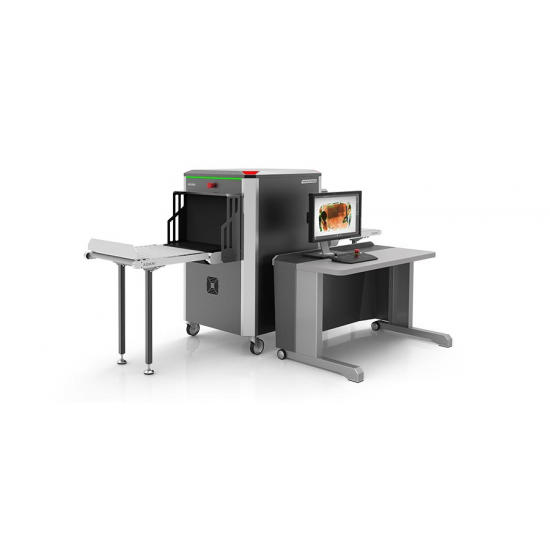

The Miscellaneous Product BV5030 is a single-view X-ray baggage inspection system designed for automatic detection of unauthorized items. This system is effective for inspecting a range of baggage including hand luggage and parcels. It is widely used in various sectors such as law enforcement, customs, hotels, and educational institutions. The BV5030 is essential for identifying weapons, explosives, and drugs.

• Modular design for simplified assembly and maintenance.
• Customizable casing colors.
• Can include AI software for automatic threat detection.

Product Highlights

The BV5030 improves security by providing reliable detection of potentially harmful items in various environments.

Product Information

Standard Information

• Brand: Miscellaneous Product
• MPN: BV5030

Technical Specifications

• Anode Voltage: 160 kV
• Beam Direction: Diagonally upward
• Detective Ability for Copper Wire: 0.08 mm (40 AWG)
• Penetration on Steel: 36 mm guaranteed, 37 mm typical
• Line Voltage: 230 VAC ± 10% / 120 VAC ± 5%
• Tunnel Width: 520 mm
• Tunnel Height: 320 mm
