Minerallac MCACS50 Cable Support Bracket (4-Cable, Pack 100)

Product Description

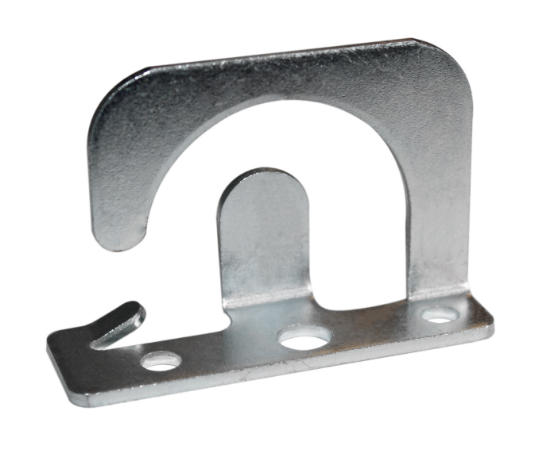

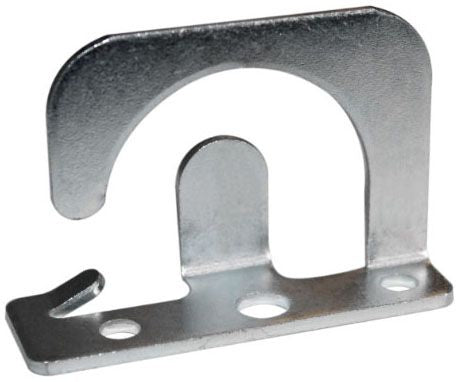

The Minerallac MCACS50 is a cable support bracket for MC/AC and Super Neutral cables, accommodating 14-3 through 10-2 (0.430 - 0.560 inch O.D.) and holding up to four cables. The electro-galvanized steel bracket mounts using two 3/16 inch holes and can be fastened to wood or metal studs. It also aligns 1 inch EMT to standard 2-1/8 inch deep electrical box knockouts for cable routing and support in electrical installations.

• Fits 14-3 through 10-2 MC/AC or Super Neutral cables (0.430 - 0.560 inch O.D.); holds up to 4 cables
• Electro-galvanized (zinc plated) steel construction with two 3/16 inch mounting holes for attachment to wood or metal studs
• Aligns 1 inch EMT to 2-1/8 inch deep electrical box knockouts for conduit and cable alignment

Product Highlights

Supports up to four MC/AC or Super Neutral cables; electro-galvanized steel; two 3/16 inch mounting holes; aligns 1 inch EMT to 2-1/8 inch box knockouts.

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: MCACS50
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: MCACS50
• Brand Name: Minerallac
• Sub-Brand: Blackclaw
• Product Type: Cable Support Bracket
• Product Status: Active
• Number Of Cables: 4
• Material: Steel
• Finish: Electro-Galvanized (Zinc Plated)
• Cable Type Compatibility: MC/AC; Super Neutral
• Cable Outer Diameter Range: 0.430 - 0.560 inch
• Mounting Holes: 2 x 3/16 inch
• Mounting Method: Screws onto wood or metal studs
• EMT Compatibility: 1 inch EMT for 2-1/8 inch deep electrical box
• UPC: 78461004586
• GTIN: 784610045865
• UNSPSC: 39121702
• Country of Origin: CHINA
• Packaging: Corrugated
• Package Quantity: 100
• Master Carton Quantity: 100
• Prop65: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and reproductive harm.
