Minerallac FCWS6 Conduit/Wire Support Flex (8 in x 2 in)

Product Description

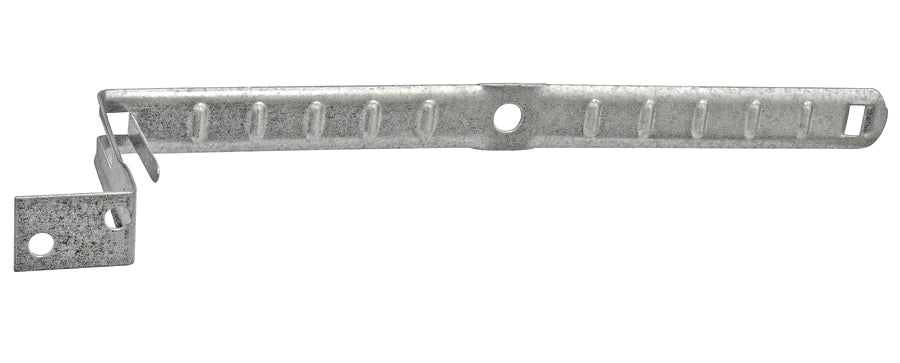

Minerallac FCWS6 is a stud wall multiple flex conduit and wire support designed to secure flexible conduit and wiring to wood or metal studs. Constructed of pre-galvanized steel with a zinc-plated finish, the FCWS6 mounts via screw-on fastener using a single 0.25 in hole. It measures approximately 2 in length by 8 in width by 0.6 in height, is 0.06 in thick, and provides a minimum 1-1/4 in clearance for multiple flex conduits. It functions as a cable support strap for stud wall electrical installations in residential and commercial wiring.

• Pre-galvanized steel construction with zinc-plated finish for corrosion resistance
• Screw-on mounting to wood or metal studs via single 0.25 in hole
• Dimensions: 2.00 in (L) x 8.00 in (W) x 0.60 in (H); 0.06 in thickness; 1-1/4 in minimum clearance
• Stud wall cable support strap for multiple flex conduits

Product Highlights

Stud wall cable support strap for multiple flex conduits; pre-galvanized steel; single-hole screw mounting; 2 x 8 in size with 1-1/4 in clearance

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: FCWS6
• Country of Origin: USA

Technical Specifications

• Brand: Minerallac
• MPN: FCWS6
• Product Name: Conduit/Wire Support (Flex)
• Type: Cable Support Strap
• Material: Pre-galvanized steel
• Finish: Zinc plated
• Mounting Type: Screw-on / Via fastener
• Mounting Holes: 1
• Mounting Hole O.C.: 0.25 in (reported; likely hole diameter — see note in removed_specifications)
• Number of Holes: 1
• Length: 2.000 in
• Width: 8.000 in
• Height: 0.600 in
• Thickness: 0.06 in
• Minimum Clearance: 1-1/4 in
• Dimensions: 2 in x 8 in x 0.6 in
• Country of Origin: USA
• UPC: 78461000788
• Compliance - Buy America Act: Yes
• Compliance - Buy American Act: Yes
• Compliance - RoHS: Yes
• Prop65 Compliance: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
