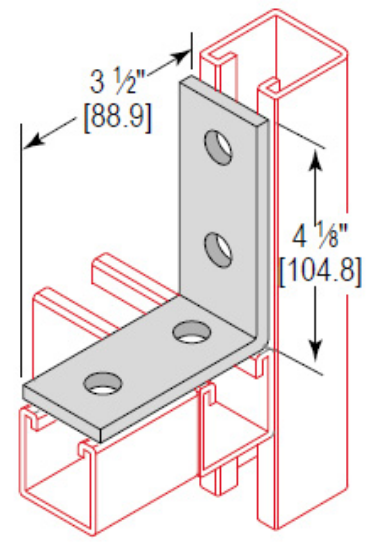

Minerallac CA4H3WEG Angle Fitting 4 Holes, 4-1/8 in L x 3-1/2 in W

Product Description

The Minerallac CA4H3WEG is a 4-hole, 3-way corner angle fitting designed for use with strut systems. This fitting features a standard zinc electroplate finish for corrosion resistance. The holes are 9/16 inch diameter, with a 13/16 inch center-to-edge spacing on 1-7/8 inch centers. Its robust construction and specific hole configuration make it suitable for creating complex structural configurations within electrical and mechanical support systems.

• Holes are 13/16 inch center to edge on 1-7/8 inch centers
• Holes are 9/16 inch in diameter
• Features a standard zinc electroplate finish for corrosion resistance

Product Highlights

This 4-hole, 3-way corner angle fitting is designed for strut systems, enabling complex structural configurations with its robust construction and specific hole pattern.

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: CA4H3WEG
• Country of Origin: USA

Technical Specifications

• Brand: Minerallac
• Finish: Electro-Plated Zinc
• Number of Holes: 4
• Suitable For Use With: Strut Systems
• Manufacturer Part Number: CA4H3WEG
• Material: Steel
• Type: Angular Fitting
• Mounting: Nut and Bolt
• Mounting Holes Diameter: 9/16 inch
• Sub Brand: Strut Fittings
