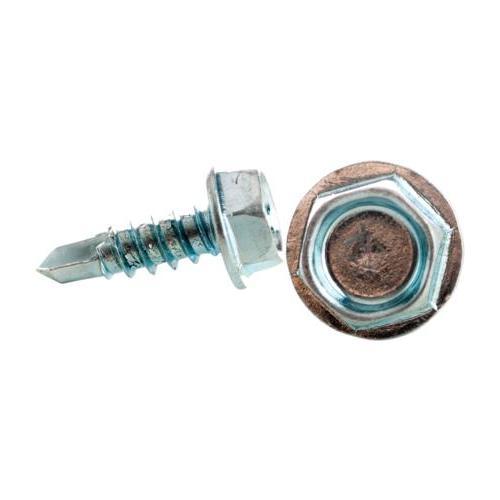

Minerallac 78812J 8-18 x 3/4 in. Tek Screws, Hex Washer Head, Zinc Plated

Product Description

The Minerallac 78812J is a self-drilling Tek Screw with a #8-18 thread and an overall length of 3/4 inches. It features a hex washer head, steel construction, and a zinc-plated finish. This screw has a drill point and is designed with class BSD/spaced external threads.

• Straight shank fastener with spaced external threads
• Features a drill point which drills its own hole
• 1/4 in drive

Product Highlights

The Minerallac 78812J Tek Screw is ideal for applications requiring self-drilling fasteners. Its hex washer head ensures a secure fit, while the zinc plating provides corrosion resistance.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 78812J
• Country of Origin: Taiwan

Technical Specifications

• UNSPSC: 31161528
• Finish: Zinc Plated
• Material: Steel
• Diameter - Thread Size: #8-18
• Drive Size: 1/4
• Head Size: 0.103 in H x 0.247 in W
• Head Type: Hex Washer
• Measurement System: Imperial
• Overall Length: 3/4
• Point Size: #2
• Point Type: Drill
• Thread Type: Class BSD/Spaced External
• Brand: Minerallac
• Manufacturer: Minerallac Company
• Size: #8
• Type: Tek Screws
• Sub Brand: Cully
• Head Width: 0.247" IN
• Length: 3/4 Inch
