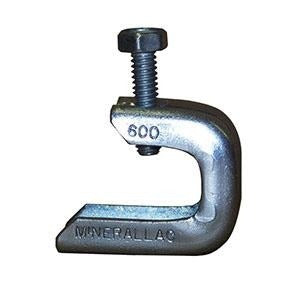

Minerallac 600 beam clamp 1/4-20 rod

Product Description

The Minerallac 600 beam clamp is designed for hanging conduit and cable from structural supports. Constructed from steel with a zinc-plated finish, it features a 1/4"-20 screw and accommodates a maximum jaw capacity of 1/2". It is suitable for use with conduit hangers #0 to #5, bridle rings, and threaded rods, with a load capacity of 75 lb.

• Used to hang conduit and cable from building's structural support
• Case hardened steel set screw tapped at an angle locks on beam
• Tapped for rods bottom and back

Product Highlights

Steel beam clamp with zinc-plated finish and 75 lb load capacity.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 600
• Country of Origin: USA

Technical Specifications

• Application: Conduit Hangers #0 to #5, Bridle Rings and Threaded Rod
• Finish: Zinc Plated
• Load Capacity: 75 Lb
• Manufacturer Name: Minerallac
• Material: Steel
• Maximum Jaw Capacity: 1/2 Inch
• Product UPC: 78461024600
• Screw Size: 1/4 Inch-20 TPI x 1 Inch L
• Supplied With Screw: Yes
• Type: Universal
• Manufacturer Part Number: 600
• GTIN: 00784610246002
• Country Of Origin: United States of America
• Bolt Size: 1/4-20 x 1 Inch
• Item Name: Set Screw Beam Clamp
• Rod Size: 1/4-20
• Tapped Holes: 1/4"-20 Bottom & Back
• Gauge: 0.089"
• Brand: Minerallac
• Sub Brand: Minerallac Traditional
• Length: 1.68 Inch
• Width: 0.87 in
