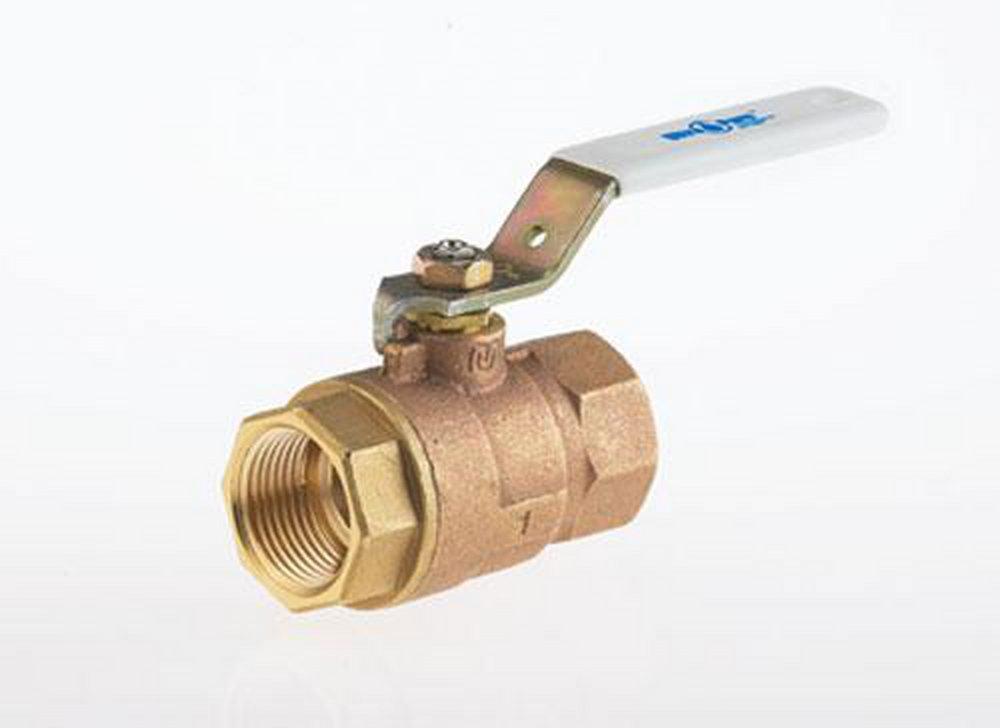

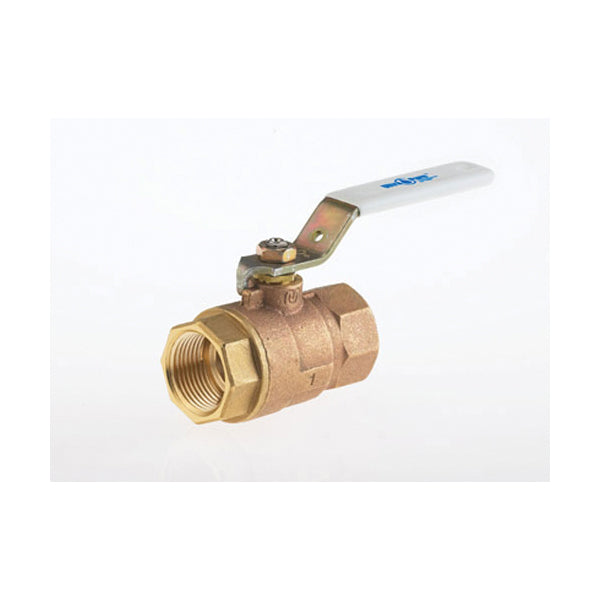

Milwaukee Valve UPBA-100A100 UPBA100 1 in. Cast Bronze Standard Port Threaded 600# Ball Valve

Product Description

The Milwaukee Valve UPBA-100A100 is a two-piece ball valve designed for potable water applications. It has a nominal size of one inch and features a standard port with threaded ends, suitable for various plumbing tasks. This valve operates under a pressure rating of six hundred psig, ensuring reliable performance in demanding environments.

• Bubble-tight shutoff
• Quarter turn operation
• Low lead valve for potable water

Product Highlights

This valve is ideal for effective flow control and is compliant with lead-free standards for safe drinking water management.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• MPN: UPBA-100A100

Technical Specifications

• Body Material: Cast Bronze
• Nominal Size: 1 in
• Pressure Rating: 600 psig
• Orifice Size: 0.88 in
• Inlet to Outlet Length: 3.17 in
• Top to Inlet Center: 2-1/4 in
• Trim Material: Brass Stem and RPTFE Seat
• Series: UPBA100
