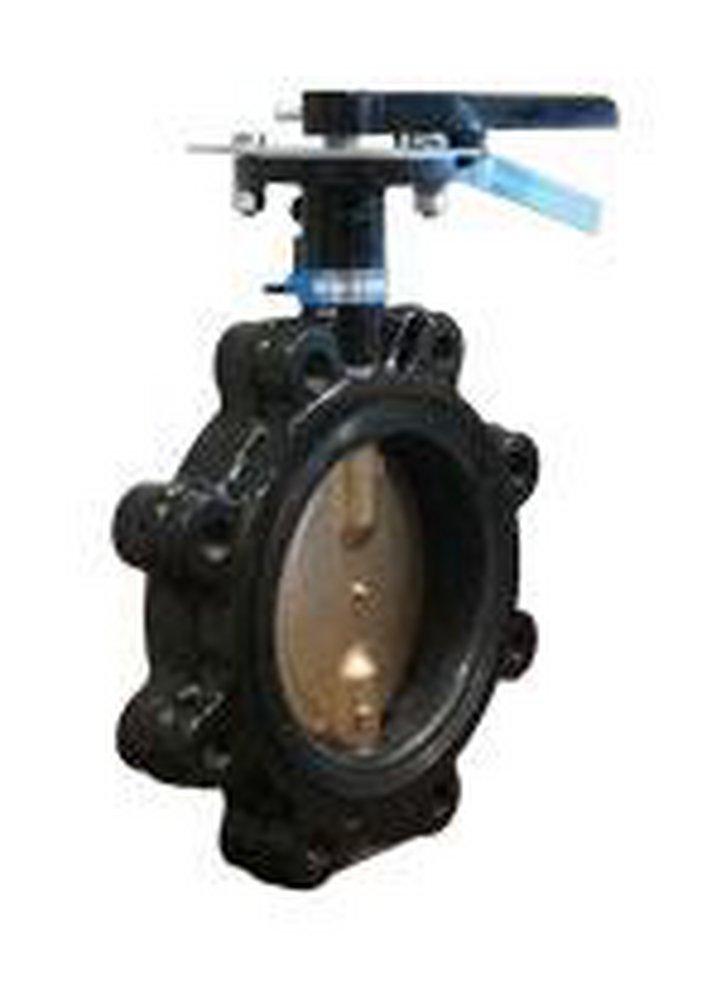

Milwaukee Valve ML234EDN ML Series 4 in Ductile Iron EPDM Lever Handle Butterfly Valve

Product Description

The Milwaukee Valve ML234EDN is designed for efficient flow control. This butterfly valve features a lug style, made from ductile iron, providing durability in various applications.

• 4 inch nominal size
• Lever handle actuator for easy operation
• Bubble-tight shut off

Product Highlights

This valve is suitable for diverse industrial tasks, including water supply and waste management systems. It offers reliable performance with a maximum pressure rating of 200 psi non-shock. The valve's soft goods are EPDM, ensuring longevity.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: ML234EDN

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: 316 Stainless Steel
• Dimensions: 23.38 inches height
• Nominal Size: 4 inches
• Series: ML Series
• Softgoods Material: EPDM
• Standards/Approvals: ASTM A216 Body, API-609, MSS SP-67 Type 1, ABS Type Approved Cat A CFR-46
• Stem & Pin Material: 416 Stainless Steel (Stem) / Stainless Steel (Roll Pin)
• Top to Inlet Center: 7 inches
• Type: Lug Style
