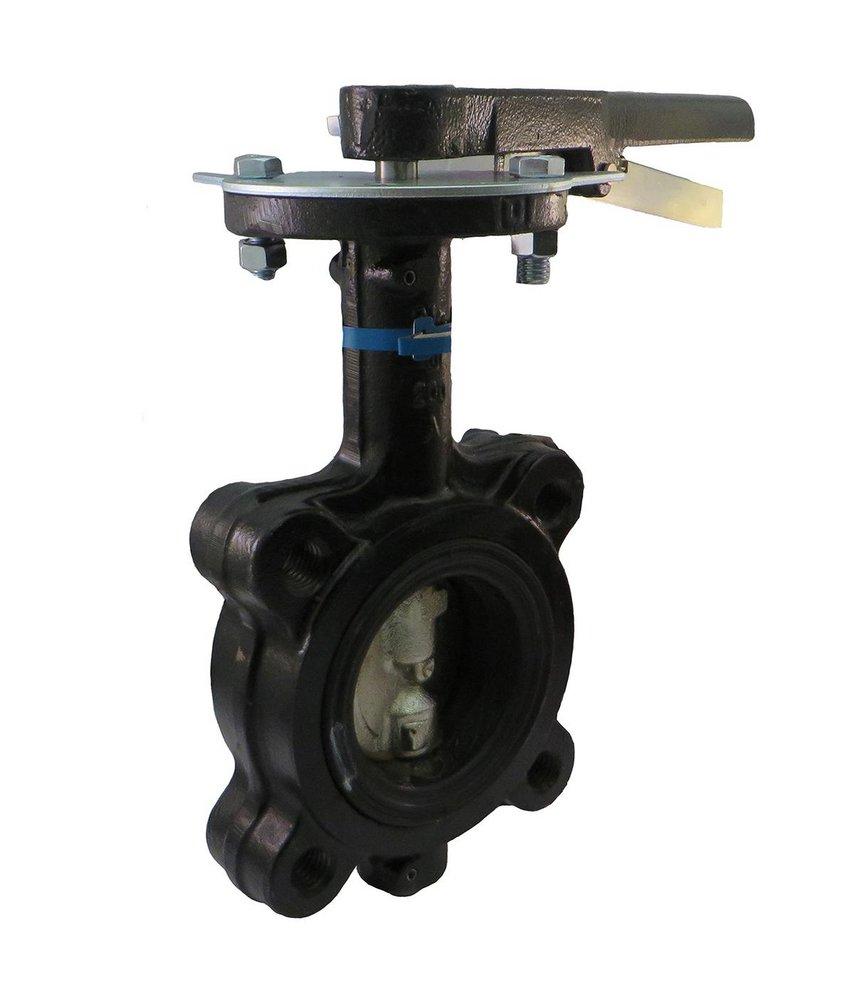

Milwaukee Valve ML223BDN ML Series 4 in Cast Iron Buna-N Lever Handle Butterfly Valve

Product Description

The Milwaukee Valve ML223BDN is a butterfly valve designed for various applications. This valve features a four-inch nominal size, a cast iron body, and Buna-N soft goods. The lever handle actuator provides ease of operation and control.

• Cast iron body for durability and performance.
• Bubble-tight shut-off design for reliable sealing.
• Approved for dead-end service up to two hundred psi.

Product Highlights

This butterfly valve is suitable for both domestic and commercial use, making it a versatile choice for HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: ML223BDN

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Dimensions: 23.38 inches H
• Disc Material: Aluminum Bronze
• Domestic/Import: Domestic
• Nominal Size: 4 inches
• Series: ML Series
• Softgoods Material: Buna-N
• Standards/Approvals: ASTM A126 Class B Body, ASTM B148 Disc, API-609, MSS SP-67 Type 1
• Stem and Pin Material: 416 Stainless Steel (Stem), Alloy Steel (Stem Pin)
• Top to Inlet Center: 7 inches
• Type: Lug Style
