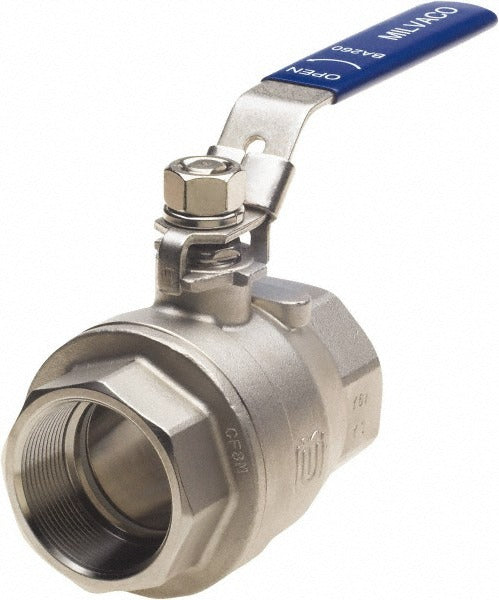

Milwaukee Valve BA260-200 Ball Valve 2 in Full Port Ss

Product Description

The MILWAUKEE VALVE BA260-200 is a 2-piece, full-port stainless steel manual ball valve designed for 2-inch threaded pipe connections. Built from 316-grade stainless steel body and trim, it delivers reliable shutoff in demanding fluid and gas service applications. The locking lever handle prevents accidental operation in vibration-prone or high-traffic installations. PTFE seats and seals provide chemical resistance and low-friction operation across a wide range of media. Licensed plumbers, pipefitters, and mechanical contractors install this valve in commercial and industrial piping systems where corrosion resistance and positive shutoff are required.

This valve is rated for use with water, oil, and gas service, making it a versatile choice across plumbing, HVAC, and industrial process piping. The full-port design maintains full pipe bore through the valve body, minimizing pressure drop and allowing unrestricted flow. The threaded end connections conform to standard 2-inch pipe thread sizing, simplifying installation into existing threaded systems. It is suited for both new construction and retrofit applications in commercial and light industrial environments.

Key Features

• 316 stainless steel body and trim for superior corrosion resistance
• Full-port design maintains full pipe bore and minimizes pressure drop
• Locking lever handle prevents inadvertent valve operation
• PTFE and reinforced PTFE seats and seals for chemical compatibility
• 2-piece body construction for ease of maintenance and inspection
• Compatible with water, oil, and gas service

Compatibility

Designed as an OEM-style replacement or direct installation valve for 2-inch threaded pipe systems handling water, oil, or gas in commercial and industrial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and ASME B31 piping standards. Shut off system pressure and drain the line before removing or installing any valve. Apply thread sealant or PTFE tape to male threads per standard practice before making up the connection. Verify valve handle orientation and flow direction after installation before returning the system to service.
