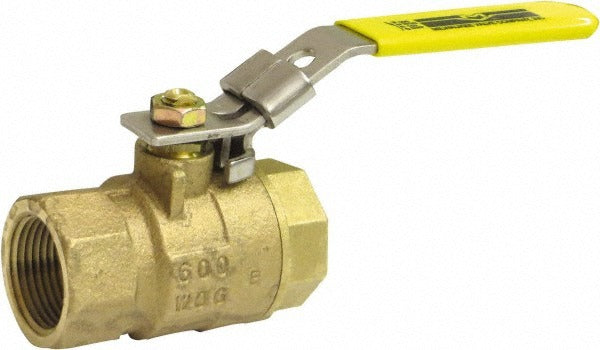

Milwaukee Valve BA100ELDA 12 Ball Valve 0.5 Inch Full Port

Product Description

The MILWAUKEE VALVE BA100ELDA 12 is a standard 2-piece manual ball valve designed for flow isolation in compressed air and water systems. Built with a bronze body and brass trim, it features a full-port design that minimizes pressure drop across the valve. The locking lever handle provides a visual open/closed indicator and resists accidental actuation in service environments. Rated to 125 psi maximum working pressure, this valve is sized for 0.5-inch pipe and connects via threaded end connections. Reinforced PTFE seats and seals deliver long service life under repeated cycling. Licensed plumbers and pipefitters typically install this valve in commercial and residential mechanical systems.

This valve is suited for compressed air distribution lines and water piping where a reliable shutoff is required. The full-port bore reduces flow restriction, making it a practical choice for systems where pressure drop is a concern. The threaded end connection is compatible with standard 0.5-inch pipe threads, allowing straightforward installation into existing piping runs. The yellow locking lever makes the valve easy to identify and lock in position during maintenance or lockout/tagout procedures.

Key Features

• 2-piece bronze body construction for durability in compressed air and water service
• Full-port design minimizes flow restriction and pressure drop
• Locking lever handle supports lockout/tagout compliance
• Reinforced PTFE seats and seals for long cycle life
• Threaded end connections for straightforward installation on 0.5-inch pipe
• Rated to 125 psi maximum working pressure

Compatibility

Designed for use with compressed air and water systems requiring a 0.5-inch threaded full-port ball valve shutoff.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes. Depressurize and drain the system completely before removing or installing any valve. Apply thread sealant or tape to the pipe threads per standard practice, and avoid overtightening, which can crack the valve body. Verify that system operating pressure does not exceed the 125 psi rating after installation.
